Product Details
Place of Origin: Xi'an, Shaanxi Province, China
Brand Name: PeterTrade(PT)
Model Number: ASME B16.9 180 Degree Short Radius Elbows
Payment & Shipping Terms
Minimum Order Quantity: 1-10 Pieces
Price: negotiable
Packaging Details: Wooden Case,plywood Case,pallet Etc.
Delivery Time: about 15-45 days, accordingly
Payment Terms: D/A, T/T, L/C,D/P
Supply Ability: 100-200 Ton/Tons Per Month
Product Name: |
ASME B16.9 180 Degree Short Radius Elbows |
Materials: |
ASTM A420 WPL6 WPL9 WPL8 WPL3 |
Wall Thickness: |
Sch5s, 10s, 20s, Sch10, Sch20, Sch30, STD, Sch40 And Etc. |
Sizes: |
From 1'' To 24'' |
Angle: |
180 Degree |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Application: |
Oil And Gas Pipelines, Chemical Plants, Power Generation Facilities, And Refineries |
Product Name: |
ASME B16.9 180 Degree Short Radius Elbows |
Materials: |
ASTM A420 WPL6 WPL9 WPL8 WPL3 |
Wall Thickness: |
Sch5s, 10s, 20s, Sch10, Sch20, Sch30, STD, Sch40 And Etc. |
Sizes: |
From 1'' To 24'' |
Angle: |
180 Degree |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Application: |
Oil And Gas Pipelines, Chemical Plants, Power Generation Facilities, And Refineries |

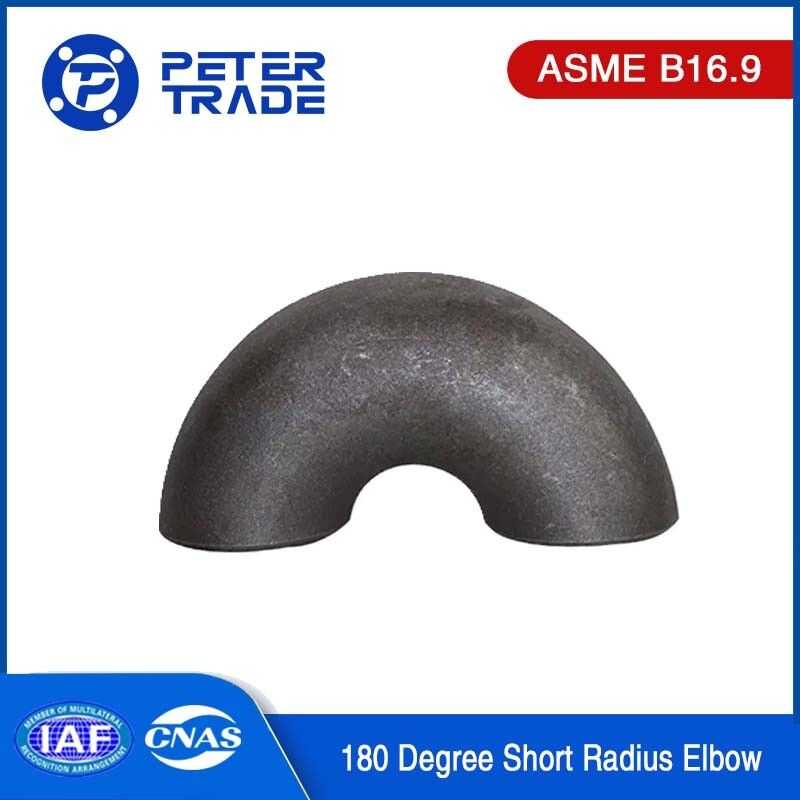

ASME B16.9 ASTM A420 WPL6 Carbon Steel Short Radius 180 Degree Butt Weld/Seamless Elbow Bend in Piping Systems
Product Introduction:
ASME B16.9 is a standard published by the American Society of Mechanical Engineers (ASME) that covers factory-made wrought steel butt-welding fittings, including elbows. This standard provides specifications for dimensions, tolerances, materials, and marking requirements for various types of pipe fittings, including 180-degree short radius elbows.
ASME B16.9 180 Degree Short Radius Seamless Elbows are a type of pipe fitting used to change the direction of flow in a piping system by 180 degrees. These elbows are designed to make a sharp turn of 180 degrees, allowing for a complete reversal of the flow direction.
The choice of material for a 180-degree pipe elbow depends on various factors, including the application requirements and environmental conditions. Common materials used for manufacturing pipe elbows include stainless steel, PVC (polyvinyl chloride), or carbon steel. Each material has its own advantages and suitability for specific applications.
ASME B16.9 180 Degree Short Radius Seamless Elbows are available in the market as a type of pipe fitting. These elbows are designed to make a sharp turn of 180 degrees in a piping system. The term "short radius" refers to the smaller radius of curvature compared to long radius elbows, resulting in a tighter turn.
Description of ASTM A420 WPL6:
ASTM A420 WPL6 is a grade of material specified in the ASTM A420 standard for pipe fittings made of wrought carbon steel and alloy steel intended for low-temperature service.
Composition: ASTM A420 WPL6 fittings are made from carbon steel or low-alloy steel with a specified chemical composition that includes elements such as carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, molybdenum, and other alloying elements.
Mechanical Properties: The mechanical properties of ASTM A420 WPL6 fittings are designed to meet specific requirements for tensile strength, yield strength, elongation, and impact toughness at low temperatures. These properties ensure the fittings can withstand the stresses and conditions encountered in low-temperature service applications.
Low-Temperature Service: ASTM A420 WPL6 fittings are specifically intended for use in environments where low temperatures are a consideration. They are suitable for applications in industries such as oil and gas, petrochemical, and cryogenic systems where the piping systems operate at temperatures below ambient levels.
Impact Testing: ASTM A420 WPL6 fittings undergo impact testing at a specified temperature (typically -45°C) to ensure they possess the necessary toughness and resistance to brittle fracture under low-temperature conditions.
Weldability: ASTM A420 WPL6 fittings are weldable using common welding methods and techniques, enabling them to be installed and integrated into piping systems effectively.
ASME B16.9 180 Degree Short Radius Butt Weld/Seamless Elbows Dimensions:
| ASME B16.9 short-radius (S/R) 180° return Dimensions | |||
| NPS | D(outer dimension) | O(Center to Center) | K(Back to Face) |
| 1″ | 33.4 | 51 | 41 |
| 1 1/4″ | 42.2 | 64 | 52 |
| 1 1/2″ | 48.3 | 76 | 62 |
| 2″ | 60.3 | 102 | 81 |
| 2 1/2″ | 73 | 127 | 100 |
| 3″ | 88.9 | 152 | 121 |
| 3 1/2″ | 101.6 | 178 | 140 |
| 4″ | 114.3 | 203 | 159 |
| 5″ | 141.3 | 254 | 197 |
| 6″ | 168.3 | 305 | 237 |
| 8″ | 219.1 | 406 | 313 |
| 10″ | 273 | 508 | 391 |
| 12″ | 323.8 | 610 | 467 |
| 14″ | 355.6 | 711 | 533 |
| 16″ | 406.4 | 813 | 610 |
| 18″ | 457 | 914 | 686 |
| 20″ | 508 | 1016 | 762 |
| 22″ | 559 | 1118 | 838 |
| 24″ | 610 | 1219 | 914 |
ASTM A420 is a standard specification for piping fittings of wrought carbon steel and alloy steel for low-temperature service. The grades under ASTM A420 specify the type of material and its chemical composition. The most commonly used grades under ASTM A420 include:
Grade WPL6: This grade is the most commonly used for low-temperature applications. It offers good impact toughness and is suitable for use in environments with low temperatures.
Grade WPL9: This grade is similar to WPL6 but with enhanced Charpy V-notch impact properties at lower temperatures. It is often used in cryogenic applications.
Grade WPL3: This grade provides excellent notch toughness and is suitable for low-temperature service applications where impact resistance is critical.
Grade WPL8: This grade is designed for applications requiring notch toughness properties at low temperatures.
These grades are specifically designed to provide adequate strength, toughness, and corrosion resistance in low-temperature environments. When selecting a grade from ASTM A420, it is essential to consider the specific requirements of the application to ensure the fitting's performance and reliability.
Directional Change: A 180 degree short radius elbow provides a complete reversal of the pipeline's direction in a single fitting. This eliminates the need for additional pipe segments or fittings to achieve the same change in direction. It simplifies the installation process, reduces material and labor costs, and minimizes the potential points of leakage associated with additional connections.
Time and Cost Savings: By eliminating the need for extra pipe segments and fittings, the use of 180 degree short radius elbows saves time and reduces installation costs. It streamlines the piping system design and simplifies the construction process, resulting in improved efficiency and cost-effectiveness.
Reduced Risk of Leakage: Every additional connection in a piping system introduces a potential point of leakage. By using a single 180-degree pipe elbow instead of multiple elbows or fittings, the number of connections and potential leakage points is minimized. This reduces the risk of leaks, enhancing the overall integrity and reliability of the pipeline.
Reduced Turbulence and Pressure Drop: Compared to using multiple elbows, a 180 degree short radius elbow offers a smoother flow path with reduced turbulence and pressure drop. The gradual and continuous change in direction provided by a single elbow minimizes flow disturbances and ensures efficient fluid flow. This can result in improved system performance, reduced energy consumption, and lower operating costs.
Space Optimization: In situations where space is limited or tight, using a 180 degree short radius elbow can help optimize the layout of the piping system. It allows for a significant directional change within a smaller footprint, making it suitable for installations where space constraints are a concern.
Maintenance and Accessibility: With fewer connections and joints, maintenance and inspection of the piping system become easier. The use of a 180 degree short radius elbow simplifies access to the pipeline for inspection, cleaning, and maintenance activities, reducing downtime and improving overall system management.
Applications of ASME B16.9 Carbon Steel 180 Degree Short Radius Elbows:
Wastewater Treatment Plants: In wastewater treatment plants, ASME B16.9 Stainless Steel 180 Degree Short Radius Elbows are used to reverse the direction of the flow, redirecting the treated water or sludge to the desired location for further processing or disposal. They are often employed in applications such as sewage treatment, sludge handling, and water reclamation processes.
Chemical Plants: Chemical processing facilities often utilize ASME B16.9 Stainless Steel 180 Degree Short Radius Elbows to change the flow direction in pipelines handling different chemicals or fluids. These elbows allow for efficient routing of pipelines, enabling the transfer of materials between different processing units or storage tanks.
Power Generation Facilities: Power plants, including thermal power plants and nuclear power plants, utilize ASME B16.9 Stainless Steel 180 Degree Short Radius Elbows in their piping systems. These elbows help redirect the flow of steam, water, or other fluids within the power generation processes, facilitating efficient energy production.
Tight Space Installations: In applications where space is limited, such as in HVAC (heating, ventilation, and air conditioning) systems, confined areas, or retrofit projects, ASME B16.9 Stainless Steel 180 Degree Short Radius Elbows are used to navigate the piping through tight spaces or obstacles. They allow for a significant directional change within a relatively small area, optimizing the layout of the piping system.
Plumbing Systems: In residential, commercial, and industrial plumbing systems, ASME B16.9 Stainless Steel 180 Degree Short Radius Elbows can be used to redirect water or fluid flow to accommodate specific building layouts or plumbing requirements. They can be employed in water supply lines, drainage systems, or irrigation systems to change the direction of the flow as needed.
