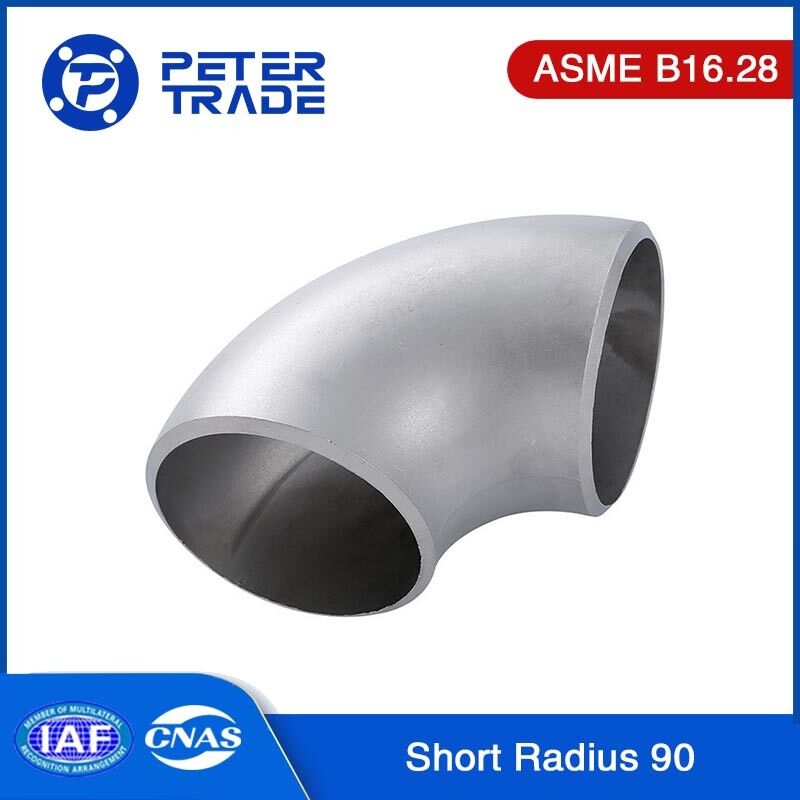

ASME B16.28 Stainless Steel ASTM A403 WP316/316L 90 Degree Short Radius Elbow

ASME B16.28 Stainless Steel ASTM A403 WP316/316L Short Radius 90 Degree Elbows for Directions Changing in Pipe Systems

Product Description:

In ASME B16.28, short radius elbows indeed have a smaller radius of curvature, often referred to as a 1D radius. The center-to-end dimension of a short radius elbow is equal to 1 times the nominal pipe size (NPS) in inches.

Short radius elbows, with their smaller radius, do create a sharper turn in the pipeline, resulting in a larger pressure drop compared to long radius elbows. The tighter curvature causes higher fluid resistance and can lead to increased pressure losses within the piping system.

Due to the sharper turn created by the smaller radius, short radius elbows result in a larger pressure drop within the pipeline compared to long radius elbows. This is because the fluid flow encounters higher resistance when traversing the tight curve of the short radius elbow.

Furthermore, the flow characteristics of short radius elbows are not as smooth as those of long radius elbows. The abrupt change in direction can cause turbulence and potential energy losses in the fluid flow, which can impact the overall system efficiency.

The choice between short radius and long radius elbows depends on the specific requirements of the application, including space limitations, pressure drop considerations, flow characteristics, and any applicable industry standards or codes. Proper engineering evaluation is crucial to ensure the optimal performance and efficiency of the piping system.


ASME B16.28 Carbon Steel 90 Degree Short Radius Elbows Dimensions:

Comparison Between ASME B16.28 90 Degree Short Radius and Long Radius:

Bending Radius: The most significant difference between 90 degree short radius and long radius elbows is the bending radius. A short-radius elbow has a smaller radius, typically equal to the nominal pipe diameter or less. In contrast, a long-radius elbow has a larger bending radius, typically 1.5 times or more of the nominal pipe diameter.

Space Constraints: 90 Degree short radius elbows are often used in applications with space limitations or tight pipe runs. Their compact design allows for more flexibility in piping layout, especially in confined areas where a tighter bend is required. On the other hand, 90 degree long radius elbows are suitable for applications where space is not a constraint, as they provide a more gradual change in direction.

Pressure Drop: 90 Degree short radius elbows tend to create a higher pressure drop compared to 90 degree long radius elbows. The sharper turn in a short-radius elbow results in increased fluid resistance, leading to a more significant pressure drop within the pipe. Long-radius elbows, with their smoother flow path, generate less turbulence and generally have a lower pressure drop.

Flow Characteristics: 90 Degree long radius elbows offer better flow characteristics compared to 90 degree short radius elbows. The gradual change in direction provided by a long-radius elbow minimizes turbulence and energy losses, resulting in a smoother flow pattern. Short-radius elbows, due to their sharper curvature, can cause increased turbulence and flow disruption.

Industry Standards: Both 90 degree short radius and long radius elbows are available as per industry standards such as ASME B16.9, which specify the dimensions, materials, and manufacturing requirements for pipe fittings.

The benefits of using ASME B16.28 90 degree short-radius elbows in piping systems:

The use of 90-degree short radius elbows in piping systems offers several advantages depending on the specific application and requirements.

Space Constraints: Short radius 90 degree elbows are beneficial in situations where space is limited, and a tight turn is needed. Their smaller radius allows for a sharper change in direction within a compact area compared to long radius elbows. This can be advantageous in confined spaces or when there are obstructions nearby.

Reduced Pressure Drop: Short radius 90 degree elbows typically result in a smaller pressure drop compared to long radius elbows. The fluid flow encounters less resistance when traversing the tighter curve of the short radius, leading to lower energy losses and maintaining better flow efficiency. This can be important in applications where minimizing pressure drop is critical.

Cost Savings: Short radius 90 degree elbows are generally more cost-effective compared to long radius elbows. They require less material due to their shorter radius, resulting in lower manufacturing costs. Additionally, the reduced pressure drop can lead to energy savings over the operational life of the system.

Ease of Installation: Short radius 90 degree elbows are easier to install in piping systems due to their compact size and smaller turning radius. They require less space for fitting and alignment, making them more convenient to handle and weld during installation.

Compatibility: 90-degree short radius elbows are compatible with various pipe sizes, allowing flexibility in design and installation. They can be used with different pipe materials and are typically available in a wide range of sizes and specifications, ensuring compatibility with the existing piping system.
