ASME B16.9 Stainless Steel 304 306 Pipe Fitting 180D Short Radius Elbow Return OEM OBM

Product Details

Place of Origin: Xi'an, Shaanxi Province, China

Brand Name: PeterTrade(PT)

Model Number: ASME B16.9 180 Degree Short Radius Elbows

Payment & Shipping Terms

Minimum Order Quantity: 1-10 Pieces

Price: negotiable

Packaging Details: Wooden Case,plywood Case,pallet Etc.

Delivery Time: about 15-45 days, accordingly

Payment Terms: D/A, T/T, L/C,D/P

Supply Ability: 100-200 Ton/Tons Per Month

Get Best Price
Highlight:

SS306 Pipe Fitting Elbow OEM

,

SS306 180D Short Radius Elbow

,

SS304 180D Short Radius Elbow

Product Name:
ASME B16.9 180 Degree Short Radius Elbows
Material:
Stainless Steel 304L 306L
Wall Thickness:
SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS
Size:
1'' To 24''
Connection Type:
Butt Weld
Angle:
180 Degree
Customized Support:
OEM, OBM
Application:
Oil And Gas, Chemical Industry, Water Treatment, Etc.
Product Name:
ASME B16.9 180 Degree Short Radius Elbows
Material:
Stainless Steel 304L 306L
Wall Thickness:
SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS
Size:
1'' To 24''
Connection Type:
Butt Weld
Angle:
180 Degree
Customized Support:
OEM, OBM
Application:
Oil And Gas, Chemical Industry, Water Treatment, Etc.
ASME B16.9 Stainless Steel 304 306 Pipe Fitting 180D Short Radius Elbow Return OEM OBM

ASME B16.9 Stainless Steel 304 306 180 Degree 180D Short Radius Seamless Elbow Bend in Piping Systems

Product Introduction:

A 180 degree pipe elbow is a fitting that allows for a complete reversal of the piping system's direction by bending it at a 180-degree angle. It is used in situations where a significant change in direction is needed, or when a pipeline needs to be reversed without creating backflow.



The choice of material for a 180-degree pipe elbow depends on various factors, including the application requirements and environmental conditions. Common materials used for manufacturing pipe elbows include stainless steel, PVC (polyvinyl chloride), or carbon steel. Each material has its own advantages and suitability for specific applications.



Stainless steel is known for its corrosion resistance, durability, and high strength, making it suitable for applications in demanding environments or industries where there are concerns about corrosion, such as chemical processing, oil and gas, or food processing.



PVC is a lightweight and cost-effective option that is commonly used in plumbing and irrigation systems. It offers good resistance to corrosion and chemicals, making it suitable for a wide range of applications.



Carbon steel is a robust and versatile material commonly used in industrial applications, including power generation, oil and gas, and infrastructure projects. It provides excellent strength and durability, especially in high-pressure and high-temperature environments.



ASME B16.9 180 Degree Short Radius Seamless Elbows are a type of pipe fitting that is used to change the direction of flow in a piping system by 180 degrees. They are commonly used when a complete reversal of flow direction is required.



ASME B16.9 180 Degree Short Radius Seamless Elbows are available in the market as a type of pipe fitting. These elbows are designed to make a sharp turn of 180 degrees in a piping system. The term "short radius" refers to the smaller radius of curvature compared to long radius elbows, resulting in a tighter turn.





ASME B16.9 180 Degree Short Radius Seamless Elbows Dimensions:

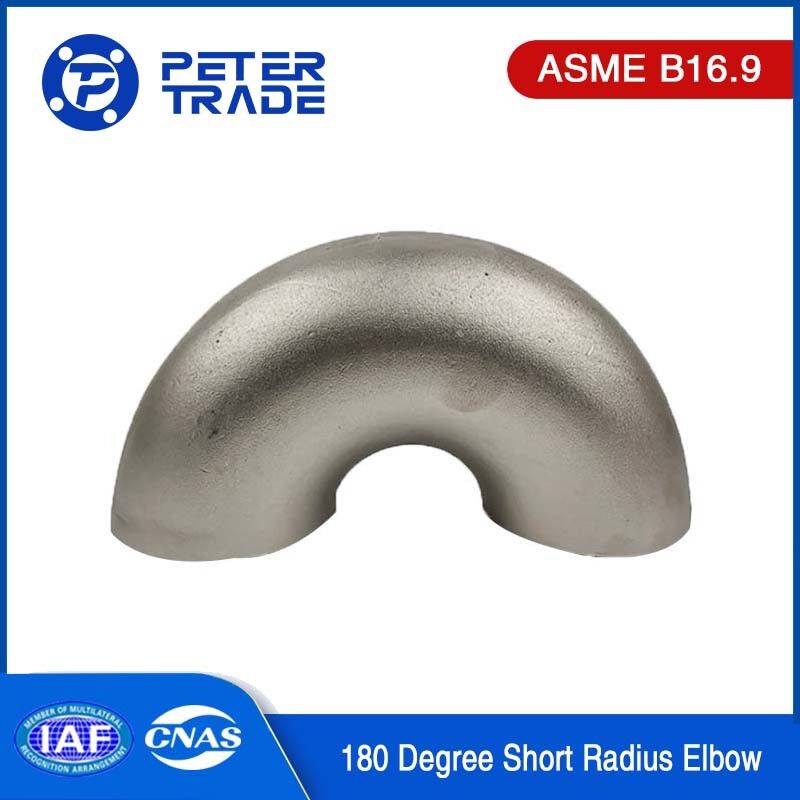

                                                                                                                ASME B16.9 Stainless Steel 304 306 Pipe Fitting 180D Short Radius Elbow Return OEM OBM 0

ASME B16.9 short-radius (S/R) 180° return Dimensions
NPS D(outer dimension) O(Center to Center) K(Back to Face)
1″ 33.4 51 41
1 1/4″ 42.2 64 52
1 1/2″ 48.3 76 62
2″ 60.3 102 81
2 1/2″ 73 127 100
3″ 88.9 152 121
3 1/2″ 101.6 178 140
4″ 114.3 203 159
5″ 141.3 254 197
6″ 168.3 305 237
8″ 219.1 406 313
10″ 273 508 391
12″ 323.8 610 467
14″ 355.6 711 533
16″ 406.4 813 610
18″ 457 914 686
20″ 508 1016 762
22″ 559 1118 838
24″ 610 1219 914


Advantages of ASME B16.9 Stainless Steel Short Radius Seamless Elbows:

Directional Change: A 180 degree short radius elbow provides a complete reversal of the pipeline's direction in a single fitting. This eliminates the need for additional pipe segments or fittings to achieve the same change in direction. It simplifies the installation process, reduces material and labor costs, and minimizes the potential points of leakage associated with additional connections.



Time and Cost Savings: By eliminating the need for extra pipe segments and fittings, the use of 180 degree short radius elbows saves time and reduces installation costs. It streamlines the piping system design and simplifies the construction process, resulting in improved efficiency and cost-effectiveness.



Reduced Risk of Leakage: Every additional connection in a piping system introduces a potential point of leakage. By using a single 180-degree pipe elbow instead of multiple elbows or fittings, the number of connections and potential leakage points is minimized. This reduces the risk of leaks, enhancing the overall integrity and reliability of the pipeline.



Reduced Turbulence and Pressure Drop: Compared to using multiple elbows, a 180 degree short radius elbow offers a smoother flow path with reduced turbulence and pressure drop. The gradual and continuous change in direction provided by a single elbow minimizes flow disturbances and ensures efficient fluid flow. This can result in improved system performance, reduced energy consumption, and lower operating costs.



Space Optimization: In situations where space is limited or tight, using a 180 degree short radius elbow can help optimize the layout of the piping system. It allows for a significant directional change within a smaller footprint, making it suitable for installations where space constraints are a concern.



Maintenance and Accessibility: With fewer connections and joints, maintenance and inspection of the piping system become easier. The use of a 180 degree short radius elbow simplifies access to the pipeline for inspection, cleaning, and maintenance activities, reducing downtime and improving overall system management.





Applications of ASME B16.9 Stainless Steel 180 Degree Short Radius Elbows:

Wastewater Treatment Plants: In wastewater treatment plants, ASME B16.9 Stainless Steel 180 Degree Short Radius Elbows are used to reverse the direction of the flow, redirecting the treated water or sludge to the desired location for further processing or disposal. They are often employed in applications such as sewage treatment, sludge handling, and water reclamation processes.



Chemical Plants: Chemical processing facilities often utilize ASME B16.9 Stainless Steel 180 Degree Short Radius Elbows to change the flow direction in pipelines handling different chemicals or fluids. These elbows allow for efficient routing of pipelines, enabling the transfer of materials between different processing units or storage tanks.



Power Generation Facilities: Power plants, including thermal power plants and nuclear power plants, utilize ASME B16.9 Stainless Steel 180 Degree Short Radius Elbows in their piping systems. These elbows help redirect the flow of steam, water, or other fluids within the power generation processes, facilitating efficient energy production.



Tight Space Installations: In applications where space is limited, such as in HVAC (heating, ventilation, and air conditioning) systems, confined areas, or retrofit projects, ASME B16.9 Stainless Steel 180 Degree Short Radius Elbows are used to navigate the piping through tight spaces or obstacles. They allow for a significant directional change within a relatively small area, optimizing the layout of the piping system.



Plumbing Systems: In residential, commercial, and industrial plumbing systems, ASME B16.9 Stainless Steel 180 Degree Short Radius Elbows can be used to redirect water or fluid flow to accommodate specific building layouts or plumbing requirements. They can be employed in water supply lines, drainage systems, or irrigation systems to change the direction of the flow as needed.
