Product Type: |
ASME B16.5 Slip On Flanges |
Product Standard: |
American Standard |
Dimensions: |
1/2''-24'' |
Pressure Rate: |
Class 150 |
Pressure Range: |
Up To 1500 |
Facing: |
Raised Face, Flat Face, Etc. |
Material: |
Stainless Steel 304L 306L |
Manufacturing Methods: |
Casting, Forging, Casting And Forging, Medium Plate Cutting, Casting |
Application: |
Oil And Gas, Chemical, Power Plant, Water Treatment, Shipbuilding |
Export To: |
North America And Other Different Countries In The World |
Product Type: |
ASME B16.5 Slip On Flanges |
Product Standard: |
American Standard |
Dimensions: |
1/2''-24'' |
Pressure Rate: |
Class 150 |
Pressure Range: |
Up To 1500 |
Facing: |
Raised Face, Flat Face, Etc. |
Material: |
Stainless Steel 304L 306L |
Manufacturing Methods: |
Casting, Forging, Casting And Forging, Medium Plate Cutting, Casting |
Application: |
Oil And Gas, Chemical, Power Plant, Water Treatment, Shipbuilding |
Export To: |
North America And Other Different Countries In The World |

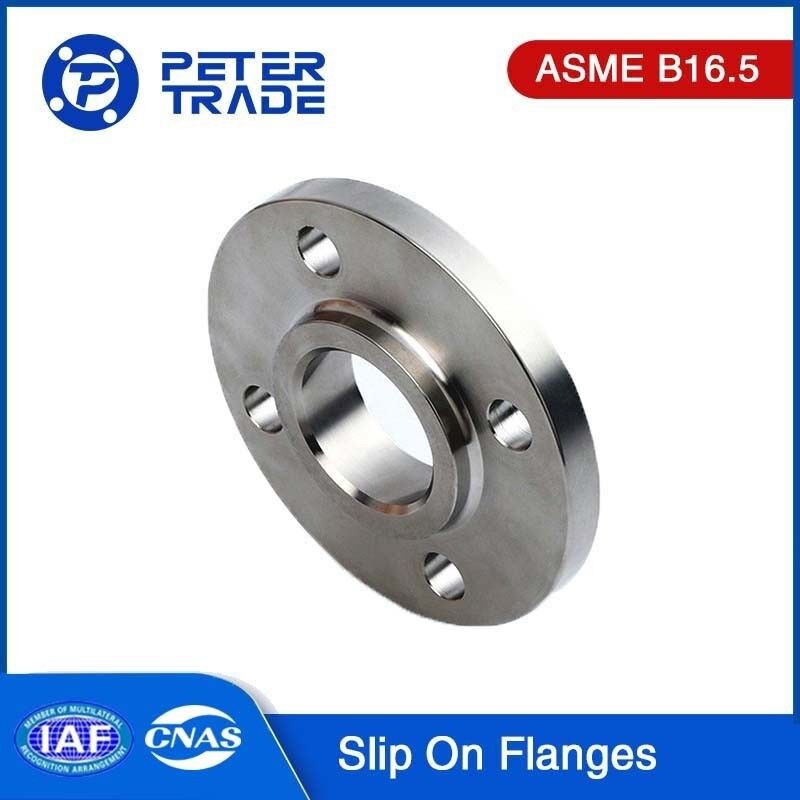

ANSI B16.5 Class 150 Stainless Steel Slip On Flanges A182 304/316 Raised Face and Flat Face for Piping Systems
Company Introduction:
Shaanxi Peter International Trade Co., Ltd. is a well-established and trusted supplier with over 20 years of experience in the industry, specializing in high-quality ANSI/ASME B16.5 Class 150 stainless steel and stainless steel slip-on flanges. With a strong reputation as a reliable source for these products, we have built long-term relationships with clients across a variety of industries, including oil and gas, petrochemical, power generation, and more.
At Shaanxi Peter, we prioritize quality above all else. To ensure the superior performance and durability of our products, we select only the finest materials and adhere to strict quality control measures throughout the manufacturing and inspection process. Our ANSI/ASME B16.5 Class 150 slip-on flanges are designed to meet industry standards, providing dependable solutions for low-pressure applications in a range of industrial sectors.
Our team of experts is highly skilled and committed to offering exceptional customer service. We collaborate closely with clients to deliver customized solutions that meet their specific needs. The slip-on design of our flanges allows for easy installation, making them an ideal choice for projects that require both efficiency and reliability.
Whether you are looking for flanges for a new project or need replacements for ongoing operations, Shaanxi Peter International Trade Co., Ltd. is dedicated to providing the best products and services to help you achieve success in your business.
ANSI/ASME B16.5 Class 150 Stainless Steel Slip-On Flanges:
ANSI B16.5 Class 150 stainless steel slip-on flanges (A182 304/316) offer excellent corrosion resistance and are widely used in various industries, such as chemical, petrochemical, food and beverage, and marine. These flanges are made from 304 or 316 stainless steel, providing high strength and resistance to corrosion, making them suitable for medium-pressure piping systems, typically handling a maximum working pressure of 150 psi.
The flanges come in Raised Face (RF) and Flat Face (FF) options. Raised face flanges provide better sealing performance, making them ideal for applications that require strong sealing. Flat face flanges are typically used with gaskets, suitable for applications where sealing is not as critical. Both designs effectively prevent leaks and are suitable for different operating conditions.
The slip-on design of these flanges allows for easy installation by simply sliding the flange onto the pipe and welding it in place, saving time and reducing labor costs. 304 stainless steel is commonly used in the food, beverage, and light industrial sectors, while 316 stainless steel is preferred for its superior corrosion resistance in harsher environments like marine and chemical processing.
Overall, ANSI B16.5 Class 150 stainless steel slip-on flanges are ideal piping components, offering good corrosion resistance, effective sealing, and ease of installation for a variety of industrial systems.
ANSI/ASME B16.5 Slip On Flange Class 150 Dimensions:
| ANSI/ASME B16.5 Class 150 SLIP ON FLANGES SORF | ||||||||||
|
Nominal Pipe size (inch) |
Outside Diameter | O.D.of Raised Face | Diameter at Base of Hub | Thickness | Bore | Length | Drilling |
Approximate Weight(lb) |
||
| D | G | X | t | B2 | T2 | Bolt circle diameter | Number of holes | Diameter of Bolt | ||
| 1/2'' | 89 | 35.1 | 30.2 | 11.2 | 22.4 | 15.7 | 60.5 | 4 | 15.7 | 1 |
| 3/4'' | 99 | 42.9 | 38.1 | 12.7 | 27.7 | 15.7 | 69.9 | 4 | 15.7 | 2 |
| 1'' | 108 | 50.8 | 49.3 | 14.2 | 34.5 | 17.5 | 79.2 | 4 | 15.7 | 2 |
| 1.1/4'' | 117 | 63.5 | 58.7 | 15.7 | 43.2 | 20.6 | 88.9 | 4 | 15.7 | 3 |
| 1.1/2'' | 127 | 73.2 | 65 | 17.5 | 49.5 | 22.4 | 98.6 | 4 | 15.7 | 3 |
| 2'' | 152 | 91.9 | 77.7 | 19.1 | 62 | 25.4 | 120.7 | 4 | 19.1 | 5 |
| 2.1/2'' | 178 | 104.6 | 90.4 | 22.4 | 74.7 | 28.4 | 139.7 | 4 | 19.1 | 8 |
| 3'' | 191 | 127 | 108 | 23.9 | 90.7 | 30.2 | 152.4 | 4 | 19.1 | 9 |
| 3.1/2'' | 216 | 139.7 | 122.2 | 23.9 | 103.4 | 31.8 | 177.8 | 8 | 19.1 | 11 |
| 4'' | 229 | 157.2 | 134.9 | 23.9 | 116.1 | 33.3 | 190.5 | 8 | 19.1 | 13 |
| 5'' | 254 | 185.7 | 163.6 | 23.9 | 143.8 | 36.6 | 215.9 | 8 | 22.4 | 15 |
| 6'' | 279 | 215.9 | 192 | 25.4 | 170.7 | 39.6 | 241.3 | 8 | 22.4 | 19 |
| 8'' | 343 | 269.7 | 246.1 | 28.4 | 221.5 | 44.5 | 298.5 | 8 | 22.4 | 30 |
| 10'' | 406 | 323.9 | 304.8 | 30.2 | 276.4 | 49.3 | 362 | 12 | 25.4 | 43 |
| 12'' | 483 | 381 | 365.3 | 31.8 | 327.2 | 55.6 | 431.8 | 12 | 25.4 | 64 |
| 14'' | 533 | 412.8 | 400.1 | 35.1 | 359.2 | 57.2 | 476.3 | 12 | 28.4 | 90 |
| 16'' | 597 | 469.9 | 457.2 | 36.6 | 410.5 | 63.5 | 539.8 | 16 | 28.4 | 106 |
| 18'' | 635 | 533.4 | 505 | 39.6 | 461.8 | 68.3 | 577.9 | 16 | 31.8 | 130 |
| 20'' | 699 | 584.2 | 558.8 | 42.9 | 513.1 | 73.2 | 635 | 20 | 31.8 | 165 |
| 22’’ | 749 | 641.3 | 616 | 44.5 | 564.4 | 78.0 | 692.2 | 20 | 35.1 | 185 |
| 24'' | 813 | 692.2 | 663.4 | 47.8 | 616 | 82.6 | 749.3 | 20 | 35.1 | 220 |
1.Dimensions are in millimeters(mm).
2.Dimensions can be specified by different purchasers.
Advantages of ANSI B16.5 Class 150 Slip On Flanges:
ANSI B16.5 Class 150 Slip-On Flanges offer many advantages, primarily in terms of ease of installation, cost-effectiveness, and versatility. These flanges can be easily slid onto the pipe and welded into place, making the installation process simpler and saving time and labor compared to other types of flanges. Additionally, slip-on flanges have relatively low manufacturing costs, especially suitable for medium-pressure systems, making them a highly economical choice in many industries.
Their simple design allows for easy inspection and maintenance, reducing stress on the welds and improving the overall strength of the connection. ANSI B16.5 Class 150 slip-on flanges are suitable for piping systems with pressures up to 150 pounds (approximately 285 psi), making them widely used in industries such as chemical, petrochemical, and water treatment. Due to their durability and ease of replacement, slip-on flanges perform well in situations where regular maintenance and replacement are required.
Furthermore, slip-on flanges offer good alignment during installation, reducing misalignment in the piping system and minimizing the risk of leaks and operational issues. These advantages make slip-on flanges an ideal choice for many medium- and low-pressure applications.
Grades of Stainless Steel Flanges:
| Type | Common Grades | Key Features | Applications |
|---|---|---|---|
| Austenitic Stainless Steel | 304, 316, 310 | High corrosion resistance, non-magnetic, good formability and weldability, high-temperature oxidation resistance | Food processing, medical equipment, kitchenware, chemical industry, marine environments (especially 316) |
| Ferritic Stainless Steel | 430, 446 | Magnetic, good corrosion resistance, moderate strength, not as formable as austenitic stainless steel | Automotive parts, kitchen appliances, industrial equipment |
| Martensitic Stainless Steel | 410, 420, 440 | Magnetic, high strength and hardness, lower corrosion resistance, can be heat treated for hardness | Cutlery, tools, surgical instruments, high-strength industrial parts |
| Duplex Stainless Steel | 2205, 2507 | Mixed structure of austenite and ferrite, high strength, excellent resistance to stress corrosion cracking, pitting, and crevice corrosion | Oil and gas, marine applications, chemical processing |
| Precipitation-Hardening Stainless Steel | 17-4 PH, 15-5 PH | High strength, good corrosion resistance, different mechanical properties through heat treatment | Aerospace, military, high-performance engineering |
| Ferritic-Austenitic Stainless Steel | 2507 (Super Duplex Stainless Steel) | Excellent corrosion resistance, high strength, resistance to chloride-induced stress corrosion cracking | Extreme environments, such as seawater, chemical processing, offshore industries |
| High-Alloy Stainless Steel | 904L, Alloy 20 | Extremely high corrosion resistance, especially in acidic environments, can withstand extreme conditions | Chemical processing, power generation, petrochemical industries |
Product Applications:
Pipelines: Used in municipal and industrial water pipelines, including treatment and distribution systems.
Sewerage: Applied in wastewater systems for connecting pipes and equipment.
Pipeline Systems: Employed in various pipelines for transporting crude oil, refined products, and natural gas.
Processing Plants: Utilized in refineries and chemical processing plants for joining different sections of piping.
Air Ducts: Used in heating, ventilation, and air conditioning systems to connect ductwork and other components.
Chilled Water Lines: Applied in chilled water systems for cooling and temperature control.
Chemical Plants: Used for connecting pipes and equipment in chemical processing and production facilities.
Manufacturing: Applied in various manufacturing processes that require fluid handling and transfer.
Steam Systems: Utilized in steam lines for power plants, including both fossil fuel and nuclear plants.
Cooling Systems: Employed in cooling water systems and auxiliary piping.
Building Services: Used in commercial and residential construction for connecting and supporting various piping systems.
Plumbing: Applied in plumbing systems for water and gas distribution.
These flanges are particularly suited for piping systems that handle non-corrosive fluids and gases such as water, steam, oil, and gas. The raised face and flat face options provide flexibility in choosing the most appropriate design for a given application, while the Class 150 rating ensures compatibility with low-pressure systems.
