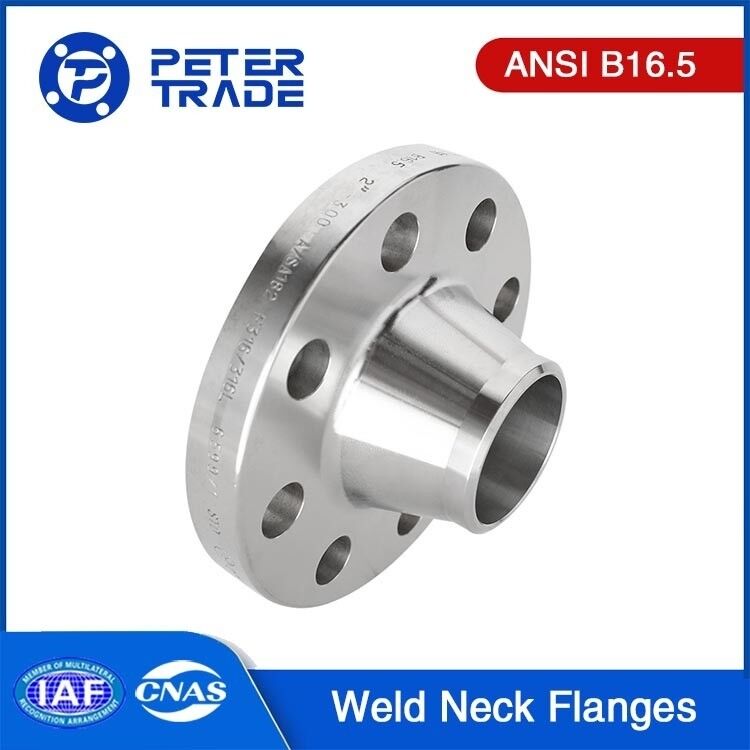

ANSI B16.5 Class 300 Stainless Steel Weld Neck Flanges A182 304/316L WNRF Raised Face and Flat Face

ANSI B16.5 Class 300 Stainless Steel Weld Neck Flanges A182 304/316L WNRF Raised Face and Flat Face

Introduction:

ANSI B16.5 defines the dimensional specifications for flanges and their associated fittings in pressure ratings up to Class 2500. Class 300 refers to a pressure rating for flanges that can withstand a maximum pressure of 300 psi at a specific temperature. For flanges made of stainless steel, A182 304 and A182 316L are two common materials, each offering different properties suited to different applications. The Weld Neck Raised Face (WNRF) and Weld Neck Flat Face (WNFF) are specific types of flange face configurations that provide different sealing performance and are selected based on the system's needs.

Material Specifications:

A182 304:

A widely used austenitic stainless steel with 18% chromium and 8% nickel content.

Known for excellent corrosion resistance and good mechanical properties, especially in mildly corrosive environments.

Common in applications where general corrosion resistance is required, such as in food, beverage, and pharmaceutical industries.

A182 316L:

Similar to 304, but with the addition of molybdenum (2-3%) which provides enhanced resistance to corrosion, particularly in chloride-rich environments.

316L is the low-carbon version of 316, which offers better weldability and reduces the risk of carbide precipitation, ensuring improved performance in welded areas.

Often used in more corrosive environments like marine, chemical processing, or pharmaceutical industries.

ANSI B16.5 Class 300 Weld Neck Flanges:

ANSI B16.5 Class 300 stainless steel welding neck flanges (A182 304/316L) are widely used in industrial piping systems, especially in the chemical, food, oil and gas, and pharmaceutical industries. These flanges offer high strength, corrosion resistance, and excellent mechanical properties, capable of withstanding high operating pressures and temperatures.

In terms of material, A182 304 stainless steel is one of the most commonly used austenitic stainless steels, containing 18% chromium and 8% nickel. It offers excellent corrosion resistance and mechanical properties, making it suitable for most non-extreme corrosive environments. A182 316L, on the other hand, contains 2-3% molybdenum, providing enhanced resistance to chloride corrosion, especially in seawater or other aggressive environments. 316L is the low-carbon version of 304L, offering better weldability and reducing carbide precipitation in the welded area, thus improving the performance of the weld zone. It is suitable for more demanding conditions.

These flanges typically feature a welding neck flange (WNRF) design, which has a long tapered neck, making them ideal for high-pressure applications. This design provides greater connection strength and reduces stress concentrations at the pipeline connection. The welding neck also ensures better alignment of the pipeline, preventing poor sealing due to misalignment. Raised face (RF) flanges have a sealing surface that is slightly raised compared to the pipe face, offering better sealing performance for high-pressure and high-temperature systems, while flat face (FF) flanges are used for lower pressure systems or where non-metallic gasket seals are required.

Class 300 refers to the flange's pressure rating, typically suitable for a working pressure of 300 psi (approximately 2068 kPa). The exact pressure rating depends on the system's operating temperature. As the temperature increases, the pressure rating typically decreases. For example, at 100°F (about 38°C), the maximum working pressure for Class 300 is 300 psi, but at 500°F (about 260°C), the maximum working pressure may drop to 225 psi.

When using these flanges, parameters such as size, bolt hole diameter, bolt size, and flange thickness should be selected based on the specific application. Common sizes range from 1/2 inch to 24 inches, and as the size increases, the number of bolts and flange thickness also increase. A182 304 and 316L welding neck flanges are suitable for high-strength and corrosion-resistant pipeline systems and are widely used in industries such as chemicals, pharmaceuticals, and oil and gas, especially in seawater, corrosive chemicals, and other harsh environments.

ANSI/ASME B16.5 Weld Neck Flange Class 300 Dimensions:

1.Dimensions are in millimeters(mm).

2.B1 can be specified by different purchasers.

Differences between Carbon Steel and Stainless Steel:

Features of Weld Neck Flanges:

Weld neck flanges are a popular choice in various industries due to their strong and reliable performance in high-pressure and high-temperature applications. Some of the key features of weld neck flanges include their design, strength, and versatility.

The primary feature of a weld neck flange is its long tapered neck, which provides a gradual transition from the flange to the pipe. This design helps distribute stress evenly along the pipe, minimizing the risk of cracking and failure, especially under high pressure or fluctuating temperatures. The neck of the flange is welded directly to the pipe, creating a seamless connection that is strong and durable.

Weld neck flanges are also known for their excellent mechanical properties, which make them suitable for applications in demanding environments. They are often made from materials such as carbon steel, stainless steel, or alloy steel, which offer high tensile strength, resistance to corrosion, and durability, ensuring a long service life.

These flanges are versatile and can be used in a wide range of industries, including oil and gas, chemical processing, power generation, and water treatment. They are particularly effective in systems that require reliable connections under high pressure, temperature, or fluctuating conditions. The design of the weld neck flange allows for a smooth flow of fluids through the pipe, which reduces turbulence and ensures the efficient operation of the piping system.

Overall, weld neck flanges are essential for creating secure, leak-proof connections in critical piping systems, and their strength and reliability make them a preferred choice for industries with rigorous demands.

Differences between Weld Neck Flanges and Slip On Flanges:

The weld neck flange and slip-on flange mainly differ in design, application, and performance characteristics.

The weld neck flange has a long, tapered neck that gradually narrows down to the pipe. The flange is welded to the pipe at the base of the neck, allowing stress to be gradually transferred to the flange, reducing stress concentration. It is suitable for high-pressure and high-stress environments. The slip-on flange has a larger bore, allowing the pipe to "slip" into the flange, and then welded both inside and outside. The design of the slip-on flange does not distribute stress as effectively as the weld neck flange, so it is typically used in low-pressure systems or environments with lower stress.

In terms of installation, the weld neck flange requires precise alignment during installation, and the welding process is more complex, requiring higher skill levels. On the other hand, the slip-on flange is easier to install, as it simply slips over the pipe and only requires welding on the inside and outside, making the installation process faster and more convenient, especially in applications where ease of installation is prioritized.

Cost-wise, the weld neck flange is generally more expensive due to its complex design and ability to withstand higher pressures and harsh conditions. In comparison, the slip-on flange is more cost-effective and is often used in systems where cost is a concern and the pressure is lower.

In terms of applications, the weld neck flange is ideal for critical, high-pressure systems, such as chemical processing, high-temperature systems, and offshore installations, where strength and precision are crucial. The slip-on flange is typically used in low-pressure systems like water pipelines, HVAC systems, and other non-critical applications.

In summary, the weld neck flange is stronger, better suited for high-pressure environments, requires precise welding, and is more expensive, while the slip-on flange is easier to install, more affordable, and better for low-pressure or non-critical systems.

Grades of Stainless Steel Flanges:

Applications of ASME B16.5 Stainless Steel Weld Neck Flanges:

ASME B16.5 Stainless Steel Weld Neck Flanges are widely used in various industries due to their durability, strength, and ability to withstand high pressures and temperatures. In the petrochemical industry, they are commonly found in pipelines, pressure vessels, and reactors, handling oil, gas, and chemicals. The oil and gas sector uses them extensively in offshore platforms and drilling rigs for pipeline connections under harsh conditions. In power generation, they are crucial for steam, water, and gas lines in power plants, including boilers and heat exchangers. Chemical processing plants rely on them for transporting aggressive chemicals under high pressure. They are also used in water treatment plants, HVAC systems, and marine applications for reliable connections in large-scale industrial systems. Additionally, they are suitable for cryogenic applications and are used in industries such as food and beverage for systems requiring high cleanliness and durability. Their adaptability and strength make them a popular choice for a variety of high-performance piping systems.
