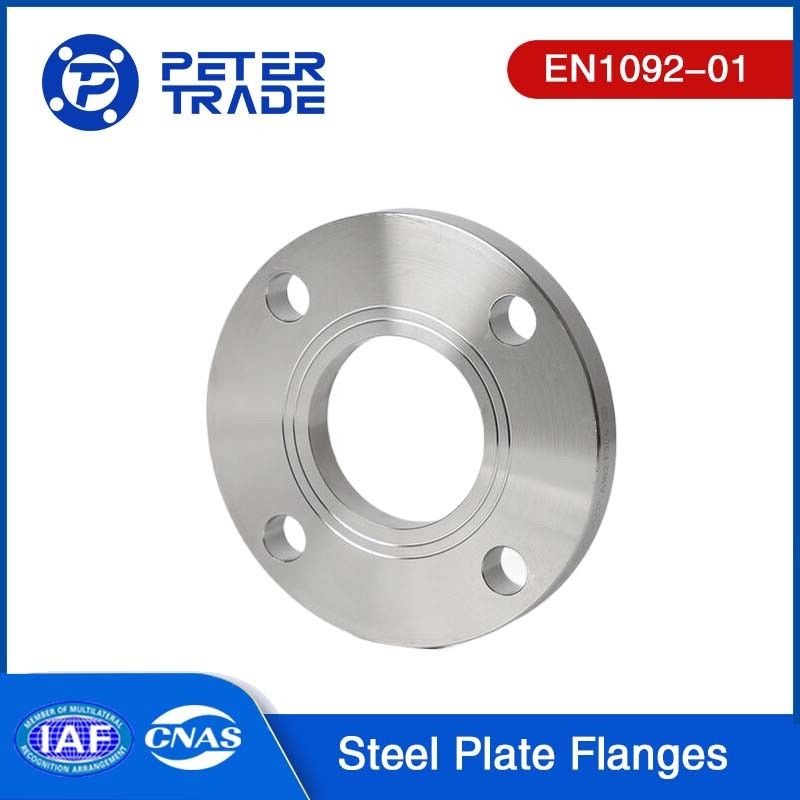

EN1092-01 PN 10 TYPE 01 Carbon Steel Plate Flange Raised Face PLRF For Piping Systems

EN1092-01 PN 10 TYPE 01 Carbon Steel Plate Flange Raised Face PLRF for Industrial Purposes

Introduction:

Our company, Shaanxi Peter International Trade Co., Ltd. is a well-known and respected supplier in the market, with a strong track record spanning over 20 years. Our extensive experience has allowed us to establish ourselves as a trusted and reliable source for EN1092-01 Carbon Steel Plate Flanges.

We understand the importance of providing excellent service to our customers. We have built long-lasting relationships with clients by offering competitive pricing, prompt delivery, and personalized support. Our team of experts is dedicated to assisting customers throughout the entire procurement process, from product selection to after-sales service.

As a reputable supplier, we prioritize quality control and assurance. Our EN1092-01 Carbon Steel Plate Flanges undergo rigorous testing and inspection to ensure durability, precision, and compliance with relevant standards. We work closely with trusted manufacturers who share our commitment to delivering reliable and superior products.

EN1092-01 Carbon Steel Plate Flanges:

EN1092-01 Plate Flanges provide a reliable and leak-proof connection between pipes or equipment. They are commonly used in industries such as oil and gas, chemical, petrochemical, water treatment, and power generation. These flanges can withstand high pressures and temperatures, ensuring the integrity and safety of the piping system.

EN1092-01 Plate Flanges are a type of flange widely used across industries, including the oil and gas sector, for connecting pipes and providing protection against external factors. These flanges are crafted by cutting them from a flat sheet of metal, resulting in a circular shape with a larger circumference compared to other flange types. This design enables them to withstand higher levels of pressure effectively.

The primary advantage of EN1092-01 Plate Flanges lies in their exceptional strength, making them capable of establishing robust connections between pipes of different sizes while also withstanding extreme temperature fluctuations. These flanges can be manufactured using various materials, including carbon steel, stainless steel, alloy steels, and more, ensuring compatibility with diverse application requirements.

EN1092-01 Plate Flanges offer reliability and durability in piping systems, contributing to their widespread use. They provide a secure and leak-resistant connection, facilitating smooth fluid flow and preventing any potential disruptions or hazards. These flanges are crucial components in ensuring the integrity and efficiency of industrial processes, making them highly sought after in numerous sectors.

EN1092-01 Carbon Steel Plate Flange Dimensions:

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.

Grades of Carbon Steel Flanges:

Features of Carbon Steel Plate Flanges:

Material Composition: Made from carbon steel, which is primarily composed of iron and carbon, offering a balance of strength and ductility.

Strength and Durability: Provides good tensile strength and durability, suitable for high-pressure and high-stress applications.

Cost-Effective: Generally less expensive than stainless steel flanges, making them a cost-effective option for many applications.

Weldability: Carbon steel is easily weldable, facilitating the installation and modification of piping systems.

Versatility: Available in various sizes and pressure ratings, making them adaptable to different industrial requirements.

Machinability: Easier to machine compared to some other metals, allowing for precise manufacturing and custom fittings.

Corrosion Resistance: Less resistant to corrosion than stainless steel; often requires coating or painting to prevent rust in corrosive environments.

Common Standards: Manufactured according to standards like ANSI/ASME B16.5, which defines dimensions, pressure ratings, and material specifications.

Applications: Widely used in industries such as oil and gas, chemical processing, water treatment, and construction for connecting pipe sections and other components.

Design Variations: Available in different types, including slip-on, weld neck, blind, and threaded, to suit various connection needs and design requirements.

Benefits of Carbon Steel Plate Flanges:

Cost-Effective: Carbon steel flanges are generally more affordable compared to stainless steel or other alloy flanges, providing a cost-effective solution for many applications.

High Strength: Carbon steel flanges offer good tensile strength and are suitable for high-pressure applications. They provide robust support and reliability in demanding conditions.

Versatility: Available in a wide range of sizes, pressure ratings, and types (such as slip-on, weld neck, blind, and threaded), making them versatile for various piping and connection needs.

Weldability: Carbon steel is easily weldable, facilitating straightforward installation and modification. This property is advantageous for custom fittings and repairs.

Machinability: Carbon steel is easier to machine compared to many other metals, allowing for precise manufacturing and customization of flanges.

Availability: Carbon steel flanges are widely produced and readily available, ensuring that you can find the specific type and size you need.

Structural Integrity: They provide reliable structural integrity and are capable of withstanding substantial mechanical loads and stresses.

Compatibility: Often used in conjunction with other carbon steel components, ensuring compatibility and consistency within a piping system.

Temperature Tolerance: Can handle a range of temperatures, making them suitable for various industrial processes and environments.

Standardization: Produced according to established standards (e.g., ANSI/ASME B16.5), which ensures consistency in dimensions, pressure ratings, and performance.

Applications of EN1092-01 Carbon Steel Plate Flanges:

EN 1092-1 is a European standard that specifies the requirements for plate flanges made from carbon steel and other materials. These flanges are used in various applications across different industries. Here’s a look at some common applications of EN 1092-1 carbon steel plate flanges:

Oil and Gas Industry

• Pipelines: Used to connect sections of pipelines that transport oil, gas, or other fluids.
• Refineries: Employed in refinery systems for transporting and processing hydrocarbons.
• Pressure Vessels: Used in flanged connections of pressure vessels for safe containment of fluids under pressure.

Petrochemical Industry

• Processing Equipment: Utilized in various processing units where chemicals are handled under high pressures and temperatures.
• Storage Tanks: Flanges are used to connect and seal storage tanks for chemicals and petrochemical products.

Power Generation

• Boiler Systems: Flanges are critical in connecting boiler components and ensuring a secure seal in high-pressure and high-temperature environments.
• Turbine and Pump Connections: Used to connect turbines and pumps in power plants, ensuring the integrity of the fluid systems.

Water Treatment and Distribution

• Water Pipelines: Employed in the connection of water pipelines for municipal water supply and treatment facilities.
• Treatment Plants: Used in water treatment plants to connect various treatment and filtration units.

HVAC Systems

• Air Handling Units: Used in HVAC systems to connect components such as ducts and air handling units.
• Piping Connections: Employed in the connection of piping systems for heating and cooling applications.

Construction and Infrastructure

• Building Services: Used in various building services applications for connecting piping systems and other infrastructure components.
• Structural Connections: Employed in structural applications where flanged connections are needed for rigidity and stability.

Marine Industry

• Shipbuilding: Utilized in shipbuilding for connecting different parts of piping systems and ensuring the integrity of fluid systems onboard ships.
• Offshore Platforms: Used in offshore oil rigs and platforms for fluid handling and pressure vessel connections.

Automotive Industry

• Cooling Systems: Used in automotive cooling systems for connecting radiators and other cooling components.
• Exhaust Systems: Employed in exhaust systems to connect various parts of the exhaust piping.
