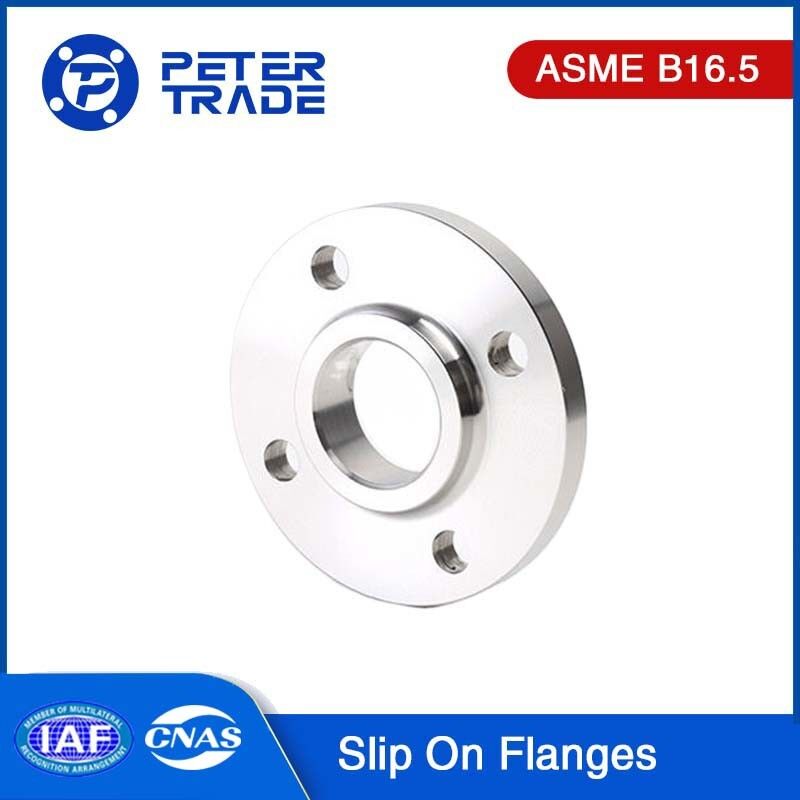

Class 600LB Carbon Steel A105 ASME B16.5 Slip On Flanges SO Flanges for HVAC System

ASME B16.5 Slip On Pipe Flanges Class 600LB Carbon Steel A105 SORF for Chemical Industry

Introduction:

With over 20 years of experience in the industry, our company, Shaanxi Peter International Trade Co., Ltd. has acquired rich expertise in producing carbon steel slip on flanges according to ASME B16.5 class 600 specifications.

As a reputable supplier, our company specializes in manufacturing high-quality ANSI/ASME B16.5 carbon steel slip on flanges Class 600. These flanges are designed to withstand higher pressure applications compared to Class 400 flanges, making them suitable for demanding industrial environments.

The ASME B16.5 standard ensures the dimensional accuracy, pressure ratings, and overall performance of your carbon steel slip on flanges. Class 600 indicates the higher pressure rating for these flanges, allowing them to handle elevated pressure conditions with efficiency and reliability.

By utilizing carbon steel as the primary material, your flanges possess excellent strength, durability, and resistance to corrosion. Carbon steel is known for its exceptional mechanical properties, making it a suitable choice for applications in various industries such as oil and gas, petrochemical, power generation, and more.

ANSI/ASME B16.5 Class 600 Slip on Flanges:

ASME B16.5 Class 600 carbon steel slip on flanges are flange products that comply with the standards of the American Society of Mechanical Engineers (ASME). They are typically used for pipe connections in high-pressure and high-temperature environments, making them particularly suitable for demanding industrial applications. This type of flange features a slip-on design, which facilitates the installation and disassembly of pipeline systems, effectively reducing maintenance and repair time costs. The design of ASME B16.5 Class 600 carbon steel slip on flanges meets rigorous engineering requirements, ensuring reliable and sealed pipe connections while withstanding the challenges of high pressure and high temperature environments. These flanges are commonly used in industries such as petroleum and chemical processing, power generation, paper production, and other industrial sectors that require high-standard pipe connections.

The American Standard Slip on Flange is a commonly used pipe connection flange that conforms to US standards. It is typically made of carbon steel material and manufactured according to relevant standards set by ANSI (American National Standards Institute).

Slip on flange is typically made of carbon steel. Carbon steel can be divided into three categories based on its carbon content: low carbon steel, medium carbon steel, and high carbon steel.

In practical applications, low carbon steel is often used to manufacture structural components and mechanical parts. It has good weldability and machinability, but relatively lower strength and hardness.

Medium carbon steel has higher strength and hardness compared to low carbon steel. It is suitable for manufacturing parts that bear larger torque and loads.

High carbon steel has even higher hardness and strength, but its plasticity and toughness are reduced. It is used for manufacturing parts with high wear resistance requirements.

For slip on flanges, an appropriate carbon steel material is usually chosen based on the specific working environment and requirements. For example, slip on flanges operating in high temperature and high pressure environments may be made of heat-resistant and corrosion-resistant high-temperature alloy materials.

ANSI/ASME B16.5 Slip On Flange Dimensions:

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.

3.For sizes 1/2’’-3.1/2’’, Dimensions of ASME B16.5 Class 600 Slip On Flanges are the same as ASME B16.5 Class 400 Slip On Flanges.

Carbon Steel Flanges and Stainless Steel Flanges:

1. Material Composition

Carbon Steel Flanges: Made primarily from iron and carbon. They may also include small amounts of other elements like manganese, silicon, and copper. The carbon content affects the steel’s strength and hardness.

Stainless Steel Flanges: Made from steel that contains chromium (at least 10.5%) and sometimes nickel. This composition gives stainless steel its corrosion resistance and durability. Common grades include 304 and 316.

2. Corrosion Resistance

Carbon Steel Flanges: Generally less resistant to corrosion and rust. They can be prone to oxidation and deterioration when exposed to moisture and harsh environments unless coated or treated.

Stainless Steel Flanges: Highly resistant to corrosion, rust, and staining. This makes them suitable for applications involving exposure to moisture, chemicals, and other corrosive elements.

3. Strength and Durability

Carbon Steel Flanges: Often stronger and harder compared to stainless steel flanges, particularly when treated or alloyed. They are suitable for high-pressure applications but may be less durable in corrosive environments.

Stainless Steel Flanges: Typically not as strong as carbon steel flanges but offer superior durability and resistance to wear and tear. They maintain their integrity in various environmental conditions.

4. Temperature Resistance

Carbon Steel Flanges: Can withstand high temperatures but may lose strength and become susceptible to oxidation at elevated temperatures.

Stainless Steel Flanges: Better suited for high-temperature applications due to their ability to maintain strength and resist scaling at high temperatures.

5. Cost

Carbon Steel Flanges: Generally less expensive due to the lower cost of raw materials and simpler manufacturing processes.

Stainless Steel Flanges: More expensive because of the higher cost of raw materials (especially chromium and nickel) and more complex production processes.

6. Maintenance

Carbon Steel Flanges: Require regular maintenance and coatings to prevent corrosion and extend their service life.

Stainless Steel Flanges: Require less maintenance due to their inherent resistance to corrosion and staining. They often need only periodic cleaning.

The Most Common Materials of Carbon Steel Slip On Flanges:

A common and widely used material grade for carbon steel flanges is A105 forged carbon steel. They are designed to withstand temperatures ranging from ambient up to 1,000 degrees Fahrenheit and pressures between 20 to 6,170 psi. Carbon steel flanges are known for their wide temperature and pressure range, which makes them suitable for numerous industrial applications. Additionally, they are often chosen for their cost-effectiveness.

Modern carbon steel typically contains a carbon content of up to 2.1% by weight and is primarily alloyed with iron. The term "carbon steel" is sometimes used to refer to steel that does not have a significant amount of chromium or nickel. The carbon content in A105 flanges can vary, with a maximum allowable carbon composition of 0.35%. Increasing the carbon content in steel leads to increased hardness and strength, achieved through heat treatment processes such as quenching, tempering, and normalizing. However, as carbon steel is treated, it becomes less ductile and more brittle. This can make shaping and welding slightly more challenging. Despite this, the benefits of carbon steel in terms of its wide temperature and pressure range often outweigh the extra effort required for forming weld seals.

In terms of trace elements, A105 carbon steel flanges do not require any specified minimum content of alloy elements like molybdenum, nickel, chromium, titanium, or vanadium.

Applications of ASME B16.5 Class 600 Carbon Steel Slip On Flanges:

Carbon steel slip on flanges are a common type of pipeline connection component made from carbon steel. They have many advantages, such as high strength, good corrosion resistance, and relatively low price. Carbon steel slip-on flanges are widely used in many different application areas, including the following:

Petroleum and gas industry: Carbon steel slip on flanges are commonly used in pipeline systems for transporting oil and gas. These pipelines typically transport liquids or gases at high pressures and temperatures, so they require good pressure resistance and sealing performance. Carbon steel slip-on flanges can meet these requirements and are suitable for various oil and gas exploration, processing, and transportation environments.

Chemical industry: In the chemical industry, carbon steel slip on flanges are widely used to connect pipelines in various chemical production and processing processes. These processes may involve corrosive media, high temperature, or high pressure conditions, so materials need to have good corrosion resistance and pressure resistance. The corrosion resistance of carbon steel slip on flanges and their compatibility with other pipeline materials make them a common choice in the chemical industry.

Power plants: Carbon steel slip on flanges are used in power plants to connect key equipment such as boilers, steam pipes, and cooling water systems. These systems typically face high temperature and pressure conditions and require reliable pipeline connections to ensure safe and efficient operation. Carbon steel slip on flanges can meet these requirements and are widely used in thermal power plants, nuclear power plants, and other types of power plants.

Manufacturing industry: In the manufacturing industry, carbon steel slip on flanges are commonly used to connect pipelines in various industrial equipment and machinery. These devices may include chemical equipment, food processing equipment, papermaking machinery, etc. Carbon steel slip on flanges provide a reliable connection method, can withstand high pressures and temperatures, and meet the needs of the manufacturing process.

Carbon steel slip on flanges are pipeline connection components widely used in various industries. They play important roles in the petroleum and gas industry, chemical industry, power plants, and manufacturing industry, providing reliable pipeline connection solutions.
