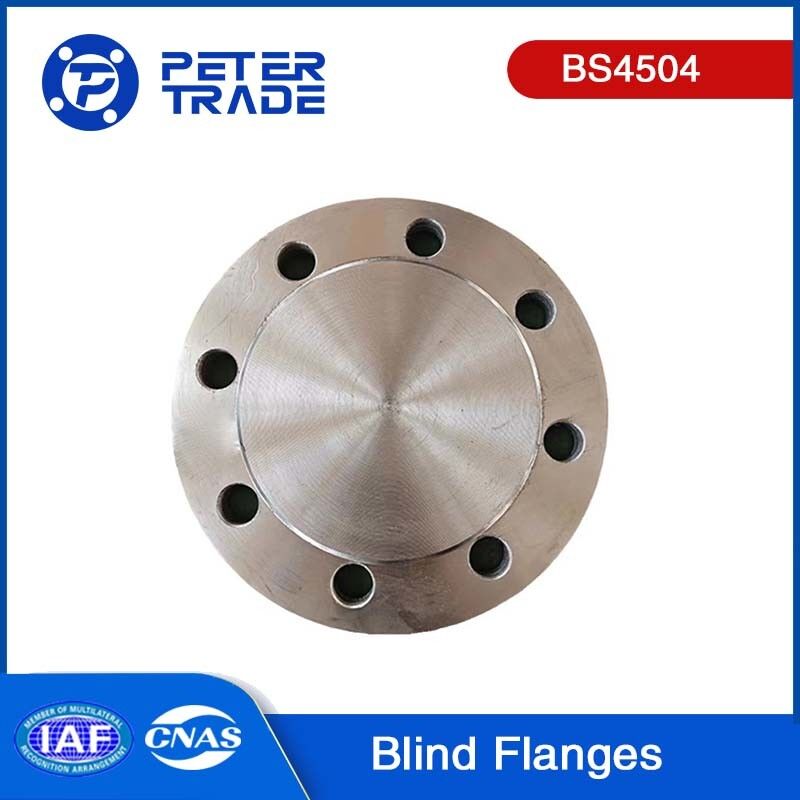

Introduction of BS4504 Carbon Steel Blind Flanges:

BS4504 Carbon Steel Blind Flanges, available in Raised Face (RF) and Flat Face (FF) configurations, are flanges that lack a central bore or opening. Unlike other types designed for fluid or gas flow, these flanges are specifically used to seal the end of piping systems, preventing flow. They serve multiple functions such as facilitating pressure testing, creating access points, providing temporary seals during modifications or repairs, or permanently closing off a pipeline.

In contrast to welded flanges, BS4504 carbon steel blind flanges are secured by bolts. This bolted connection allows for easier access during maintenance, inspections, or future expansions. To ensure a reliable seal, these flanges are typically accompanied by a gasket. The gasket fills the gap between the flange faces, effectively preventing leakage of liquids or gases. Selecting the appropriate gasket material is critical, considering factors like temperature, pressure, chemical compatibility, and the nature of the fluid being transported.

BS4504 carbon steel blind flanges, when used with suitable gaskets, offer a dependable sealing solution for terminating or temporarily sealing a piping system. Their bolted design facilitates accessibility for maintenance and inspections, while the gasket ensures a tight seal by closing the space between the flange surfaces, thus preventing leaks effectively.

BS4504 Blind Flanges Dimensions:

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.

Common Grades of Carbon Steel Blind Flanges:

Carbon steel blind flanges are available in various grades, each with specific properties that make them suitable for different applications:

ASTM A105

Description: This is a standard specification for carbon steel forgings for piping applications.

Characteristics: High strength, good toughness, excellent machinability, and weldability.

Applications: Widely used in the oil and gas industry, chemical processing, and power generation.

ASTM A350 LF2

Description: This specification covers carbon and low-alloy steel forgings requiring notch toughness testing for low-temperature service.

Characteristics: Suitable for low-temperature applications with good impact resistance.

Applications: Used in low-temperature services like cryogenic applications.

ASTM A216 WCB

Description: This specification covers carbon steel castings for valves, flanges, fittings, or other pressure-containing parts for high-temperature service.

Characteristics: Excellent strength and durability under high temperature and pressure conditions.

Applications: Commonly used in high-temperature environments such as refineries and chemical plants.

ASTM A694 F42 to F70

Description: These grades cover carbon and alloy steel forgings for high-pressure transmission service.

Characteristics: High yield strength and excellent toughness.

Applications: Ideal for high-pressure pipelines, including oil and gas transmission lines.

ASTM A234 WPB

Description: This specification covers wrought carbon steel and alloy steel fittings of seamless and welded construction.

Characteristics: Suitable for moderate and high-temperature services with good mechanical properties.

Applications: Used in the manufacturing of pipe fittings and flanges.

The Working Principles of Carbon Steel Blind Flanges:

The working principles of carbon steel blind flanges primarily revolve around their role in piping systems to block off the end of a pipeline or to create a stop flow point:

Closure and Sealing: Blind flanges are used to close the end of a pipeline permanently or temporarily. They seal the end of the pipe to prevent fluid leakage or contamination from entering the pipeline.

Pressure Containment: In applications where pressure needs to be contained within the pipeline, blind flanges ensure that the system remains sealed and can withstand the internal pressure without leakage.

Maintenance and Inspection: During maintenance or inspection of pipelines, blind flanges are used to close off sections of the pipeline, allowing work to be done safely without the flow of fluid.

Compatibility and Installation: Carbon steel blind flanges are designed to match the dimensions and specifications of the pipeline they are installed in. They are typically bolted onto the end of the pipe using bolts and nuts, ensuring a secure and leak-free connection.

Versatility: They can be used in various industries and applications where piping systems require temporary or permanent closure, such as in oil and gas, chemical processing, water treatment, and other industrial processes.

Carbon steel blind flanges play a crucial role in ensuring the integrity and safety of piping systems by providing a secure closure point that prevents leakage and allows for controlled maintenance and inspection activities. Their design and material composition (carbon steel) ensure they are durable and capable of withstanding the operational conditions in which they are used.

Alternative Materials for Carbon Steel Blind Flanges:

When faced with corrosive or high-temperature fluids, carbon steel blind flanges may lack the necessary resistance and durability. In such scenarios, alternative materials become essential considerations. Here are several common substitutes for carbon steel blind flanges in applications involving corrosive or high-temperature fluids:

Stainless Steel: Stainless steel blind flanges are renowned for their exceptional corrosion resistance, making them suitable for diverse corrosive environments. Available in various grades like 304, 316, and 316L, these flanges offer varying levels of corrosion resistance and tolerance to different temperatures. They find widespread use in industries such as chemical processing, pharmaceuticals, and food processing.

Alloy Steel: Alloy steel blind flanges are tailor-made to withstand harsh conditions of high temperature and pressure. These flanges are crafted from steel alloyed with elements like chromium, molybdenum, or nickel, enhancing both mechanical properties and corrosion resistance. They are commonly employed in industries such as power generation, oil and gas, and petrochemicals.

Duplex and Super Duplex Stainless Steel: Duplex and super duplex stainless steel blind flanges provide exceptional strength and corrosion resistance. These materials feature a dual microstructure of austenite and ferrite, offering superior resilience against pitting, crevice corrosion, and stress corrosion cracking. They are extensively used in offshore, marine, chemical, and petrochemical industries.

Hastelloy: Hastelloy alloys, based on nickel, are renowned for their outstanding resistance across a wide spectrum of corrosive environments, including acids, alkaline solutions, and seawater. Hastelloy blind flanges are crucial in industries such as chemical processing, pharmaceuticals, and oil and gas, where resilience to corrosion and high temperatures is critical.

Inconel: Inconel, a nickel-chromium-based alloy, excels in its ability to withstand high temperatures and oxidation. Inconel blind flanges are prevalent in extreme temperature applications such as aerospace, gas turbines, and chemical processing industries.

Different Applications of Carbon Steel Blind Flanges:

Carbon steel blind flanges are versatile components used in various industries and applications where a solid, leak-proof seal at the end of a piping system is necessary.

Oil and Gas Industry: Used in pipelines and process equipment to seal off ends of pipes, valves, and pressure vessels. They are crucial for isolating sections of pipelines during maintenance, repairs, or shutdowns.

Chemical Processing: In chemical plants, carbon steel blind flanges are employed to seal pipelines that transport corrosive chemicals. They ensure containment and prevent leaks that could lead to hazardous situations.

Water Treatment: Essential in water treatment facilities to seal pipes and valves. They help maintain the integrity of water distribution systems and prevent contamination.

Power Generation: Used in power plants for sealing steam, water, and gas lines. Blind flanges facilitate maintenance and repairs by allowing sections of the system to be isolated safely.

Petrochemical Industry: Widely used in refineries and petrochemical plants to seal off piping systems handling various hydrocarbons and chemicals. They withstand high temperatures and pressures typical in these environments.

Shipbuilding and Marine Applications: In maritime industries, blind flanges are utilized to seal pipes on ships and offshore platforms. They are resistant to corrosion from seawater and provide a secure closure for piping systems.
