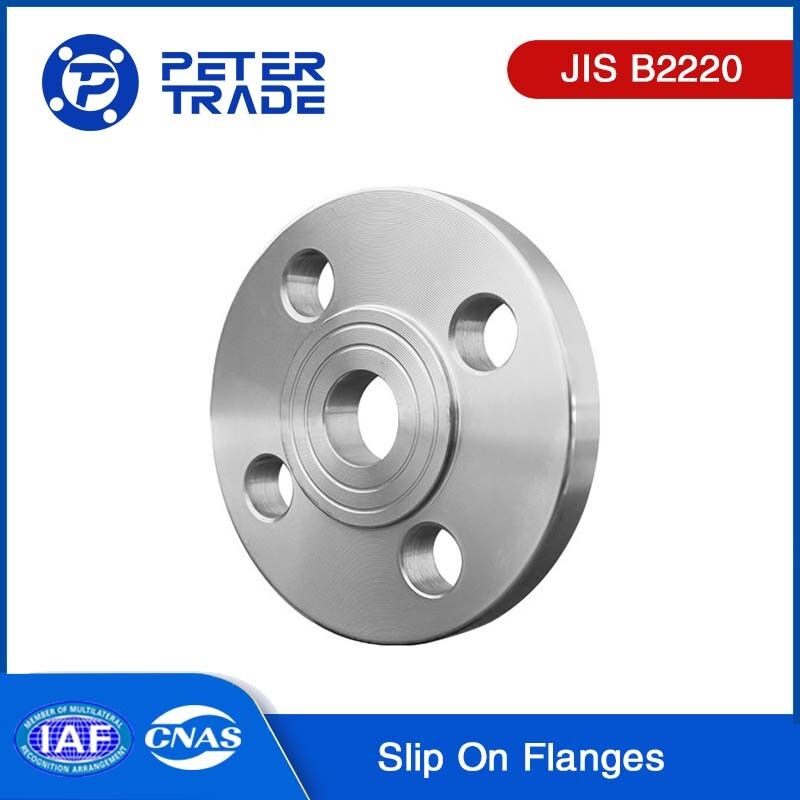

JIS B2220 A105 Carbon Steel Stainless Steel ASTM A182 Flat Face Slip On Flanges 20KG/CM2 for Wastewater Treatment Plants

Product Details

Place of Origin: Xi'an, Shaanxi Province, China

Brand Name: PeterTrade(PT)

Payment & Shipping Terms

Minimum Order Quantity: 1-10 Pieces

Price: negotiable

Packaging Details: Wooden Case,plywood Case,pallet Etc.

Delivery Time: about 15-45 days, accordingly

Payment Terms: D/A, T/T, L/C,D/P

Supply Ability: 100-200 Ton/Tons Per Month

Get Best Price
Highlight:

JIS B2220 Slip On Flanges

,

flat face slip on flange 20KG/CM2

,

Carbon Steel flat face slip on flange

Product Standard:
JIS B2220(Janpanese Industrial Standard)
Product Name:
Slip On Flanges SORF SOFF
Materials:
Carbon Steel Flanges And Stainless Steel Flanges
Product Face Type:
Mainly Include Raised Face (RF), Flat Face (FF), Also Include Ring Type Joint (RTJ), Lap-Joint Face (LJF)
Pressures:
20K
Sizes:
10A-900A
Surface Treatment:
Black Painting / Anti Rust Oil / Hot Dip Galvanized
Apply For:
Chemical, Oil And Gas, Wastewater Treatment And Environmental Protection, Pharmaceutical And Food, Power And Heating Industry
Product Standard:
JIS B2220(Janpanese Industrial Standard)
Product Name:
Slip On Flanges SORF SOFF
Materials:
Carbon Steel Flanges And Stainless Steel Flanges
Product Face Type:
Mainly Include Raised Face (RF), Flat Face (FF), Also Include Ring Type Joint (RTJ), Lap-Joint Face (LJF)
Pressures:
20K
Sizes:
10A-900A
Surface Treatment:
Black Painting / Anti Rust Oil / Hot Dip Galvanized
Apply For:
Chemical, Oil And Gas, Wastewater Treatment And Environmental Protection, Pharmaceutical And Food, Power And Heating Industry
JIS B2220 A105 Carbon Steel Stainless Steel ASTM A182 Flat Face Slip On Flanges 20KG/CM2 for Wastewater Treatment Plants

JIS B2220 20KG/CM2 Carbon Steel and Stainless Steel Slip On Flanges Raised Face and Flat Face

Introduction:

With a proven track record spanning more than twenty years, Shaanxi Peter International Trade Co., Ltd. has established a strong reputation as a leading supplier in the industry. Our specialization lies in supplying JIS B2220 Carbon Steel and Stainless Steel Slip On Flanges to meet the diverse requirements of our clients.



Recognizing the significance of delivering high-quality products, we go above and beyond to ensure meticulous material selection and strict adherence to quality control processes at every stage of manufacturing and inspection. Our slip on flanges, crafted with precision, fully comply with JIS B2220 standards, guaranteeing reliability and durability across various industrial applications.



We cater to a wide range of industries, including shipbuilding, power generation, petrochemical plants, oil refineries, wastewater treatment plants, paper mills, pharmaceutical plants, and turnkey projects.





Description of JIS B2220 Slip On Flanges:

JIS B2220 Slip On Flanges are a type of flange specified in the Japanese Industrial Standard (JIS) B2220. These flanges are designed to be slipped over the end of a pipe or fitting and then welded in place to create a secure and leak-tight connection.



The JIS B2220 Slip On Flanges have a flat face (FF) sealing surface, which allows for easy alignment during installation. They are commonly used in applications where ease of assembly and disassembly is required, as they can be easily slipped on and off the pipe or fitting.



These flanges are available in various sizes and pressure ratings, ranging from 10A to 1500A, and pressure ratings of 5K, 10K, 16K, 20K, 30K, 40K, or 63K. The material of construction for JIS B2220 Slip On Flanges can be carbon steel, stainless steel, alloy steel, or other materials as per the customer's requirements.



When constructing a new pipe system or replacing an existing one, JIS B2220 Carbon Steel and Stainless Steel Slip On Flanges can be used to create a seal between two pipes. These fittings are particularly suitable for low-pressure applications as they require less attention and are easier to install compared to weld neck flanges.



JIS B2220 Slip on flanges come in various sizes and styles, commonly made of carbon steel, stainless steel or alloy steel. They may feature a raised face or flat face, offering flexibility in selection based on your specific requirements.



The size of the flange is determined by the diameter of the pipe it is intended to connect. If you are uncertain about the dimensions, it is advisable to seek guidance from a professional to ensure a proper fit. JIS B2220 Slip on flanges are designed to accommodate a wide range of pipe sizes.





JIS B2220 Slip On Flange Dimensions:

JIS B2220 A105 Carbon Steel Stainless Steel ASTM A182 Flat Face Slip On Flanges 20KG/CM2 for Wastewater Treatment Plants 0

JIS B2220 SLIP ON FLANGES 20KG/CM2
Nominal Bore of Flange Outside Diam.of Appli- Cable Pipe Inside Diam. of Flange do Outside Diam.of Flange D Sectional Dimensions of Flange Dia.of Bolt Weight (kg)
t T Diam.of Hub Radius r Raised Face f Diam.of Raised face g Diam. of Bolt Circle C Number of Bolt Holes Hole Diam. h
a b
10A 17.3 17.8 90 14 20 30 32 4 1 46 - 65 4 0.6
15A 21.7 22.2 95 14 20 34 36 4 1 51 - 70 4 0.7
20A 27.2 27.7 100 16 22 40 42 4 1 56 - 75 4 0.8
25A 34.0 34.5 125 16 24 48 50 4 1 67 - 90 4 1.3
32A 42.7 43.2 135 18 26 56 60 5 2 76 - 100 4 1.6
40A 48.6 49.1 140 18 26 62 66 5 2 81 - 105 4 1.7
50A 60.5 61.1 155 18 26 76 80 5 2 96 - 120 8 1.9
65A 76.3 77.1 175 20 30 100 104 5 2 116 65.9 140 8 2.6
80A 89.1 90.0 200 22 34 113 117 6 2 132 78.1 160 8 3.9
90A 101.6 102.6 210 24 36 126 130 6 2 145 90.2 170 8 4.6
100A 114.3 115.4 225 24 36 138 142 6 2 160 102.3 185 8 5.1
125A 139.8 141.2 270 26 40 166 172 6 2 195 126.6 225 8 8.3
150A 165.2 166.6 305 28 42 196 202 6 2 230 151.0 260 12 10.6
200A 216.3 218.0 350 30 46 244 252 6 2 275 199.9 305 12 13.3
250A 267.4 269.5 430 34 52 304 312 6 2 345 248.8 380 12 23.4
300A 318.5 321.0 480 36 56 354 364 8 3 395 297.9 430 16 27.7
350A 355.6 358.1 540 40 62 398 408 8 3 440 333.4 480 16 39.2
400A 406.4 409.0 605 46 70 446 456 10 3 495 381.0 540 16 54.2
450A 457.2 460.0 675 48 78 504 514 10 3 560 431.8 605 20 71.7
500A 508.0 511.0 730 50 84 558 568 10 3 615 482.6 660 20 86.2
550A 558.8 562.0 795 52 90 612 622 10 3 670 533.4 720 20 105.0
600A 609.6 613.0 845 54 96 666 676 10 3 720 584.2 770 24 119.0
650A 660.4 664.0 945 60 - - - - 5 850 820 24 48 -
700A 711.2 715.0 995 64 - - - - 5 900 875 24 48 -
750A 762.0 766.0 1080 68 - - - - 5 970 935 24 56 -
800A 812.8 817.0 1140 72 - - - - 5 1030 990 24 56 -
850A 863.6 868.0 1200 74 - - - - 5 1090 1040 24 56 -
900A 914.4 919.0 1250 76 - - - - 5 1140 1090 28 56 -

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.





Common Grades of JIS B2220 Carbon Steel Slip On Flanges:

ASTM A105: This is a common grade of carbon steel used for slip on flanges. It is a forged carbon steel specifically designed for high-temperature service and offers excellent weldability and toughness.

ASTM A350 LF2: LF2 is a low-temperature carbon steel grade commonly used for slip on flanges in applications where low-temperature toughness is required.

ASTM A694 F52/F60/F65/F70: These grades are high-yield carbon steel materials used for slip on flanges in applications requiring high strength and impact resistance.





Common Grades of JIS B2220 Stainless Steel Slip On Flanges:

ASTM A182 F304/F304L: These grades of stainless steel are austenitic and commonly used for slip on flanges. They offer good corrosion resistance, excellent weldability, and are suitable for a wide range of applications.

ASTM A182 F316/F316L: Similar to F304/F304L, these grades are also austenitic stainless steels with improved corrosion resistance, particularly in chloride environments.

ASTM A182 F321: F321 is an austenitic stainless steel grade containing titanium, which provides enhanced resistance to intergranular corrosion. It is often used for slip on flanges in high-temperature applications.

ASTM A182 F347: F347 is a stabilized stainless steel grade with the addition of niobium, which improves its resistance to intergranular corrosion. It is commonly used for weld neck flanges in applications involving elevated temperatures.





Features of JIS B2220 Carbon Steel and Stainless Steel Slip On Flanges:

Carbon Steel Slip On Flanges:

High Strength: Carbon steel slip on flanges offer excellent strength and durability, making them suitable for applications involving high-pressure and high-temperature conditions.

Cost-Effective: Carbon steel is a relatively affordable material, making carbon steel slip-on flanges a cost-effective option for many industrial applications.

Good Weldability: Carbon steel can be easily welded, allowing for a secure and efficient welding connection during installation. This facilitates the assembly process and ensures a strong joint.

Corrosion Resistance: While carbon steel is not as corrosion-resistant as stainless steel, it still provides adequate resistance to common atmospheric and process-related corrosion. For more corrosive environments, additional protective coatings or linings may be required.

Wide Availability: Carbon steel slip on flanges are readily available in various sizes, pressure ratings, and configurations, making them widely used in a range of industries and applications.



Stainless Steel Slip On Flanges:

Excellent Corrosion Resistance: Stainless steel slip on flanges offer superior corrosion resistance compared to carbon steel. They are resistant to oxidation, rust, and corrosion caused by chemicals and harsh environments. This makes them ideal for applications where corrosion resistance is critical.

Hygienic and Sanitary Applications: Stainless steel is non-porous and easy to clean, making stainless steel slip-on flanges suitable for industries such as food and beverage, pharmaceuticals, and sanitary applications where cleanliness and hygiene are paramount.

Strength and Durability: Stainless steel has good mechanical properties, providing strength and durability in demanding applications. It can withstand high pressures and temperatures, making stainless steel slip-on flanges suitable for a wide range of industrial processes.

Aesthetic Appeal: Stainless steel has an attractive appearance and is often chosen for its aesthetic appeal, making stainless steel slip-on flanges suitable for applications where visual appearance is important.

Material Variety: Stainless steel slip on flanges are available in different grades and alloys, such as 304, 316, and 316L, offering a range of options to meet specific application requirements.



Both carbon steel and stainless steel slip on flanges have their advantages and are selected based on factors such as cost, application requirements, and environmental conditions.





Applications of JIS B2220 Carbon Steel and Stainless Steel Slip On Flanges:

Oil and Gas Industry: Carbon steel and stainless steel slip on flanges are commonly used in the oil and gas industry for various applications such as pipelines, refineries, and petrochemical plants. They are suitable for low to moderate pressure and temperature environments.



Power Generation: Carbon steel and stainless steel slip on flanges find application in power generation facilities, including power plants and thermal power stations. They are used for connecting pipes in steam, water, or gas distribution systems.



Water and Wastewater Treatment: Carbon steel and stainless steel slip on flanges are utilized in water treatment plants, wastewater treatment facilities, and desalination plants. They provide secure connections for pipes carrying water, chemicals, or other fluids.



Construction and Infrastructure: Carbon steel and stainless steel slip on flanges are widely used in construction projects such as buildings, bridges, and infrastructure. They are suitable for connecting pipes in HVAC systems, plumbing, and fire protection systems.



Industrial Processes: Carbon steel and stainless steel slip on flanges are employed in various industrial processes, including manufacturing, chemical processing, and mining. They are used to connect pipes in conveying fluids, gases, or abrasive materials.



Food and Beverage Industry: Carbon steel and stainless steel slip on flanges are commonly used in the food and beverage industry due to their hygienic properties and resistance to corrosion. They are suitable for connecting pipes in processing, bottling, and storage systems.



Chemical Processing: Carbon Steel and stainless steel slip on flanges find application in chemical processing plants where resistance to corrosion and chemical compatibility are essential. They are used for connecting pipes carrying corrosive chemicals, acids, or solvents.
