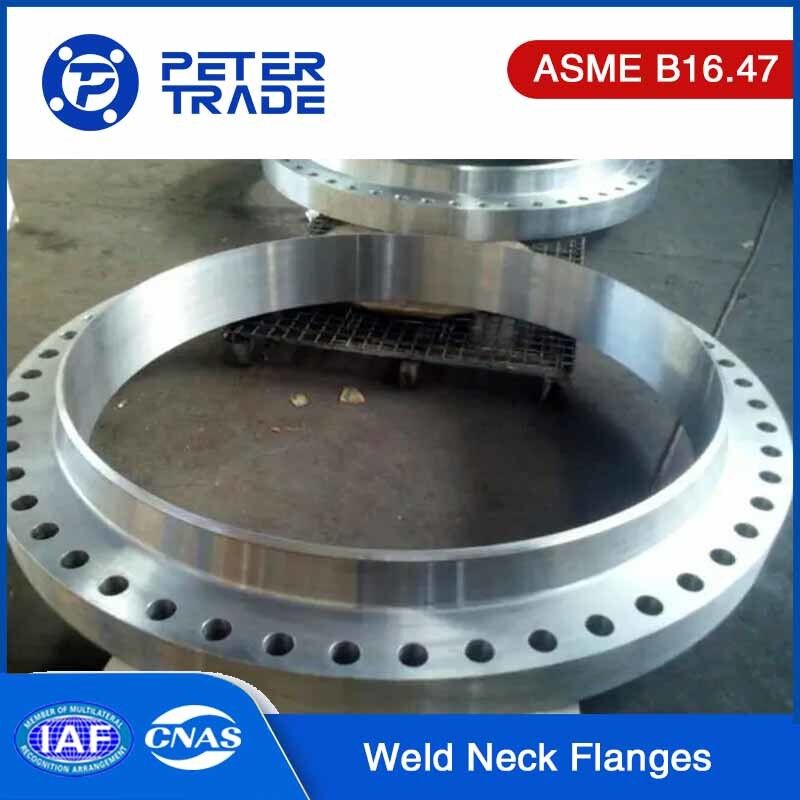

ANSI B16.47 SERIES A Class 300 Carbon Steel Weld Neck Flanges and Blind Flanges
Introduction:
We are Shaanxi Peter International Trade Co., Ltd., a reputable and well-established company of rich experience in the industry. As your reliable supplier, we have been providing high-quality ANSI B16.47 SERIES A FLANGES for more than 20 years in the industry.
Our ANSI B16.47 SERIES A FLANGES are designed to meet the specifications of ASME B16.47 and are made of durable materials, ensuring their high strength and resistance to corrosion.
We prioritize customer satisfaction above all else. We understand the importance of providing reliable and durable products that meet the diverse needs of our clients. Our dedicated team of professionals works tirelessly to ensure that every weld neck flange leaving our facility meets the highest quality standards.Our manufacturing process incorporates advanced technologies and techniques to ensure precise dimensions, excellent surface finishes, and superior corrosion resistance.
Descriptions of ANSI/ASME B16.47 SERIES A Weld Neck Flanges and Blind Flanges:
ASME B16.47 is a standard that governs large diameter steel pipe flanges, including blind flanges and weld neck flanges. The standard is divided into two series: Series A and Series B. The previous API 605 flanges are now classified as Series B flanges under ASME B16.47.
This standard applies to flanges ranging from NPS 26 (Nominal Pipe Size) through NPS 60 and provides dimensions and ratings in both metric and inch units.
ASME B16.47 not only includes its own provisions but also incorporates two other related standards: MSS SP-44 (Steel Pipeline Flanges) and API 605 (Large Diameter Carbon Steel Flanges). Consequently, the flanges specified in MSS SP-44 are designated as ASME B16.47 Series A flanges, while those specified in API 605 are categorized as ASME B16.47 Series B flanges within this standard.
ANSI B16.47 SERIES A Weld Neck Flanges and Blind Flanges Dimensions:
ANSI/ASME B16.47 SERIES A CLASS 300 | |||||||||||||
Nominal Pipe size | Outside Diameter | O.D.of Raised Face | Diameter at base of Hub | Thickness | Bore | Length | Dia of Hub Top | Drilling |
Weight (lb) |
||||
D | G | X | t/T | B1 | T1 | A | Bolt Circle Dia | Number of holes | Dia of holes | Weld Neck | Blind | ||
26 | 971.6 | 749.3 | 720.9 | 78.0 | 82.6 | 182.63 | 660.4 | 876.3 | 28 | 44.5 | 605 | 1078 | |
28 | 1035.1 | 800.1 | 774.7 | 84.3 | 88.9 | 195.33 | 711.2 | 939.8 | 28 | 44.5 | 745 | 1315 | |
30 | 1092.2 | 857.3 | 827.0 | 90.7 | 93.7 | 208.03 | 762.0 | 997.0 | 28 | 47.8 | 870 | 1543 | |
32 | 1149.4 | 914.4 | 881.1 | 97.0 | 98.6 | 220.73 | 812.8 | 1054.1 | 28 | 50.8 | 1005 | 1795 | |
34 | 1206.5 | 965.2 | 936.8 | 100.1 | 103.4 | 230.38 | 863.6 | 1104.9 | 28 | 50.8 | 1145 | 2068 | |
36 | 1270.0 | 1022.4 | 990.6 | 103.4 | 109.7 | 239.78 | 914.4 | 1168.4 | 32 | 53.8 | 1275 | 2436 | |
38 | 1168.4 | 1028.7 | 993.6 | 106.4 | 106.4 | 179.32 | 965.2 | 1092.2 | 32 | 41.1 | 695 | 2001 | |
40 | 1238.3 | 1085.9 | 1047.8 | 112.8 | 112.8 | 192.02 | 1016.0 | 1155.7 | 32 | 44.5 | 840 | 2380 | |
42 | 1289.1 | 1136.7 | 1098.6 | 117.6 | 117.6 | 198.63 | 1066.8 | 1206.5 | 32 | 44.5 | 950 | 2688 | |
44 | 1352.6 | 1193.8 | 1149.4 | 122.4 | 122.4 | 204.72 | 1117.6 | 1263.7 | 32 | 47.8 | 1055 | 3079 | |
46 | 1416.1 | 1244.6 | 1203.5 | 127.0 | 127.0 | 214.38 | 1168.4 | 1320.8 | 28 | 50.8 | 1235 | 3499 | |
48 | 1466.9 | 1301.8 | 1254.3 | 131.8 | 131.8 | 222.25 | 1219.2 | 1371.6 | 32 | 50.8 | 1380 | 3896 | |
50 | 1530.4 | 1358.9 | 1305.1 | 138.2 | 138.2 | 230.38 | 1270.0 | 1428.8 | 32 | 53.8 | 1530 | 4442 | |
52 | 1581.2 | 1409.7 | 1355.9 | 143.0 | 143.0 | 236.73 | 1320.8 | 1479.6 | 32 | 53.8 | 1660 | 4906 | |
54 | 1657.4 | 1466.9 | 1409.7 | 150.9 | 150.9 | 250.95 | 1371.6 | 1549.4 | 28 | 60.5 | 2050 | 5684 | |
56 | 1708.2 | 1517.7 | 1463.5 | 152.4 | 152.4 | 258.83 | 1422.4 | 1600.2 | 28 | 60.5 | 2155 | 6098 | |
58 | 1759.0 | 1574.8 | 1514.3 | 157.2 | 157.2 | 265.18 | 1473.2 | 1651.0 | 32 | 60.5 | 2270 | 6669 | |
60 | 1809.8 | 1625.6 | 1565.1 | 162.1 | 162.1 | 271.53 | 1524.0 | 1701.8 | 32 | 60.5 | 2470 | 7274 |
1.Dimensions are in millimeters(mm).
2.B1 can be specified by different purchasers.
Advantages of ASME B16.47 Carbon Steel Weld Neck Flanges and Blind Flanges:
ASME B16.47 Carbon Steel Weld Neck Flanges and Blind Flanges offer several advantages in various industrial applications. Here are some key advantages:
Durability and Strength: Carbon steel is known for its excellent strength and durability, making ASME B16.47 flanges highly resistant to mechanical stress and pressure. They can withstand high-temperature and high-pressure conditions commonly found in industrial environments.
Secure and Leak-Proof Connections: Weld neck flanges provide a secure and reliable connection between pipes or equipment. The extended neck of the flange provides reinforcement and reduces the risk of leakage. Blind flanges, on the other hand, seal off the end of a pipe or opening, ensuring a tight and leak-proof closure.
Compatibility: ASME B16.47 flanges are designed to be compatible with a wide range of piping systems, valves, and equipment. They can be easily integrated into existing systems or used in new installations, providing flexibility and convenience in various industrial applications.
Versatility: Carbon steel weld neck flanges and blind flanges are suitable for a wide range of industries, including oil and gas, petrochemical, power generation, chemical processing, and more. They can handle different types of fluids, gases, and corrosive substances, making them versatile for diverse applications.
Standardized Design: ASME B16.47 flanges adhere to standardized dimensions and ratings, ensuring interchangeability and compatibility across different manufacturers. This standardization simplifies procurement, installation, and maintenance processes, reducing the chances of errors and mismatches.
Long Service Life: Carbon steel flanges are known for their longevity and resistance to corrosion, which extends the service life of the flanges. This reduces the need for frequent replacements and maintenance, resulting in cost savings for industrial operations.
Safety and Reliability: ASME B16.47 flanges undergo rigorous testing and quality control measures to ensure their safety and reliability. They are designed to meet industry standards and regulations, providing peace of mind in terms of performance and operational integrity.
Grades of Carbon Steel Flanges:
American standard carbon steel flanges are flanges made of carbon steel and are widely used in industries such as petroleum, chemical, natural gas, shipbuilding, construction, and water conservancy. Its carbon steel grades are usually divided into the following parts:
1.Q235: Q235 is a commonly used carbon structural steel grade specified in the Chinese national standard GB/T 700. It is often used in general engineering structures and manufacturing industries. In carbon steel flanges, Q235 material is commonly used for pipeline systems operating at low pressure, low temperature, and non-critical stress environments.
2.A105: A105 is a carbon steel material specified in the American ASTM standard, complying with ASTM A105/A105M requirements. A105 material has good weldability and mechanical properties, making it suitable for use in a wide temperature range from low to high temperatures. It is commonly used for pipeline systems and valve connections under high temperature and high-pressure conditions.
3.A350 LF2: A350 LF2 is also a carbon steel material specified in the ASTM standard, complying with ASTM A350/A350M requirements. LF2 indicates low-temperature service, and this material has good low-temperature toughness and crack resistance. It is commonly used for pipeline systems and valve connections under low-temperature conditions.
4.A694 F42/F52/F60/F65/F70: These material grades are specified in the ASTM A694 standard for carbon steel materials used in high-strength, low-temperature, or normal temperature high-pressure pipeline systems and valve connections. Different grades of materials have different strengths and corrosion resistance properties, suitable for various working conditions.
5.ASTM A181 Gr.1/Gr.2: These carbon steel flange material grades are suitable for pressure vessels, valves, and pipeline fittings under low pressure and low temperature conditions. They have good machinability and mechanical performance.
6.ASTM A516 Gr.70: Gr.70 is a commonly used medium carbon steel grade, known for its good weldability and machinability, suitable for manufacturing flanges and pipe fittings, among others.
7.A216 WCB: A216 WCB is a carbon steel casting material specified in the American ASTM standard, complying with ASTM A216/A216M requirements. WCB stands for cast carbon steel, and it is commonly used for carbon steel flanges that require casting in general engineering structures and manufacturing industries.
These material grades mentioned above are only a part of the commonly used ones, and there are other material grades in practical applications. When selecting the material grade for carbon steel flanges, it is necessary to consider engineering requirements, temperature, pressure, medium, and the requirements of relevant standards to ensure that the flange material meets the corresponding performance and safety requirements.
Applications of ASME B16.47 Carbon Steel Weld Neck Flanges and Blind Flanges:
ASME B16.47 Carbon Steel Weld Neck Flanges and Blind Flanges, whether in Series A or Series B, have several applications across various industries.
Oil and Gas Industry: Weld Neck Flanges and Blind Flanges are extensively used in the oil and gas industry for pipeline connections, storage tanks, and refineries. They provide a secure and leak-proof connection for high-pressure and high-temperature applications.
Petrochemical Industry: ASME B16.47 Carbon Steel Flanges are widely employed in petrochemical plants for connecting pipes, valves, and equipment. They ensure reliable and durable connections in processing units, such as distillation columns, reactors, and heat exchangers.
Power Generation: Weld Neck and Blind Flanges are utilized in power plants, including thermal power plants, nuclear power plants, and renewable energy facilities. They are used in pipeline systems, steam turbines, boilers, and other equipment, providing robust connections in demanding operating conditions.
Chemical Industry: Carbon Steel Flanges find applications in the chemical industry for handling corrosive fluids and chemicals. They are used in chemical processing plants, storage tanks, and transportation systems, ensuring the safe and efficient flow of various substances.
Water and Wastewater Treatment: ASME B16.47 Flanges are employed in water treatment facilities, wastewater treatment plants, and desalination plants. They are used for connecting pipes, valves, and pumps, providing secure and leak-free connections in water distribution and treatment systems.
Mining and Minerals: Carbon Steel Flanges are utilized in mining operations for transporting minerals, ores, and slurries. They are employed in pipelines, crushers, conveyors, and other equipment, enabling efficient material handling and processing.
Construction and Infrastructure: Weld Neck and Blind Flanges are used in construction projects and infrastructure development, including buildings, bridges, and pipelines. They ensure reliable connections in plumbing systems, HVAC systems, and water supply networks.
