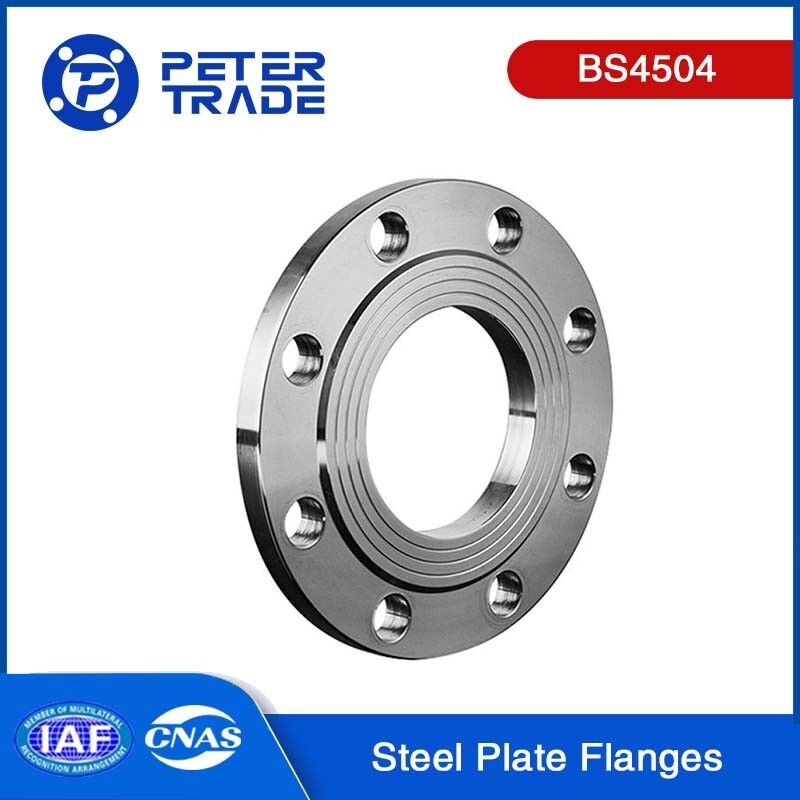

BS4504 CODE101 PN10 Carbon Steel Plate Flanges PLRF for Industrial Applications
Introduction:
Shaanxi Peter International Trade Co., Ltd. is a highly regarded and well-established supplier with a proven track record of over 20 years in the market. We have earned a strong reputation as a trusted and reliable source for BS4504 Carbon Steel Plate Flanges.
With our extensive experience, we understand the importance of providing excellent service to our customers. We have cultivated long-standing relationships by offering competitive pricing, prompt delivery, and personalized support. Our team of experts is dedicated to assisting customers throughout the entire procurement process, from product selection to after-sales service.
Quality control and assurance are paramount to us as a reputable supplier. Our BS4504 Carbon Steel Plate Flanges undergo stringent testing and inspection to ensure durability, precision, and compliance with relevant standards. We work closely with trusted manufacturers who share our commitment to delivering reliable and superior products.
We strive to exceed customer expectations and provide the highest level of satisfaction. We are confident in our ability to meet your BS4504 Carbon Steel Plate Flange requirements with top-notch products and exceptional service.
Description of BS4504 Carbon Steel Plate Flanges:
BS4504 Carbon Steel Plate flanges are a cost-effective solution commonly utilized in applications with minimal to no pressure at ambient temperatures, particularly when raised faces and hubs are unnecessary. These flanges provide the benefit of space efficiency due to their typically slender profile.
Strength and Durability: Carbon steel is known for its high strength and durability. BS4504 Carbon Steel Plate Flanges are designed to withstand high-pressure environments, making them suitable for applications with demanding operational conditions.
Corrosion Resistance: Carbon steel plate flanges can be manufactured with protective coatings or linings to enhance their resistance to corrosion. This helps prevent degradation and extends the lifespan of the flanges, reducing maintenance and replacement costs.
Wide Range of Sizes: BS4504 specifies a comprehensive range of sizes for carbon steel plate flanges, allowing for flexibility in designing and constructing pipeline systems. This ensures compatibility with various pipe sizes and facilitates easy integration into existing infrastructure.
Interchangeability: BS4504 Carbon Steel Plate Flanges adhere to a standardized design, ensuring interchangeability with other flanges manufactured to the same standard. This simplifies the process of replacing or upgrading flanges within a pipeline system and reduces downtime during maintenance or repairs.
Cost-Effective: Carbon steel is generally more cost-effective compared to other materials, making BS4504 Carbon Steel Plate Flanges a cost-efficient choice for many applications. Their durability and resistance to wear and tear also contribute to long-term cost savings.
Industry Recognition: BS4504 is a widely recognized and accepted standard in the industry. Opting for BS4504 Carbon Steel Plate Flanges ensures compliance with established standards, facilitating compatibility, and providing assurance of quality and performance.
Versatility: Carbon steel plate flanges can be used in a wide range of industries and applications, including oil and gas, petrochemical, water treatment, and more. Their versatility makes them suitable for various fluid handling systems and piping networks.
Easy Installation: BS4504 Carbon Steel Plate Flanges are designed for straightforward installation, with standardized dimensions and bolt hole patterns. This simplifies the assembly process and reduces installation time and effort.
The testing and inspection process for BS4504 Carbon Steel Plate Flanges:
The testing and inspection process for BS4504 Carbon Steel Plate Flanges typically involves various quality control measures to ensure the flanges meet the required standards and specifications. Here are some common tests and inspections conducted during the manufacturing and quality assurance process:
Dimensional Inspection: This involves verifying the flange's dimensions, including diameter, thickness, bolt hole patterns, and facing types, to ensure they comply with the specified requirements of BS4504.
Visual Inspection: Flanges are visually inspected for any visible defects such as cracks, surface irregularities, or imperfections that could affect their performance or integrity.
Material Verification: The material used for manufacturing the flanges is verified through material certificates and chemical composition analysis. This ensures that the carbon steel used meets the required specifications.
Mechanical Testing: Various mechanical tests may be performed, such as tensile testing and hardness testing, to assess the strength, ductility, and mechanical properties of the carbon steel plate flanges.
Non-Destructive Testing (NDT): NDT techniques like ultrasonic testing (UT) or magnetic particle testing (MPT) may be employed to detect any internal or surface defects that are not visible to the naked eye.
Pressure Testing: Flanges may undergo hydrostatic or pneumatic pressure testing to determine their ability to withstand specified pressure levels without leakage.
Corrosion Resistance Testing: Coated or lined flanges may undergo corrosion resistance testing to evaluate their ability to withstand corrosive environments and protect the underlying carbon steel material.
Documentation and Certification: Proper documentation, including test reports, material certificates, and compliance certificates, is provided to validate the testing and inspection processes and ensure traceability.
BS4504 Carbon Steel Plate Flange Dimensions:
BS 4504 CODE 101 PLATE FLANGES PN 10 PLRF | |||||||||
DN | Outside Diameter | O.D.of Raised Face |
Height of Raised Face |
Thickness | Diameter of bolt circle |
Diameter of bolt hole |
Number of holes | Size |
Weight
|
D | D4 | f | t | K | D2 | N | S | KG | |
10 | 90 | 40 | 2 | 14 | 60 | 14 | 4 | M12 | 0.5 |
15 | 95 | 45 | 2 | 14 | 65 | 14 | 4 | M12 | 0.6 |
20 | 105 | 58 | 2 | 16 | 75 | 14 | 4 | M12 | 0.9 |
25 | 115 | 68 | 2 | 16 | 85 | 14 | 4 | M12 | 1.0 |
32 | 140 | 78 | 2 | 18 | 100 | 18 | 4 | M16 | 1.7 |
40 | 150 | 88 | 3 | 18 | 110 | 18 | 4 | M16 | 1.8 |
50 | 165 | 102 | 3 | 20 | 125 | 18 | 4 | M16 | 2.5 |
65 | 185 | 122 | 3 | 20 | 145 | 18 | 4 / 8 | M16 | 3.0 |
80 | 200 | 138 | 3 | 20 | 160 | 18 | 8 | M16 | 3.3 |
100 | 220 | 162 | 3 | 22 | 180 | 18 | 8 | M16 | 4.0 |
125 | 250 | 188 | 3 | 22 | 210 | 18 | 8 | M16 | 5.0 |
150 | 285 | 212 | 3 | 24 | 240 | 22 | 8 | M20 | 6.6 |
200 | 340 | 268 | 3 | 24 | 295 | 22 | 8 | M20 | 8.5 |
250 | 395 | 320 | 3 | 26 | 350 | 22 | 12 | M20 | 11.0 |
300 | 445 | 370 | 4 | 28 | 400 | 22 | 12 | M20 | 12.3 |
350 | 505 | 430 | 4 | 28 | 460 | 22 | 16 | M20 | 18.9 |
400 | 565 | 482 | 4 | 32 | 515 | 26 | 16 | M24 | 25.7 |
450 | 615 | 532 | 4 | 36 | 565 | 26 | 20 | M24 | 31.6 |
500 | 670 | 585 | 4 | 38 | 620 | 26 | 20 | M24 | 38.0 |
600 | 780 | 685 | 5 | 42 | 725 | 30 | 20 | M27 | 50.8 |
700 | 895 | 800 | 5 | - | 840 | 30 | 24 | M27 | - |
800 | 1015 | 905 | 5 | - | 950 | 33 | 24 | M30 | - |
900 | 1115 | 1005 | 5 | - | 1050 | 33 | 28 | M30 | - |
1000 | 1230 | 1110 | 5 | - | 1160 | 36 | 28 | M33 | - |
1200 | 1455 | 1330 | 5 | - | 1380 | 39 | 32 | M36 | - |
1400 | 1675 | 1535 | 5 | - | 1590 | 42 | 36 | M39 | - |
1600 | 1915 | 1760 | 5 | - | 1820 | 48 | 40 | M45 | - |
1800 | 2115 | 1960 | 5 | - | 2020 | 48 | 44 | M45 | - |
2000 | 2325 | 2170 | 5 | - | 2230 | 48 | 48 | M45 | - |
2200 | 2550 | 2370 | 6 | - | 2440 | 56 | 52 | M52 | - |
2400 | 2760 | 2570 | 6 | - | 2650 | 56 | 56 | M52 | - |
2600 | 2960 | 2780 | 6 | - | 2850 | 56 | 60 | M52 | - |
2800 | 3180 | 3000 | 6 | - | 3070 | 56 | 64 | M52 | - |
3000 | 3405 | 3210 | 6 | - | 3290 | 62 | 68 | M56 | - |
1.Dimensions are in millimeters(mm).
2.Dimensions can be specified by different purchasers.
Applications of BS4504 Carbon Steel Plate Flanges:
BS4504 carbon steel plate flanges find applications in various industries and piping systems. Some common applications of BS4504 carbon steel plate flanges include:
General Industrial Piping: Carbon steel plate flanges are widely used in general industrial piping systems for the connection of pipes, valves, and equipment. They provide a secure and leak-tight connection and are suitable for a range of applications in sectors such as manufacturing, power generation, oil and gas, chemical processing, and water treatment.
Plumbing and HVAC Systems: BS4504 carbon steel plate flanges are commonly used in plumbing and HVAC (Heating, Ventilation, and Air Conditioning) systems for joining pipes and components. These flanges provide a reliable connection and facilitate maintenance and repairs in residential, commercial, and institutional buildings.
Water and Wastewater Treatment: Carbon steel plate flanges are utilized in water treatment plants, wastewater treatment facilities, and distribution systems. They are suitable for handling water, chemicals, and slurry applications where corrosion resistance is not the primary concern.
Petrochemical and Refining Industry: BS4504 carbon steel plate flanges are employed in the petrochemical and refining industry for connecting pipelines and equipment. They are commonly used in applications involving the transport of oil, gas, and other hydrocarbon products.
Power Generation: Carbon steel plate flanges are used in power generation facilities, including thermal power plants, nuclear power plants, and renewable energy installations. They are employed for connecting pipes and components in various systems, such as steam, water, and gas distribution.
Shipbuilding and Marine Industry: BS4504 carbon steel plate flanges are utilized in shipbuilding and marine applications for connecting piping systems on ships, offshore platforms, and marine structures. These flanges provide a robust and reliable connection in demanding marine environments.
