Product Details
Place of Origin: Xi'an, Shaanxi Province, China
Brand Name: PeterTrade(PT)
Payment & Shipping Terms
Minimum Order Quantity: 1-10 Pieces
Price: negotiable
Packaging Details: Wooden Case,plywood Case,pallet Etc.
Delivery Time: about 15-45 days, accordingly
Payment Terms: D/A, T/T, L/C,D/P
Supply Ability: 100-200 Ton/Tons Per Month
Product Standard: |
BS4504 CODE101 Plate Flanges |
Material: |
Carbon Steel, Stainless Steel, Alloy Steel And Others As Per Your Requirement |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Pressure: |
PN 2.5 |
Size: |
From DN10 To DN2000 |
Manufacturing Methods: |
Casting, Forging, Casting And Forging, Medium Plate Cutting, Casting |
Applications: |
Chemical, Oil And Gas, Wastewater Treatment And Environmental Protection, Pharmaceutical And Food, Power And Heating Industry |
Export Countries: |
European Countries And Other Countries Around The World |
Product Standard: |
BS4504 CODE101 Plate Flanges |
Material: |
Carbon Steel, Stainless Steel, Alloy Steel And Others As Per Your Requirement |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Pressure: |
PN 2.5 |
Size: |
From DN10 To DN2000 |
Manufacturing Methods: |
Casting, Forging, Casting And Forging, Medium Plate Cutting, Casting |
Applications: |
Chemical, Oil And Gas, Wastewater Treatment And Environmental Protection, Pharmaceutical And Food, Power And Heating Industry |
Export Countries: |
European Countries And Other Countries Around The World |

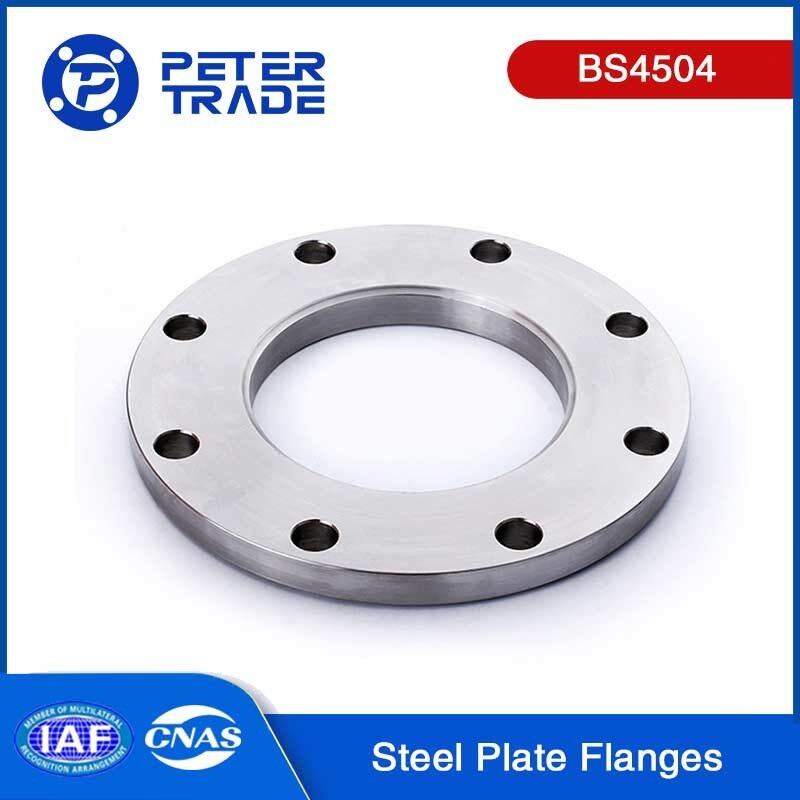

BS4504 CODE101 PN2.5 Carbon Steel Plate Flanges PLRF for Industrial Applications
Introduction:
Our company, Shaanxi Peter International Trade Co., Ltd. is a well-known and respected supplier in the market, with a strong track record spanning over 20 years. Our extensive experience has allowed us to establish ourselves as a trusted and reliable source for BS4504 Carbon Steel Plate Flanges.
We understand the importance of providing excellent service to our customers. We have built long-lasting relationships with clients by offering competitive pricing, prompt delivery, and personalized support. Our team of experts is dedicated to assisting customers throughout the entire procurement process, from product selection to after-sales service.
As a reputable supplier, we prioritize quality control and assurance. Our BS4504 Carbon Steel Plate Flanges undergo rigorous testing and inspection to ensure durability, precision, and compliance with relevant standards. We work closely with trusted manufacturers who share our commitment to delivering reliable and superior products.
Description of BS4504 Carbon Steel Plate Flanges:
BS4504 Carbon Steel Plate flanges are a cost-effective solution commonly used in applications with little to no pressure at ambient temperatures, especially when raised faces and hubs are not required. These flanges offer the advantage of space efficiency due to their typically thinner profile.
BS4504 Carbon Steel Plate flanges are fabricated by cutting a flat piece of metal into a circular disc shape and are widely used across various industries, including oil and gas, to connect pipes and provide protection against external factors. As compared to other types of flanges, carbon steel plate flanges have a larger circumference, making them capable of withstanding higher pressure levels. They are renowned for their strength as they are capable of creating robust connections between pipes of different sizes and can withstand extreme temperature variations. Plate flanges can be made from several types of metals, such as carbon steel, stainless steel, and alloy steels, among others.
The Importance of BS4504 Carbon Steel Plate Flanges:
BS4504 is a British standard that specifies the requirements for carbon steel plate flanges used in pipeline systems. Carbon steel plate flanges play a vital role in various industries, and their adherence to standards such as BS4504 ensures their reliability and compatibility. Here are some key points highlighting the importance of BS4504 carbon steel plate flanges:
Standardization: BS4504 provides a standardized set of requirements for carbon steel plate flanges, including dimensions, materials, pressure ratings, and facing types. This standardization ensures consistency in design, manufacturing, and interchangeability of flanges from different manufacturers.
Compatibility: BS4504 carbon steel plate flanges are designed to be compatible with other components in pipeline systems, such as pipes, valves, and fittings. This compatibility ensures a proper fit and reliable connection between different elements, preventing leaks and ensuring the overall integrity of the system.
Reliability and Performance: By adhering to BS4504, carbon steel plate flanges are manufactured to meet specific quality and performance standards. This ensures their reliability, strength, and durability, allowing them to withstand the demands of various applications, including high-pressure and temperature environments.
Safety: Carbon steel plate flanges, when manufactured according to BS4504, undergo rigorous testing and quality control procedures. This helps ensure their safety and reduces the risk of failures or accidents in pipeline systems. Compliance with the standard contributes to the overall safety of the installation and operation of the flanges.
Industry Acceptance: BS4504 is widely recognized and accepted within the industry. By using carbon steel plate flanges that conform to this standard, it becomes easier to source compatible components, find technical information, and ensure compliance with relevant regulations and codes.
BS4504 Carbon Steel Plate Flange Dimensions:
BS 4504 CODE 101 PLATE FLANGES PN 2.5 PLRF | ||||||||
DN | Outside Diameter | O.D.of Raised Face |
Height of Raised Face |
Thickness | Diameter of bolt circle |
Diameter of bolt hole |
Number of holes | Size |
D | D4 | f | t | K | D2 | N | S | |
10 | 75 | 35 | 2 | 12 | 50 | 11 | 4 | M10 |
15 | 80 | 40 | 2 | 12 | 55 | 11 | 4 | M10 |
20 | 90 | 50 | 2 | 14 | 65 | 11 | 4 | M10 |
25 | 100 | 60 | 2 | 14 | 75 | 11 | 4 | M10 |
32 | 120 | 70 | 2 | 16 | 90 | 14 | 4 | M12 |
40 | 130 | 80 | 3 | 16 | 100 | 14 | 4 | M12 |
50 | 140 | 90 | 3 | 16 | 110 | 14 | 4 | M12 |
65 | 160 | 110 | 3 | 16 | 130 | 14 | 4 | M12 |
80 | 190 | 128 | 3 | 18 | 150 | 18 | 4 | M16 |
100 | 210 | 148 | 3 | 18 | 170 | 18 | 4 | M16 |
125 | 240 | 178 | 3 | 20 | 200 | 18 | 8 | M16 |
150 | 265 | 202 | 3 | 20 | 225 | 18 | 8 | M16 |
200 | 320 | 258 | 3 | 22 | 280 | 18 | 8 | M16 |
250 | 375 | 312 | 3 | 24 | 335 | 18 | 12 | M16 |
300 | 440 | 365 | 4 | 24 | 395 | 22 | 12 | M20 |
350 | 490 | 415 | 4 | 26 | 445 | 22 | 12 | M20 |
400 | 540 | 465 | 4 | 28 | 495 | 22 | 16 | M20 |
450 | 595 | 520 | 4 | 30 | 550 | 22 | 16 | M20 |
500 | 645 | 570 | 4 | 30 | 600 | 22 | 20 | M20 |
600 | 755 | 670 | 5 | 32 | 705 | 26 | 20 | M24 |
700 | 860 | - | 5 | 36 | 810 | 26 | 24 | M24 |
800 | 975 | - | 5 | 38 | 920 | 30 | 24 | M27 |
900 | 1075 | - | 5 | 40 | 1020 | 30 | 24 | M27 |
1000 | 1175 | - | 5 | 42 | 1120 | 30 | 28 | M27 |
1200 | 1375 | - | 5 | 44 | 1320 | 30 | 32 | M27 |
1400 | 1575 | - | 5 | 48 | 1520 | 30 | 36 | M27 |
1600 | 1790 | - | 5 | 51 | 1730 | 30 | 40 | M27 |
1800 | 1990 | - | 5 | 54 | 1930 | 30 | 44 | M27 |
2000 | 2190 | - | 5 | 58 | 2130 | 30 | 48 | M27 |
1.Dimensions are in millimeters(mm).
2.Dimensions can be specified by different purchasers.
Applications of BS4504 Carbon Steel Plate Flanges:
BS4504 carbon steel plate flanges find applications in various industries and piping systems. Some common applications of BS4504 carbon steel plate flanges include:
General Industrial Piping: Carbon steel plate flanges are widely used in general industrial piping systems for the connection of pipes, valves, and equipment. They provide a secure and leak-tight connection and are suitable for a range of applications in sectors such as manufacturing, power generation, oil and gas, chemical processing, and water treatment.
Plumbing and HVAC Systems: BS4504 carbon steel plate flanges are commonly used in plumbing and HVAC (Heating, Ventilation, and Air Conditioning) systems for joining pipes and components. These flanges provide a reliable connection and facilitate maintenance and repairs in residential, commercial, and institutional buildings.
Water and Wastewater Treatment: Carbon steel plate flanges are utilized in water treatment plants, wastewater treatment facilities, and distribution systems. They are suitable for handling water, chemicals, and slurry applications where corrosion resistance is not the primary concern.
Petrochemical and Refining Industry: BS4504 carbon steel plate flanges are employed in the petrochemical and refining industry for connecting pipelines and equipment. They are commonly used in applications involving the transport of oil, gas, and other hydrocarbon products.
Power Generation: Carbon steel plate flanges are used in power generation facilities, including thermal power plants, nuclear power plants, and renewable energy installations. They are employed for connecting pipes and components in various systems, such as steam, water, and gas distribution.
Shipbuilding and Marine Industry: BS4504 carbon steel plate flanges are utilized in shipbuilding and marine applications for connecting piping systems on ships, offshore platforms, and marine structures. These flanges provide a robust and reliable connection in demanding marine environments.
