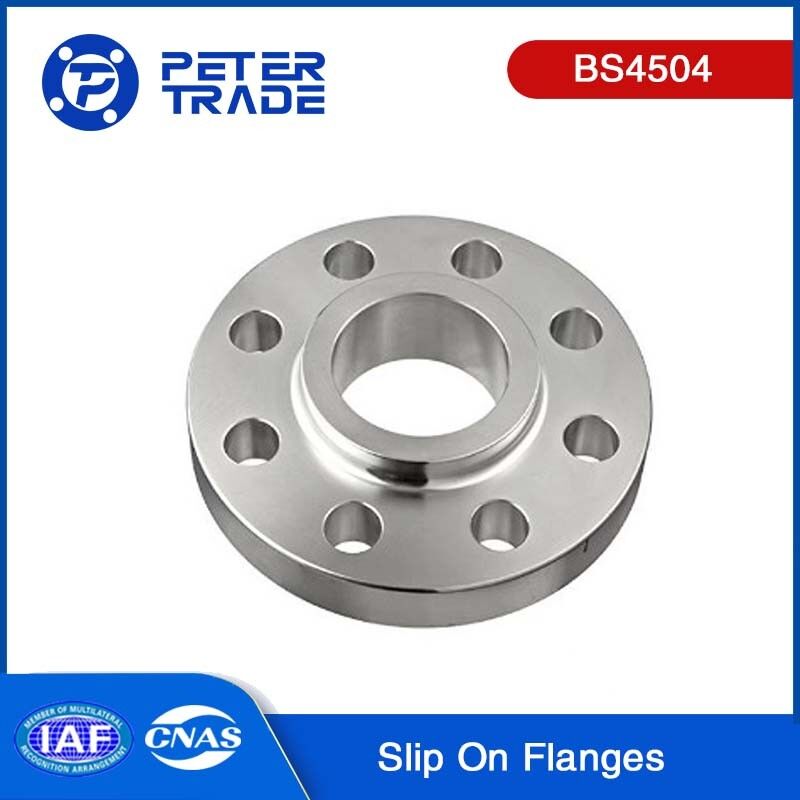

BS4504 PN 25 Code 112 A105 A182 CS And SS Slip On Flanges SORF Raised Face For Petrochemical Industry

Product Details

Place of Origin: Xi'an, Shaanxi Province, China

Brand Name: PeterTrade(PT)

Payment & Shipping Terms

Minimum Order Quantity: 1-10 Pieces

Price: negotiable

Packaging Details: Wooden Case,plywood Case,pallet Etc.

Delivery Time: about 15-45 days, accordingly

Payment Terms: D/A, T/T, L/C,D/P

Supply Ability: 100-200 Ton/Tons Per Month

Get Best Price
Highlight:

BS4504 PN 25 CS Slip On Flanges

,

SS Slip On Flanges SORF

,

petrochemical Code 112 SS Slip On Flanges

Product Type:
BS4504 Slip On Flanges (SORF)
Product Face Type:
Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF)
Material:
Carbon Steel Flanges And Stainless Steel Flanges And Others
Pressure:
PN 25
Size:
DN10-2000
Manufacturing Methods:
Casting, Forging, Casting And Forging, Medium Plate Cutting, Casting
Usages:
Petrochemical, Pipe Engineering, Public Services And Water Works.
Export Countries::
UK, European Countries And Others In The World
Product Type:
BS4504 Slip On Flanges (SORF)
Product Face Type:
Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF)
Material:
Carbon Steel Flanges And Stainless Steel Flanges And Others
Pressure:
PN 25
Size:
DN10-2000
Manufacturing Methods:
Casting, Forging, Casting And Forging, Medium Plate Cutting, Casting
Usages:
Petrochemical, Pipe Engineering, Public Services And Water Works.
Export Countries::
UK, European Countries And Others In The World
BS4504 PN 25 Code 112 A105 A182 CS And SS Slip On Flanges SORF Raised Face For Petrochemical Industry

BS4504 PN 25 Code 112 Carbon Steel and Stainless Steel Slip On Flanges SORF for Industrial Purposes



Introduction:

With a solid track record spanning over two decades, Shaanxi Peter International Trade Co., Ltd. has built a strong reputation as a leading supplier in the market. Our expertise lies in providing BS4504 Carbon Steel and Stainless Steel Slip On Flanges to meet the diverse needs of our customers.



Recognizing the significance of delivering high-quality products, we go above and beyond to ensure meticulous material selection and strict adherence to quality control processes at every stage of manufacturing and inspection. Our slip on flanges, crafted with precision, fully comply with BS4504 standards, guaranteeing reliability and durability across various industrial applications.



We cater to a wide range of industries, including shipbuilding, power generation, petrochemical plants, oil refineries, wastewater treatment plants, paper mills, pharmaceutical plants, and turnkey projects.





Description of BS4504 Slip On Flanges:

The slip on flange serves as a straightforward and effective substitute for a weld neck flange due to its lack of a weld bevel, allowing for adjustments in pipe length relative to the flange position. The bore of the slip-on provides ample space for the pipe to fit, offering sufficient working space for welders and fabricators during installation.



This type of flange is commonly used in applications with lower pressure requirements. Most slip on flanges feature a hub that resembles a raised face in terms of dimensions. However, they can also be supplied without a hub for space-constrained situations, using a "ring style" slip on instead. While the hub style is more prevalent, a ring-style slip-on without a hub still falls under the slip on flange category and can be specified accordingly. In higher pressure classes, slip on flanges are often designed with a lap joint height for improved connections. When hub height is not a concern and lap joint isn't readily available, customers may opt for a slip-on designed in a lap joint style with a machined hub.



Slip on flanges are predominantly used in lower pressure systems and are less common in high-stress applications where a stronger connection is required. This is because slip-on flanges accommodate pipe joints with fillet welds, while weld neck flanges feature a reinforced hub at the base for a weld bevel connection directly to the pipe's butt weld end. The tapered hub of a weld neck flange provides enhanced strength in environments with mechanical stress.





BS4504 Code 112 Slip On Flange Dimensions:

BS4504 PN 25 Code 112 A105 A182 CS And SS Slip On Flanges SORF Raised Face For Petrochemical Industry 0







BS4504 CODE 112 Slip-On Flanges PN 25 SORF
DN Outside Diameter O.D.of Raised Face



Height of Raised Face

Neck

Diameter

Thickness Dia Counter Bore Length of Flange Bolt circle diameter Number of holes Diameter of Bolt



Radius of Corners





Weight



D G f X t B2 T2 K Numbers L R1 KG
10 90 40 2 30 16 18.0 22 60 4 14 3 0.6
15 95 45 2 35 16 22.0 22 65 4 14 3 0.7
20 105 58 2 45 18 27.5 26 75 4 14 4 1.0
25 115 68 2 52 18 34.5 28 85 4 14 4 1.3
32 140 78 2 60 18 43.5 30 100 4 18 5 1.8
40 150 88 3 70 18 49.5 32 110 4 18 5 2.1
50 165 102 3 84 20 61.5 34 125 4 18 5 2.7
65 185 122 3 104 22 77.5 38 145 8 18 6 3.6
80 200 138 3 118 24 90.5 40 160 8 18 6 4.6
100 235 162 3 145 24 116.0 44 190 8 22 6 6.1
125 270 188 3 170 26 141.5 48 220 8 26 6 8.2
150 300 218 3 200 28 170.5 52 250 8 26 8 10.5
200 360 278 3 256 30 221.5 52 310 12 26 8 14.8
250 425 335 3 310 32 276.5 60 370 12 30 10 20.8
300 485 395 4 364 34 327.5 67 430 16 30 10 27.4
350 555 450 4 418 38 359.5 72 490 16 33 10 45.2
400 620 505 4 472 40 411.0 78 550 16 36 10 58.0
450 670 555 4 520 42 462.0 84 600 20 36 12 66.2
500 730 615 4 580 44 513.5 90 660 20 36 12 83.5
600 845 720 5 684 46 616.5 100 770 20 39 12 110.3
700 960 820 5 - 46 - - 875 24 42 12 -
800 1085 930 5 - 50 - - 990 24 48 12 -
900 1185 1030 5 - 54 - - 1090 28 48 12 -
1000 1320 1140 5 - 58 - - 1210 28 56 12 -
1200 1530 1350 5 - - - - 1420 32 56 12 -
1400 1755 1560 5 - - - - 1640 36 62 12 -
1600 1975 1780 5 - - - - 1860 40 62 12 -
1800 2185 1985 5 - - - - 2070 44 70 15 -
2000 2425 2210 5 - - - - 2300 48 70 15 -

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.





Materials of BS4504 Slip On Flanges:

   BS4504 PN 25 Code 112 A105 A182 CS And SS Slip On Flanges SORF Raised Face For Petrochemical Industry 1           BS4504 PN 25 Code 112 A105 A182 CS And SS Slip On Flanges SORF Raised Face For Petrochemical Industry 2

BS4504 slip on flanges are available in various materials to suit different applications and operating conditions. The material selection for BS4504 slip on flanges depends on factors such as temperature, pressure, corrosion resistance, and compatibility with the conveyed fluid or gas.



Grades of Carbon Steel Slip On Flanges:

ASTM A105: This is a common grade of carbon steel used for slip on flanges. It is a forged carbon steel specifically designed for high-temperature service and offers excellent weldability and toughness.

ASTM A350 LF2: LF2 is a low-temperature carbon steel grade commonly used for slip on flanges in applications where low-temperature toughness is required.

ASTM A694 F52/F60/F65/F70: These grades are high-yield carbon steel materials used for slip on flanges in applications requiring high strength and impact resistance.



Grades of Stainless Steel Slip On Flanges:

ASTM A182 F304/F304L: These grades of stainless steel are austenitic and commonly used for slip on flanges. They offer good corrosion resistance, excellent weldability, and are suitable for a wide range of applications.

ASTM A182 F316/F316L: Similar to F304/F304L, these grades are also austenitic stainless steels with improved corrosion resistance, particularly in chloride environments.

ASTM A182 F321: F321 is an austenitic stainless steel grade containing titanium, which provides enhanced resistance to intergranular corrosion. It is often used for slip on flanges in high-temperature applications.

ASTM A182 F347: F347 is a stabilized stainless steel grade with the addition of niobium, which improves its resistance to intergranular corrosion. It is commonly used for weld neck flanges in applications involving elevated temperatures.





When Should BS4504 Slip On Flanges be used:

Slip on flanges are commonly used in various piping systems for specific applications. Here are some situations where slip-on flanges are often preferred:

Low Pressure Systems: Slip on flanges are suitable for low-pressure systems where the pressure requirements are relatively moderate. They are commonly used in applications such as water supply, irrigation, and low-pressure air systems.



Non-Critical Applications: Slip on flanges are often used in non-critical applications where the pipe connections do not require high strength or rigidity. They are commonly employed in industries such as plumbing, HVAC (Heating, Ventilation, and Air Conditioning), and general industrial piping systems.



Easy Installation and Alignment: Slip on flanges are chosen when ease of installation and alignment is a priority. The slip-on design allows the pipe to slide into the flange, simplifying the alignment process. This makes them suitable for applications where quick and straightforward installation is desired.



Cost-Effective Solution: Slip on flanges are generally more cost-effective compared to other flange types, such as weld neck flanges. They require less labor and time for installation, making them a budget-friendly option for certain applications.



Flexibility in Pipe Length Adjustment: Slip on flanges offer flexibility in adjusting the length of the pipe relative to the flange position. Unlike weld neck flanges, they do not have a weld bevel, providing more freedom in pipe length adjustments. This is advantageous when accommodating thermal expansion or contraction of the piping system.



Non-Corrosive Environments: Slip on flanges are often used in non-corrosive environments or applications where corrosion resistance is not a primary concern. In such cases, slip on flanges made from carbon steel or stainless steel can be suitable options.





Applications of BS4504 Carbon Steel and Stainless Steel Slip On Flanges:

Oil and Gas Industry: Carbon steel and stainless steel slip on flanges are commonly used in the oil and gas industry for various applications such as pipelines, refineries, and petrochemical plants. They are suitable for low to moderate pressure and temperature environments.



Power Generation: Carbon steel and stainless steel slip on flanges find application in power generation facilities, including power plants and thermal power stations. They are used for connecting pipes in steam, water, or gas distribution systems.



Water and Wastewater Treatment: Carbon steel and stainless steel slip on flanges are utilized in water treatment plants, wastewater treatment facilities, and desalination plants. They provide secure connections for pipes carrying water, chemicals, or other fluids.



Construction and Infrastructure: Carbon steel and stainless steel slip on flanges are widely used in construction projects such as buildings, bridges, and infrastructure. They are suitable for connecting pipes in HVAC systems, plumbing, and fire protection systems.



Industrial Processes: Carbon steel and stainless stel slip on flanges are employed in various industrial processes, including manufacturing, chemical processing, and mining. They are used to connect pipes in conveying fluids, gases, or abrasive materials.



Food and Beverage Industry: Carbon steel and stainless steel slip on flanges are commonly used in the food and beverage industry due to their hygienic properties and resistance to corrosion. They are suitable for connecting pipes in processing, bottling, and storage systems.



Pharmaceuticals: Carbon Steel and stainless steel slip on flanges are utilized in pharmaceutical manufacturing facilities where cleanliness and hygiene are critical. They are used for connecting pipes in drug production, purification, and distribution systems.



Chemical Processing: Carbon Steel and stainless steel slip on flanges find application in chemical processing plants where resistance to corrosion and chemical compatibility are essential. They are used for connecting pipes carrying corrosive chemicals, acids, or solvents.
