BS4504 PN 10 Code 112 Carbon Steel And Stainless Steel Slip On Flanges SORF For Industrial Purposes

Product Details

Place of Origin: Xi'an, Shaanxi Province, China

Brand Name: PeterTrade(PT)

Payment & Shipping Terms

Minimum Order Quantity: 1-10 Pieces

Price: negotiable

Packaging Details: Wooden Case,plywood Case,pallet Etc.

Delivery Time: about 15-45 days, accordingly

Payment Terms: D/A, T/T, L/C,D/P

Supply Ability: 100-200 Ton/Tons Per Month

Get Best Price
Highlight:

BS4504 Stainless Steel Slip On Flanges

,

BS4504 Code 112 sorf flange

,

PN 10 Code 112 sorf flange

Product Type:
BS4504 Slip On Flanges Raised Face(SORF)
Material:
Carbon Steel Flanges&Stainless Steel Flanges
Pressure:
PN 10
Size:
DN10-3000
Applications:
Chemical, Oil And Gas, Wastewater Treatment And Environmental Protection, Pharmaceutical And Food, Power And Heating Industry
Export Countries::
UK, European Countries And Others In The World
Surface Treatment:
Black Painting / Anti Rust Oil / Hot Dip Galvanized
Manufacturing Methods:
Casting, Forging, Casting And Forging, Medium Plate Cutting, Casting
Product Type:
BS4504 Slip On Flanges Raised Face(SORF)
Material:
Carbon Steel Flanges&Stainless Steel Flanges
Pressure:
PN 10
Size:
DN10-3000
Applications:
Chemical, Oil And Gas, Wastewater Treatment And Environmental Protection, Pharmaceutical And Food, Power And Heating Industry
Export Countries::
UK, European Countries And Others In The World
Surface Treatment:
Black Painting / Anti Rust Oil / Hot Dip Galvanized
Manufacturing Methods:
Casting, Forging, Casting And Forging, Medium Plate Cutting, Casting
BS4504 PN 10 Code 112 Carbon Steel And Stainless Steel Slip On Flanges SORF For Industrial Purposes

BS4504 PN 10 Code 112 Carbon Steel and Stainless Steel Slip On Flanges SORF for Industrial Purposes



Introduction:

With a solid track record spanning over two decades, Shaanxi Peter International Trade Co., Ltd. has built a strong reputation as a leading supplier in the market. Our expertise lies in providing BS4504 Carbon Steel and Stainless Steel Slip On Flanges to meet the diverse needs of our customers.



Recognizing the significance of delivering high-quality products, we go above and beyond to ensure meticulous material selection and strict adherence to quality control processes at every stage of manufacturing and inspection. Our slip on flanges, crafted with precision, fully comply with BS4504 standards, guaranteeing reliability and durability across various industrial applications.



We cater to a wide range of industries, including shipbuilding, power generation, petrochemical plants, oil refineries, wastewater treatment plants, paper mills, pharmaceutical plants, and turnkey projects.





Description of BS4504 Slip On Flanges:

BS4504 slip on flanges are indeed a popular type of pipe flange that offers advantages in certain applications. They are designed to allow the pipe to slide into the bore or center of the flange, enabling welding around the outer diameter (OD) of the pipe and on the interior side of the connection.



One of the key benefits of BS4504 slip on flanges is their flexibility in adjusting the length of the pipe relative to the flange position. Unlike weld neck flanges, BS4504 slip on flanges do not have a weld bevel, providing more freedom in pipe length adjustments. The bore of the BS4504 slip on flange provides sufficient space for the pipe to fit, allowing ample working space for the welder and fabricator during the connection process.



BS4504 slip on flanges are commonly used in lower pressure applications and often feature a hub that resembles the dimensions of a raised face flange. However, they can also be supplied without a hub in cases where space is limited and a "ring style" slip-on is suitable. It's worth noting that slip-ons in higher pressure classes may adopt the height of a lap joint for a stronger connection. In situations where the hub height is not a concern and a lap joint style flange is not readily available, customers may opt for a slip on flange made to a lap joint style with a machined hub.



BS4504 slip on flanges provide a straightforward and practical solution for joining pipes in various applications. Their adaptability, ease of installation, and availability in different configurations make them a popular choice for many piping systems.





BS4504 Code 112 Slip On Flange Dimensions:

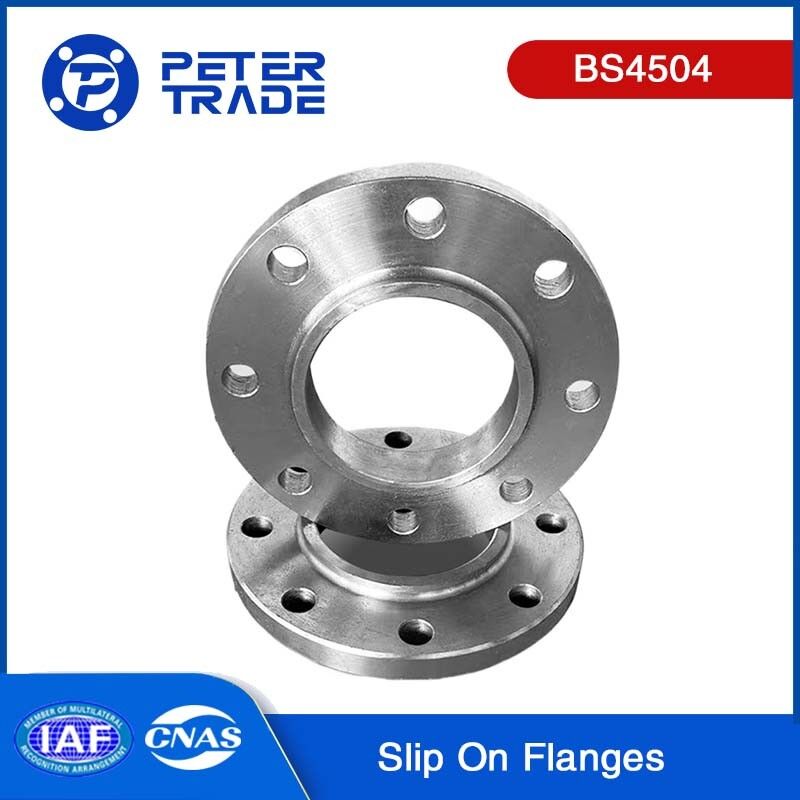

BS4504 PN 10 Code 112 Carbon Steel And Stainless Steel Slip On Flanges SORF For Industrial Purposes 0

BS4504 CODE 112 Slip-On Flanges PN 10 SORF
DN Outside Diameter O.D.of Raised Face



Height of Raised Face

Neck

Diameter

Thickness Dia Counter Bore Length of Flange Bolt circle diameter Number of holes Diameter of Bolt



Radius of Corners





Weight



D G f X t B2 T2 K Numbers L R1 KG
10 90 40 2 30 14 18.0 20 60 4 14 3 0.6
15 95 45 2 35 14 22.0 20 65 4 14 3 0.6
20 105 58 2 45 16 27.5 24 75 4 14 4 0.9
25 115 68 2 52 16 34.5 24 85 4 14 4 1.1
32 140 78 2 60 16 43.5 26 100 4 18 5 1.6
40 150 88 3 70 16 49.5 26 110 4 18 5 1.8
50 165 102 3 84 18 61.5 28 125 4 18 5 2.4
65 185 122 3 104 18 77.5 32 145 4 / 8 18 6 3.1
80 200 138 3 118 20 90.5 34 160 8 18 6 3.8
100 220 162 3 140 20 116.0 40 180 8 18 6 4.4
125 250 188 3 168 22 141.5 44 210 8 18 6 6.1
150 285 212 3 195 22 170.5 44 240 8 22 8 7.2
200 340 268 3 246 24 221.5 44 295 8 22 8 10.0
250 395 320 3 298 26 276.5 46 350 12 22 10 12.5
300 445 370 4 350 26 327.6 46 400 12 22 10 14.2
350 505 430 4 400 26 359.0 53 460 16 22 10 22.5
400 565 482 4 456 26 411.0 57 515 16 26 10 28.0
450 615 532 4 502 28 462.0 63 565 20 26 12 32.4
500 670 585 4 559 28 513.5 67 620 20 26 12 39.1
600 780 685 5 658 28 616.5 75 725 20 30 12 47.9
700 895 800 5 - 30 - - 840 24 30 12 -
800 1015 905 5 - 32 - - 950 24 33 12 -
900 1115 1005 5 - 34 - - 1050 28 33 12
1000 1230 1110 5 - 34 - - 1160 28 36 12 -
1200 1455 1330 5 - 38 - - 1380 32 39 12 -
1400 1675 1535 5 - 42 - - 1590 36 42 12 -
1600 1915 1760 5 - 46 - - 1820 40 48 12 -
1800 2115 1960 5 - 50 - - 2020 44 48 15 -
2000 2325 2170 5 - 54 - - 2230 48 48 15 -
2200 2550 2370 6 - 58 - - 2440 52 56 15 -
2400 2760 2570 6 - 62 - - 2650 56 56 15 -
2600 2960 2780 6 - 65   - 2850 60 56 18 -
2800 3180 3000 6 - 70   - 3070 64 56 18 -
3000 3405 3210 6 - 75   - 3290 68 62 18 -

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.



Materials of BS4504 Slip On Flanges:

   BS4504 PN 10 Code 112 Carbon Steel And Stainless Steel Slip On Flanges SORF For Industrial Purposes 1           BS4504 PN 10 Code 112 Carbon Steel And Stainless Steel Slip On Flanges SORF For Industrial Purposes 2

The Most Common Materials of Carbon Steel Slip On Flanges:

A common and widely used material grade for carbon steel flanges is A105 forged carbon steel. They are designed to withstand temperatures ranging from ambient up to 1,000 degrees Fahrenheit and pressures between 20 to 6,170 psi. Carbon steel flanges are known for their wide temperature and pressure range, which makes them suitable for numerous industrial applications. Additionally, they are often chosen for their cost-effectiveness.



Modern carbon steel typically contains a carbon content of up to 2.1% by weight and is primarily alloyed with iron. The term "carbon steel" is sometimes used to refer to steel that does not have a significant amount of chromium or nickel. The carbon content in A105 flanges can vary, with a maximum allowable carbon composition of 0.35%. Increasing the carbon content in steel leads to increased hardness and strength, achieved through heat treatment processes such as quenching, tempering, and normalizing. However, as carbon steel is treated, it becomes less ductile and more brittle. This can make shaping and welding slightly more challenging. Despite this, the benefits of carbon steel in terms of its wide temperature and pressure range often outweigh the extra effort required for forming weld seals.



In terms of trace elements, A105 carbon steel flanges do not require any specified minimum content of alloy elements like molybdenum, nickel, chromium, titanium, or vanadium.





Advantages of BS4504 Slip On Flanges:

BS4504 slip on flanges are widely used in various applications due to their practicality and adaptability. These flanges offer several advantages:



Easy Installation: BS4504 slip on flanges are designed for easy installation. The pipe can slide into the bore of the flange, allowing for convenient alignment and welding around the outer diameter of the pipe. This simplifies the connection process and saves time during installation.



Flexibility in Pipe Length Adjustment: One of the key benefits of BS4504 slip on flanges is their flexibility in adjusting the length of the pipe relative to the flange position. Unlike weld neck flanges, they do not have a weld bevel, providing more freedom in pipe length adjustments. This flexibility is useful when accommodating thermal expansion or contraction of the piping system.



Versatility: BS4504 slip on flanges are suitable for lower pressure applications. They are available with or without a hub, depending on the specific requirements of the application. The hub design resembles the dimensions of a raised face flange, providing a sealing surface, while slip-on flanges without a hub can be used in situations where space is limited.



Cost-Effective: BS4504 Slip on flanges are generally more cost-effective compared to other types of flanges. They require less material and machining, making them an economical option for various piping systems.



Availability: BS4504 slip on flanges are widely available in the market. They conform to British standards, making them easily accessible for different projects and applications.





Applications of BS4504 Carbon Steel and Stainless Steel Slip On Flanges:

Oil and Gas Industry: Carbon steel and stainless steel slip on flanges are commonly used in the oil and gas industry for various applications such as pipelines, refineries, and petrochemical plants. They are suitable for low to moderate pressure and temperature environments.



Power Generation: Carbon steel and stainless steel slip on flanges find application in power generation facilities, including power plants and thermal power stations. They are used for connecting pipes in steam, water, or gas distribution systems.



Water and Wastewater Treatment: Carbon steel and stainless steel slip on flanges are utilized in water treatment plants, wastewater treatment facilities, and desalination plants. They provide secure connections for pipes carrying water, chemicals, or other fluids.



Construction and Infrastructure: Carbon steel and stainless steel slip on flanges are widely used in construction projects such as buildings, bridges, and infrastructure. They are suitable for connecting pipes in HVAC systems, plumbing, and fire protection systems.



Industrial Processes: Carbon steel and stainless stel slip on flanges are employed in various industrial processes, including manufacturing, chemical processing, and mining. They are used to connect pipes in conveying fluids, gases, or abrasive materials.



Food and Beverage Industry: Carbon steel and stainless steel slip on flanges are commonly used in the food and beverage industry due to their hygienic properties and resistance to corrosion. They are suitable for connecting pipes in processing, bottling, and storage systems.



Pharmaceuticals: Carbon Steel and stainless steel slip on flanges are utilized in pharmaceutical manufacturing facilities where cleanliness and hygiene are critical. They are used for connecting pipes in drug production, purification, and distribution systems.



Chemical Processing: Carbon Steel and stainless steel slip on flanges find application in chemical processing plants where resistance to corrosion and chemical compatibility are essential. They are used for connecting pipes carrying corrosive chemicals, acids, or solvents.
