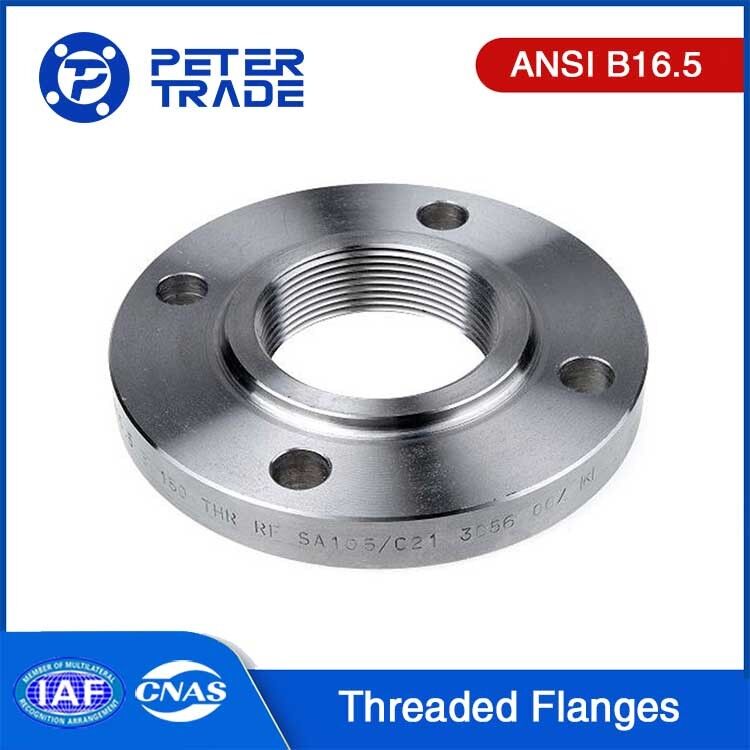

ASME B16.5 Flat Face/Raised Face Stainless Steel Threaded Flange NPS 1/2 To NPS 24 Class 150 for Chemical Industry

Product Details

Place of Origin: Xi'an, Shaanxi Province, China

Brand Name: PeterTrade(PT)

Payment & Shipping Terms

Minimum Order Quantity: 1-10 Pieces

Price: negotiable

Packaging Details: Wooden Case,plywood Case,pallet Etc.

Delivery Time: about 15-45 days, accordingly

Payment Terms: D/A, T/T, L/C,D/P

Supply Ability: 100-200 Ton/Tons Per Month

Get Best Price
Highlight:

flat face threaded flange Class 150

,

flat face threaded flange NPS 1/2

,

2 inch threaded flange NPS 24

Product Standard:
ANSI B16.5/ASME B16.5
Product Name:
Threaded Flanges
Material 1:
Stainless Steel Flanges: ASTM A182 F304, 304L, 316, 316L, 321, 1Cr18Ni9Ti, 00Cr19Ni10, A182 F51, F53, F55 Etc.
Material 2:
Carbon Steel Flanges: A105 A350LF2, A694 F60,A694 F52,A694 F65 Etc.
Size:
NPS 1/2 To NPS 24
Pressure:
Class 150
Application:
Oil And Gas Pipelines, Chemical Plants, Power Generation Facilities, And Refineries
Export Countries:
North America And Other Countries In The World
Product Standard:
ANSI B16.5/ASME B16.5
Product Name:
Threaded Flanges
Material 1:
Stainless Steel Flanges: ASTM A182 F304, 304L, 316, 316L, 321, 1Cr18Ni9Ti, 00Cr19Ni10, A182 F51, F53, F55 Etc.
Material 2:
Carbon Steel Flanges: A105 A350LF2, A694 F60,A694 F52,A694 F65 Etc.
Size:
NPS 1/2 To NPS 24
Pressure:
Class 150
Application:
Oil And Gas Pipelines, Chemical Plants, Power Generation Facilities, And Refineries
Export Countries:
North America And Other Countries In The World
ASME B16.5 Flat Face/Raised Face Stainless Steel Threaded Flange NPS 1/2 To NPS 24 Class 150 for Chemical Industry

ASME B16.5 Stainless Steel Threaded Flanges Raised Face Class 150 for Industrial Applications



Introduction:

Our company, Shaanxi Peter International Trade Co., Ltd. is a highly reputable and well-established supplier in the market, boasting an impressive track record of over two decades. With our extensive experience and expertise, we have garnered a strong reputation as a trusted and reliable source for ASME B16.5 Stainless Steel Threaded Flanges. Our commitment to quality and customer satisfaction has made us a preferred choice for customers seeking top-notch threaded flange solutions.



Over the years, we have built solid relationships with renowned manufacturers and have access to a comprehensive range of ASME B16.5 Stainless Steel Threaded Flanges. Our inventory comprises flanges crafted from high-quality stainless steel, ensuring exceptional durability, corrosion resistance, and longevity. We understand the criticality of precision and adherence to industry standards, which is why we source flanges that conform to the stringent specifications of the ASME B16.5 standard.





Description of ASME B16.5 Threaded Flanges:

ASME B16.5 is a standard created by the American Society of Mechanical Engineers (ASME) that specifies the dimensions, materials, and performance requirements for threaded flanges. Threaded flanges are a type of flange used to join pipes or fittings with external threads.



Here is a description of ASME B16.5 threaded flanges:



Design and Dimensions: ASME B16.5 threaded flanges are designed to have a standard pipe thread (NPT) conforming to ANSI/ASME B1.20.1. The flanges have a cylindrical shape with a raised face or a ring-type joint face. The standard covers flanges ranging from 1/2 inch to 24 inches in size.



Pressure Ratings: The ASME B16.5 standard provides pressure-temperature ratings for threaded flanges. These ratings indicate the maximum allowable pressure at a given temperature. The pressure ratings range from 150 pounds per square inch (psi) to 2500 psi.



Materials: The standard specifies the materials for threaded flanges based on their application and compatibility with the fluid being conveyed. Common materials used for ASME B16.5 threaded flanges include carbon steel, stainless steel, alloy steel, and non-ferrous metals such as bronze or brass.



Face Types: ASME B16.5 threaded flanges come with two face types: raised face (RF) and ring-type joint (RTJ). The raised face flange has a flat gasket sealing surface and is suitable for most general-purpose applications. The ring-type joint face flange features a groove machined into its face and uses a metal ring gasket for sealing. RTJ flanges are commonly used in high-pressure and high-temperature applications.



Marking and Identification: ASME B16.5 threaded flanges are marked with relevant information such as flange size, pressure rating, material specification, and manufacturer's identification. This marking helps in proper identification and ensures that the flanges meet the required standards.



Installation and Assembly: Threaded flanges are assembled by screwing the male thread of the flange into the female thread of the connecting pipe or fitting. Proper tightening techniques and the use of suitable thread sealants or tape are essential to ensure a leak-free joint.



ASME B16.5 threaded flanges are widely used in various industries, including oil and gas, petrochemical, chemical, power generation, and water treatment. They provide a reliable and convenient method for joining pipes and fittings with threaded connections, allowing for easy installation, maintenance, and disassembly.





ASME B16.5 Stainless Steel Threaded Flange Dimensions:

ASME B16.5 Flat Face/Raised Face Stainless Steel Threaded Flange NPS 1/2 To NPS 24 Class 150 for Chemical Industry 0

ANSI/ASME B16.5 Class 150 THREADED FLANGES THRF

Nominal Pipe size

(inch)

Outside Diameter O.D.of Raised Face Diameter at Base of Hub Thickness Length through hub Drilling

Approximate

Weight(lb)


D G X t T2 Bolt circle diameter Number of holes Diameter of Bolt
1/2'' 89 35.1 30.2 11.2 15.7 60.5 4 15.7 1
3/4'' 99 42.9 38.1 12.7 15.7 69.9 4 15.7 2
1'' 108 50.8 49.3 14.2 17.5 79.2 4 15.7 2
1.1/4'' 117 63.5 58.7 15.7 20.6 88.9 4 15.7 3
1.1/2'' 127 73.2 65 17.5 22.4 98.6 4 15.7 3
2'' 152 91.9 77.7 19.1 25.4 120.7 4 19.1 5
2.1/2'' 178 104.6 90.4 22.4 28.4 139.7 4 19.1 8
3'' 191 127 108 23.9 30.2 152.4 4 19.1 9
3.1/2'' 216 139.7 122.2 23.9 31.8 177.8 8 19.1 12
4'' 229 157.2 134.9 23.9 33.3 190.5 8 19.1 13
5'' 254 185.7 163.6 23.9 36.6 215.9 8 22.4 15
6'' 279 215.9 192 25.4 39.6 241.3 8 22.4 19
8'' 343 269.7 246.1 28.4 44.5 298.5 8 22.4 30
10'' 406 323.9 304.8 30.2 49.3 362 12 25.4 43
12'' 483 381 365.3 31.8 55.6 431.8 12 25.4 64
14'' 533 412.8 400.1 35.1 57.2 476.3 12 28.4 90
16'' 597 469.9 457.2 36.6 63.5 539.8 16 28.4 98
18'' 635 533.4 505 39.6 68.3 577.9 16 31.8 130
20'' 699 584.2 558.8 42.9 73.2 635 20 31.8 165
22’’ 749 641.3 616 44.5 78.0 692.2 20 35.1 185
24'' 813 692.2 663.4 47.8 82.6 749.3 20 35.1 220

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.





The Pressure-temperature Rating of ASME B16.5 Threaded Flanges:

The pressure-temperature ratings specified in ASME B16.5 for threaded flanges provide guidance on the maximum allowable pressure at various temperatures. These ratings are crucial for ensuring the safe and reliable operation of threaded flange connections. Here are some key points regarding pressure-temperature ratings:



Pressure Classes: ASME B16.5 threaded flanges are assigned pressure classes ranging from 150 to 2500. Each pressure class corresponds to a specific maximum pressure at a given temperature. The pressure classes are designated as Class 150, 300, 400, 600, 900, 1500, and 2500.



Maximum Pressure: The maximum allowable pressure for threaded flanges varies depending on the flange size, pressure class, and temperature. The higher the pressure class, the higher the maximum pressure the flange can withstand. For example, a Class 150 threaded flange has a lower maximum pressure compared to a Class 300 flange.



Temperature Range: ASME B16.5 provides temperature limitations for threaded flanges based on the material used. These limitations help prevent thermal stress or material failure. The temperature range typically spans from -20°F (-29°C) to 1000°F (538°C) for standard carbon and low-alloy steel flanges. Higher temperature ranges are available for specific materials like stainless steel or alloy steel.



Derating Factors: At elevated temperatures, the maximum allowable pressure for threaded flanges may need to be reduced due to the decrease in material strength and the potential for thermal expansion. ASME B16.5 provides derating factors that should be applied to the pressure ratings to account for these effects. The derating factors are specified based on the temperature range and the material of the flange.



Flange Material Selection: The pressure-temperature ratings also depend on the material of the threaded flange. Different materials have different mechanical properties and temperature limits. It is essential to select a flange material that is compatible with the system's fluid, pressure, and temperature requirements.





Applications of ASME B16.5 Stainless Steel Threaded Flanges:

ASME B16.5 Stainless Steel Threaded Flanges find applications in various industries where threaded connections are required. Some common applications include:



Oil and Gas Industry: Stainless Steel Threaded flanges are used in oil and gas pipelines for joining sections of pipe or equipment with threaded connections. They provide a secure and reliable connection, especially in low-pressure and non-critical applications.



Petrochemical Industry: In petrochemical plants, stainless steel threaded flanges are utilized for connecting pipes, valves, and equipment. They are suitable for low-pressure systems handling fluids such as water, chemicals, and gases.



Chemical Industry: Stainless Steel Threaded flanges are employed in chemical processing plants for connecting pipelines and equipment. They are commonly used in applications involving corrosive chemicals and fluids.



Water Treatment: Stainless Steel Threaded flanges are utilized in water treatment facilities for connecting pipes, valves, and pumps. They are commonly employed in non-critical water distribution systems.



Food and Beverage Industry: Stainless Steel Threaded flanges can be found in food processing plants and beverage production facilities. They are used for connecting pipes and equipment in non-sanitary applications.



Power Generation: Stainless Steel Threaded flanges are used in power plants for various applications such as steam systems, water circulation, and fuel lines. They are suitable for low-pressure and moderate-temperature environments.



Stainless Steel threaded flanges are generally used in low-pressure applications compared to welded flanges. They are suitable for systems operating at lower temperatures and pressures where a reliable and easily removable connection is required. When selecting ASME B16.5 Stainless Steel Threaded Flanges for a specific application, it is crucial to consider factors such as operating conditions, fluid compatibility, and system requirements.
