Product Name: |
Flat Face Plate Flanges |
Product Standard: |
EN1092-01 Type 01 |
Material 1: |
Stainless Steel Flanges: ASTM A182 F304, 304L, 316, 316L, 321, 1Cr18Ni9Ti, 00Cr19Ni10, A182 F51, F53, F55 Etc. |
Material 2: |
Carbon Steel Flanges: A105 A350LF2, A694 F60,A694 F52,A694 F65 Etc. |
Pressure: |
PN 25 |
Size: |
DN10-DN800 |
Applications: |
Chemical, Oil And Gas, Wastewater Treatment And Environmental Protection, Pharmaceutical And Food, Power And Heating Industry |
Export Countries: |
European Countries And Other Countries Around The World |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Product Name: |
Flat Face Plate Flanges |
Product Standard: |
EN1092-01 Type 01 |
Material 1: |
Stainless Steel Flanges: ASTM A182 F304, 304L, 316, 316L, 321, 1Cr18Ni9Ti, 00Cr19Ni10, A182 F51, F53, F55 Etc. |
Material 2: |
Carbon Steel Flanges: A105 A350LF2, A694 F60,A694 F52,A694 F65 Etc. |
Pressure: |
PN 25 |
Size: |
DN10-DN800 |
Applications: |
Chemical, Oil And Gas, Wastewater Treatment And Environmental Protection, Pharmaceutical And Food, Power And Heating Industry |
Export Countries: |
European Countries And Other Countries Around The World |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |

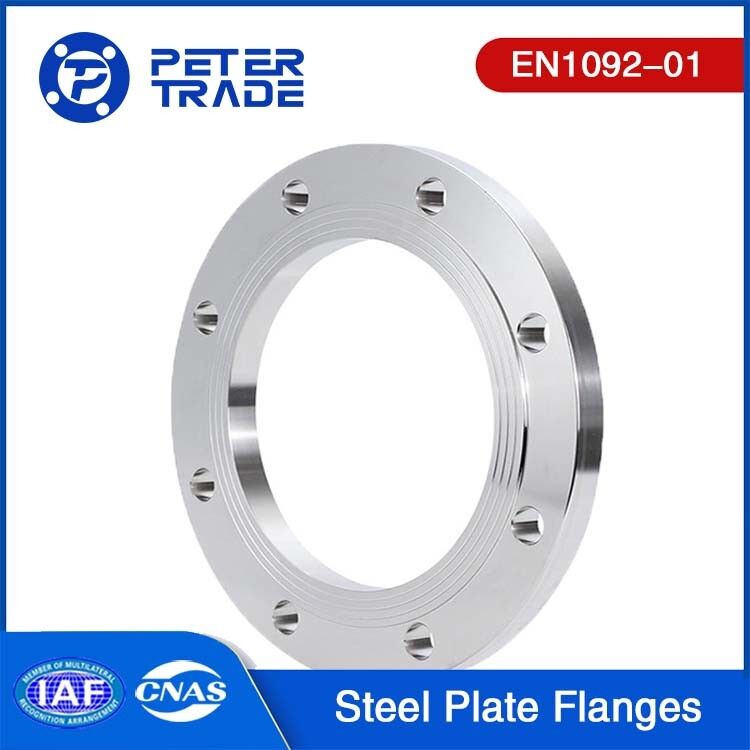

EN1092-01 TYPE 01 Stainless Steel Plate Flanges PN 25 PLFF for Industrial Applications
Introduction:
Our company, Shaanxi Peter International Trade Co., Ltd. is a well-known and respected supplier in the market, with a strong track record spanning over 20 years. Our extensive experience has allowed us to establish ourselves as a trusted and reliable source for EN1092-01 Stainless Steel Plate Flanges.
We understand the importance of providing excellent service to our customers. We have built long-lasting relationships with clients by offering competitive pricing, prompt delivery, and personalized support. Our team of experts is dedicated to assisting customers throughout the entire procurement process, from product selection to after-sales service.
As a reputable supplier, we prioritize quality control and assurance. Our EN1092-01 Stainless Steel Plate Flanges undergo rigorous testing and inspection to ensure durability, precision, and compliance with relevant standards. We work closely with trusted manufacturers who share our commitment to delivering reliable and superior products.
Description of EN1092-01 Stainless Steel Plate Flanges:
EN1092-01 Stainless Steel Plate Flanges are versatile and can be used in various industries and applications where their properties are required. It is crucial to select the appropriate type of EN1092-01 Stainless Steel Plate Flange based on specific application requirements, such as material compatibility, pressure ratings, and environmental conditions.
EN1092-01 Stainless Steel Plate Flanges are a type of flange used to connect pipes, valves, and other equipment in various industries. These flanges are designed according to the European standard EN1092-01 and are made from stainless steel, which offers excellent corrosion resistance, durability, and strength.
EN1092-01 Stainless Steel Plate Flanges consist of a flat circular plate with bolt holes around the perimeter and a raised face that provides a sealing surface. The flange is bolted to a matching flange on the adjoining equipment or pipe. The number of bolt holes and their diameter depends on the size and pressure rating of the flange.
EN1092-01 Stainless Steel Plate Flanges come in various sizes, ranging from DN10 to DN4000, and pressure ratings from PN2.5 to PN100. They can be manufactured in different grades of stainless steel, such as 304, 316, 321, and 347, to meet specific application requirements.
EN1092-01 Stainless Steel Plate Flanges are widely used in industries like oil and gas, chemical processing, power generation, marine, and food and beverage due to their high corrosion resistance, temperature tolerance, and hygienic properties. They are also easy to install and maintain, making them a popular choice for connecting equipment in pipelines and other systems.
EN1092-01 Stainless Steel Plate Flange Dimensions:
EN1092-01 Type 01 Plate Flange PN 25 FF | ||||||||
DN | Outside diameter | Diameter of bolt circle | Diameter of bolt hole | Bolting | Bore diameter | Flange thickness | Approx weight | |
D | K | L | Number | Size | B1 | C1 | (Kg) | |
10 | 90 | 60 | 14 | 4 | M12 | 18 | 14 | 0.6 |
15 | 95 | 65 | 14 | 4 | M12 | 22 | 14 | 0.7 |
20 | 105 | 75 | 14 | 4 | M12 | 27.5 | 16 | 0.9 |
25 | 115 | 85 | 14 | 4 | M12 | 34.5 | 16 | 1.1 |
32 | 140 | 100 | 18 | 4 | M16 | 43.5 | 18 | 1.8 |
40 | 150 | 110 | 18 | 4 | M16 | 49.5 | 18 | 2.1 |
50 | 165 | 125 | 18 | 4 | M16 | 61.5 | 20 | 2.7 |
65 | 185 | 145 | 18 | 8 | M16 | 77.5 | 22 | 3.5 |
80 | 200 | 160 | 18 | 8 | M16 | 90.5 | 24 | 4.3 |
100 | 235 | 190 | 22 | 8 | M20 | 116 | 26 | 6.1 |
125 | 270 | 220 | 26 | 8 | M24 | 141.5 | 28 | 8.2 |
150 | 300 | 250 | 26 | 8 | M24 | 170.5 | 30 | 10.3 |
200 | 360 | 310 | 26 | 12 | M24 | 221.5 | 32 | 17.9 |
250 | 435 | 370 | 30 | 12 | M27 | 276.5 | 35 | 29.3 |
300 | 485 | 430 | 30 | 16 | M27 | 327.5 | 38 | 45.1 |
350 | 555 | 490 | 33 | 16 | M30 | 359.5 | 42 | 66.7 |
400 | 620 | 550 | 36 | 16 | M33 | 411 | 48 | 97.1 |
450 | 670 | 600 | 36 | 20 | M33 | 462 | 54 | - |
500 | 730 | 660 | 36 | 20 | M33 | 513.5 | 58 | - |
600 | 845 | 770 | 39 | 20 | M36 | 616.5 | 68 | - |
700 | 960 | 875 | 42 | 24 | M39 | 715 | 85 | - |
800 | 1085 | 990 | 48 | 24 | M45 | 817 | 95 | - |
1.Dimensions are in millimeters(mm).
2.Dimensions can be specified by different purchasers.
Grades of Stainless Steel Flanges:
The material grade of stainless steel flanges is classified and specified based on the chemical composition, mechanical properties, and corrosion resistance of stainless steel materials. Here is an introduction to common material grades of stainless steel flanges:
1.ASTM A182 F304/304L: This is a common material grade for stainless steel flanges, suitable for general industrial applications. It primarily consists of 18% chromium and 8% nickel, providing good corrosion resistance and oxidation resistance. F304L is the low carbon version, suitable for use in welding conditions.
2.ASTM A182 F316/316L: This is a material grade with better corrosion resistance, commonly used in corrosive environments such as chemical, petroleum, and marine industries. It contains 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, which enables resistance against strong corrosive media like sulfuric acid and hydrochloric acid. F316L is the low carbon version, helping to reduce intergranular corrosion during welding.
3.ASTM A182 F321: This is a titanium-stabilized material grade for stainless steel flanges, suitable for high-temperature environments. It contains 18-20% chromium, 9-12% nickel, and also includes 0.15-0.30% titanium, enhancing corrosion resistance and high-temperature performance.
In addition to the above-mentioned common material grades of stainless steel flanges, there are other material grades such as ASTM A182 F347, ASTM A182 F904L, etc., which have different chemical compositions and characteristics, suitable for different working conditions and media.
When selecting the material grade of stainless steel flanges, it is necessary to evaluate specific factors such as the working environment, corrosive nature of the media, temperature, and pressure requirements to ensure the appropriate material grade is chosen to meet the engineering needs.
The Importance of EN1092-01 Stainless Steel Plate:
EN1092-01 Stainless Steel Plate Flanges play a crucial role in various industrial applications. Here are some key reasons why they are important:
Connection and Integration: EN1092-01 Stainless Steel Plate Flanges provide a reliable and secure connection between pipes, valves, and other equipment. They allow for easy integration of different components, facilitating the efficient operation of industrial systems.
Leak Prevention: The raised face of EN1092-01 Stainless Steel Plate Flanges creates a sealing surface when compressed against a matching flange. This helps prevent leaks and ensures the integrity of fluid or gas flow within the system. Proper installation and maintenance of flanges are essential to maintain a leak-free operation.
Corrosion Resistance: Stainless steel is highly resistant to corrosion, making EN1092-01 Stainless Steel Plate Flanges suitable for use in corrosive environments. They can withstand exposure to chemicals, saltwater, and other harsh substances, ensuring long-term durability and minimizing maintenance costs.
Temperature and Pressure Tolerance: EN1092-01 Stainless Steel Plate Flanges are designed to withstand high temperatures and pressures commonly found in industrial processes. Their strength and stability enable them to handle demanding operating conditions without compromising performance.
Versatility: EN1092-01 Stainless Steel Plate Flanges are available in a wide range of sizes, pressure ratings, and material grades. This versatility allows them to be used in diverse industries and applications, accommodating specific requirements and standards.
Hygienic Properties: In industries such as food and beverage or pharmaceuticals, maintaining cleanliness and hygiene is crucial. EN1092-01 Stainless Steel Plate Flanges, being made of stainless steel, possess excellent hygienic properties. They are easy to clean, resist bacterial growth, and comply with stringent sanitary standards.
Longevity and Cost-effectiveness: Due to their robust construction and corrosion resistance, EN1092-01 Stainless Steel Plate Flanges have a long service life. Choosing high-quality flanges reduces the need for frequent replacements, minimizing downtime and overall costs.
It is important to select the appropriate EN1092-01 Stainless Steel Plate Flanges based on the specific requirements of the application, including size, pressure rating, material grade, and compatibility with the media being conveyed. Proper installation, regular maintenance, and adherence to industry standards are essential to ensure optimal performance and safety.
Applications of EN1092-01 Stainless Steel Plate Flanges:
En1092-01 Stainless Steel Plate flanges serve a variety of purposes in connecting and sealing off different parts of a system. They are commonly used to join pipes together, but can also be employed in other applications, such as connecting various components of a system or sealing off specific sections when required. For instance, plate flanges may be utilized for joining metal pipes or connecting two sections of a pipe. Additionally, they can be deployed for creating a barrier between two pieces of metal that need to remain separated. Moreover, they can be utilized for joining plastic pipes or even for connecting different parts of an air conditioning or heating unit.
Oil and gas industry: Plate flanges are commonly used in oil and gas pipeline systems, including transportation, processing, and storage equipment. They can withstand the working requirements of high pressure and high temperature, while providing reliable sealing performance.
Chemical industry: In chemical plants and chemical processing industries, plate flanges are widely used in various fluid handling equipment, such as reactors, distillation towers, heat exchangers, etc. They have corrosion resistance and are suitable for handling various corrosive media.
Power industry: In power plants and power transmission and distribution systems, plate flanges are usually used to connect pipelines, valves, and equipment. They can withstand the requirements of high pressure, high temperature, and high flow rate, ensuring the safety and reliable operation of the power system.
Wastewater treatment and environmental protection industry: In wastewater treatment facilities and environmental engineering, plate flanges are used to connect sewage pipelines, exhaust systems, and treatment equipment. They have good sealing performance and corrosion resistance, suitable for handling wastewater and pollutants.
Pharmaceutical and food industry: In the pharmaceutical and food processing fields, plate flanges are widely used in various production equipment and pipeline systems. They meet hygiene standards and can meet the special requirements for product purity and hygiene.
It is necessary to select the appropriate European standard flanges based on specific projects and requirements, ensuring compliance with relevant standards and specifications, and meeting the requirements of specific industries.
