Home > products > Pipe Fitting Flanges > EN1092-01 Standard TYPE 01 Stainless Steel Plate Flange SS304 SS316L PN 2.5 PLFF Flat Face

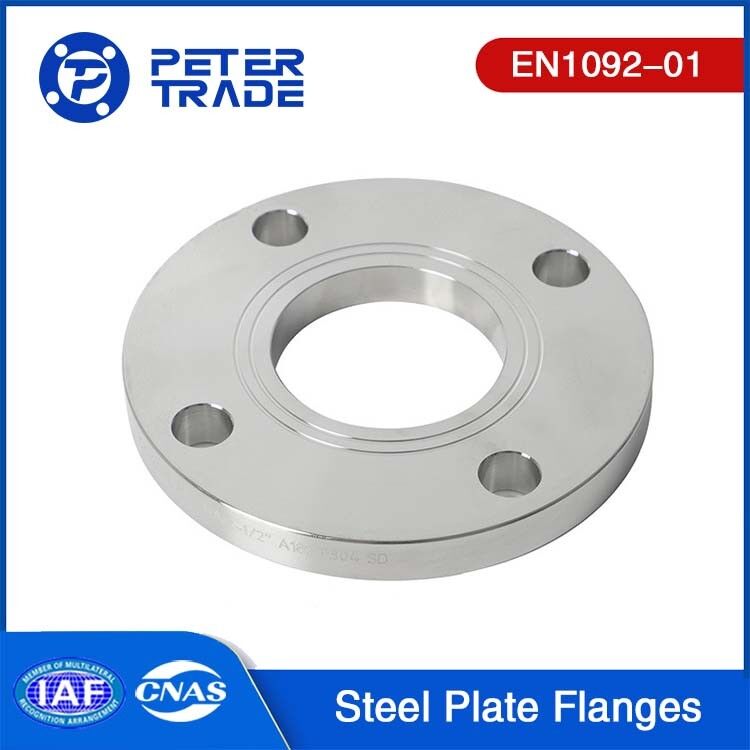

EN1092-01 Standard TYPE 01 Stainless Steel Plate Flange SS304 SS316L PN 2.5 PLFF Flat Face

Product Details

Place of Origin: Xi'an, Shaanxi Province, China

Brand Name: PeterTrade(PT)

Payment & Shipping Terms

Minimum Order Quantity: 1-10 Pieces

Price: negotiable

Packaging Details: Wooden Case,plywood Case,pallet Etc.

Delivery Time: about 15-45 days, accordingly

Payment Terms: D/A, T/T, L/C,D/P

Supply Ability: 100-200 Ton/Tons Per Month

Get Best Price
Highlight:

Stainless Steel pipe plate flange

,

PN 2.5 pipe plate flange

,

EN1092-01 TYPE 01 PN 2.5 PLFF

Product Standard:
EN1092-01 Standard
Product Name:
Plate Flange Flat Face
Product Face Type:
Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF)
Materials:
Stainless Steel Flanges: ASTM A182 F304, 304L, 316, 316L, 321, 1Cr18Ni9Ti, 00Cr19Ni10, A182 F51, F53, F55 Etc.
Pressure:
PN 2.5
Size:
DN10-DN1200
Applications:
Chemical Industry, Oil And Gas Industry, Wastewater Treatment And Environmental Protection Industry, Pharmaceutical And Food Industry, Power And Heating Industry
Export Countries::
USA, Canada, UK, Germany, Netherland, Brazil, Korea, Japan, India, Egypt, Dubai, Qatar, Saudi Arabia, Indonesia, Singapore And Etc.
Surface Treatment:
Black Painting / Anti Rust Oil / Hot Dip Galvanized
Product Standard:
EN1092-01 Standard
Product Name:
Plate Flange Flat Face
Product Face Type:
Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF)
Materials:
Stainless Steel Flanges: ASTM A182 F304, 304L, 316, 316L, 321, 1Cr18Ni9Ti, 00Cr19Ni10, A182 F51, F53, F55 Etc.
Pressure:
PN 2.5
Size:
DN10-DN1200
Applications:
Chemical Industry, Oil And Gas Industry, Wastewater Treatment And Environmental Protection Industry, Pharmaceutical And Food Industry, Power And Heating Industry
Export Countries::
USA, Canada, UK, Germany, Netherland, Brazil, Korea, Japan, India, Egypt, Dubai, Qatar, Saudi Arabia, Indonesia, Singapore And Etc.
Surface Treatment:
Black Painting / Anti Rust Oil / Hot Dip Galvanized
EN1092-01 Standard TYPE 01 Stainless Steel Plate Flange SS304 SS316L PN 2.5 PLFF Flat Face

EN1092-01 TYPE 01 Stainless Steel Plate Flanges PN 2.5 PLFF for Industrial Applications



Introduction:

Our company, Shaanxi Peter International Trade Co., Ltd. is a well-known and respected supplier in the market, with a strong track record spanning over 20 years. Our extensive experience has allowed us to establish ourselves as a trusted and reliable source for EN1092-01 Stainless Steel Plate Flanges.



We understand the importance of providing excellent service to our customers. We have built long-lasting relationships with clients by offering competitive pricing, prompt delivery, and personalized support. Our team of experts is dedicated to assisting customers throughout the entire procurement process, from product selection to after-sales service.



As a reputable supplier, we prioritize quality control and assurance. Our EN1092-01 Stainless Steel Plate Flanges undergo rigorous testing and inspection to ensure durability, precision, and compliance with relevant standards. We work closely with trusted manufacturers who share our commitment to delivering reliable and superior products.





EN1092-01 Stainless Steel Plate Flanges:

EN1092-01 Standard TYPE 01 Stainless Steel Plate Flange SS304 SS316L PN 2.5 PLFF Flat Face 0

EN1092-01 Stainless Steel Plate Flanges are a type of flange that conforms to the European standard EN1092-01. These flanges are specifically designed for use with stainless steel pipes and fittings. They provide a secure and leak-proof connection between pipes or valves in various industrial applications.



Stainless steel plate flange is a type of connector that looks like a flat circular disk with an inner bore and bolt holes, belonging to the slip-on flange category.



Stainless steel plate flanges are primarily used for connecting and securing pipes, valves, pumps, and other equipment in pipeline systems. As an external or internal ridge or rim, flanges are usually designed to connect different sections of pipes and allow for convenient assembly and disassembly.



The sealing surface of the plate flange is in the same plane as the bolt circle face. It is commonly used together with flanges or flanged fittings made from castings.



The plate surface enables full contact between the two flanges. Full-face gaskets should be used on flat flanges to ensure complete and even contact between the mating flanges.





EN1092-01 Stainless Steel Plate Flange Dimensions:

EN1092-01 Standard TYPE 01 Stainless Steel Plate Flange SS304 SS316L PN 2.5 PLFF Flat Face 1

EN1092-01 Type 01 Plate Flange PN 2.5 FF
DN Outside diameter Diameter of bolt circle Diameter of bolt hole Bolting Bore diameter Flange thickness Approx weight
D K L Number Size B1 C1 (Kg)
10 75 50 11 4 M10 18 12 0.4
15 80 55 11 4 M10 22 12 0.4
20 90 65 11 4 M10 27.5 14 0.6
25 100 75 11 4 M10 34.5 14 0.7
32 120 90 14 4 M12 43.5 16 1.2
40 130 100 14 4 M12 49.5 16 1.4
50 140 110 14 4 M12 61.5 16 1.5
65 160 130 14 4 M12 77.5 16 1.9
80 190 150 18 4 M16 90.5 18 3.0
100 210 170 18 4 M16 116 18 3.3
125 240 200 18 8 M16 141.5 20 4.3
150 265 225 18 8 M16 170.5 20 4.8
200 320 280 18 8 M16 221.5 22 6.9
250 375 335 18 12 M16 276.5 24 8.9
300 440 395 22 12 M20 327.5 24 11.9
350 490 445 22 12 M20 359.5 26 16.8
400 540 495 22 16 M20 411.0 28 19.8
450 595 550 22 16 M20 462.0 30 24.6
500 645 600 22 20 M20 513.5 30 26.4
600 755 705 26 20 M24 616.5 32 34.8
700 860 810 26 24 M24 715 40 -
800 975 920 30 24 M27 817 44 -
900 1075 1020 30 24 M27 918 48 -
1000 1175 1120 30 28 M27 1020 52    -
1200 1375 1320 30 32 M27 1223 60 -

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.





Grades of Stainless Steel Flanges:



   EN1092-01 Standard TYPE 01 Stainless Steel Plate Flange SS304 SS316L PN 2.5 PLFF Flat Face 2           EN1092-01 Standard TYPE 01 Stainless Steel Plate Flange SS304 SS316L PN 2.5 PLFF Flat Face 3

The material grade of stainless steel flanges is classified and specified based on the chemical composition, mechanical properties, and corrosion resistance of stainless steel materials. Here is an introduction to common material grades of stainless steel flanges:



1.ASTM A182 F304/304L: This is a common material grade for stainless steel flanges, suitable for general industrial applications. It primarily consists of 18% chromium and 8% nickel, providing good corrosion resistance and oxidation resistance. F304L is the low carbon version, suitable for use in welding conditions.



2.ASTM A182 F316/316L: This is a material grade with better corrosion resistance, commonly used in corrosive environments such as chemical, petroleum, and marine industries. It contains 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, which enables resistance against strong corrosive media like sulfuric acid and hydrochloric acid. F316L is the low carbon version, helping to reduce intergranular corrosion during welding.



3.ASTM A182 F321: This is a titanium-stabilized material grade for stainless steel flanges, suitable for high-temperature environments. It contains 18-20% chromium, 9-12% nickel, and also includes 0.15-0.30% titanium, enhancing corrosion resistance and high-temperature performance.



In addition to the above-mentioned common material grades of stainless steel flanges, there are other material grades such as ASTM A182 F347, ASTM A182 F904L, etc., which have different chemical compositions and characteristics, suitable for different working conditions and media.



When selecting the material grade of stainless steel flanges, it is necessary to evaluate specific factors such as the working environment, corrosive nature of the media, temperature, and pressure requirements to ensure the appropriate material grade is chosen to meet the engineering needs.





Advantages of Stainless Steel Plate Flanges:

Stainless steel plate flanges offer several advantages compared to flanges made from other materials. Here are some key advantages of stainless steel plate flanges:



Corrosion Resistance: Stainless steel is highly resistant to corrosion due to its chromium content. This makes stainless steel plate flanges ideal for applications where the flange will come into contact with corrosive substances or environments, such as water, chemicals, and acids. They have excellent resistance to rust and degradation, ensuring long-term performance.



Strength and Durability: Stainless steel plate flanges are known for their strength and durability. They can withstand high pressure and temperature conditions without deforming or breaking. This makes them reliable and suitable for demanding industrial applications.



Hygiene and Cleanliness: Stainless steel is non-porous and easy to clean, making stainless steel plate flanges suitable for applications where hygiene and cleanliness are crucial. They are commonly used in industries like food processing, pharmaceuticals, and healthcare where sanitation is essential.



Aesthetic Appeal: Stainless steel has an attractive appearance and a smooth surface finish. This makes stainless steel plate flanges visually appealing and suitable for applications where aesthetics are important, such as architectural and decorative purposes.



High Temperature Resistance: Stainless steel plate flanges can withstand high temperatures without losing their strength or integrity. They remain stable and maintain their performance even under extreme heat conditions, making them suitable for applications involving hot liquids or gases.



Longevity: Stainless steel plate flanges have a long service life due to their excellent resistance to wear, rust, and degradation. They require minimal maintenance, reducing downtime and overall costs.



Compatibility: Stainless steel plate flanges are compatible with a wide range of piping systems, allowing for easy integration and connection. They can be matched with various pipe sizes and types, providing flexibility in design and installation.



Wide Range of Options: Stainless steel plate flanges are available in various sizes, dimensions, and pressure ratings, providing options to meet specific project requirements. They can be customized with special dimensions or drilling patterns as needed.





Applications of EN1092-01 Stainless Steel Plate Flanges:

EN1092-01 Stainless Steel Plate Flanges are widely used in various industries and fields. Here are some common application areas:



Oil and gas industry: Plate flanges are commonly used in oil and gas pipeline systems, including transportation, processing, and storage equipment. They can withstand the working requirements of high pressure and high temperature, while providing reliable sealing performance.



Chemical industry: In chemical plants and chemical processing industries, plate flanges are widely used in various fluid handling equipment, such as reactors, distillation towers, heat exchangers, etc. They have corrosion resistance and are suitable for handling various corrosive media.



Power industry: In power plants and power transmission and distribution systems, plate flanges are usually used to connect pipelines, valves, and equipment. They can withstand the requirements of high pressure, high temperature, and high flow rate, ensuring the safety and reliable operation of the power system.



Wastewater treatment and environmental protection industry: In wastewater treatment facilities and environmental engineering, plate flanges are used to connect sewage pipelines, exhaust systems, and treatment equipment. They have good sealing performance and corrosion resistance, suitable for handling wastewater and pollutants.



Pharmaceutical and food industry: In the pharmaceutical and food processing fields, plate flanges are widely used in various production equipment and pipeline systems. They meet hygiene standards and can meet the special requirements for product purity and hygiene.
