Product Name: |

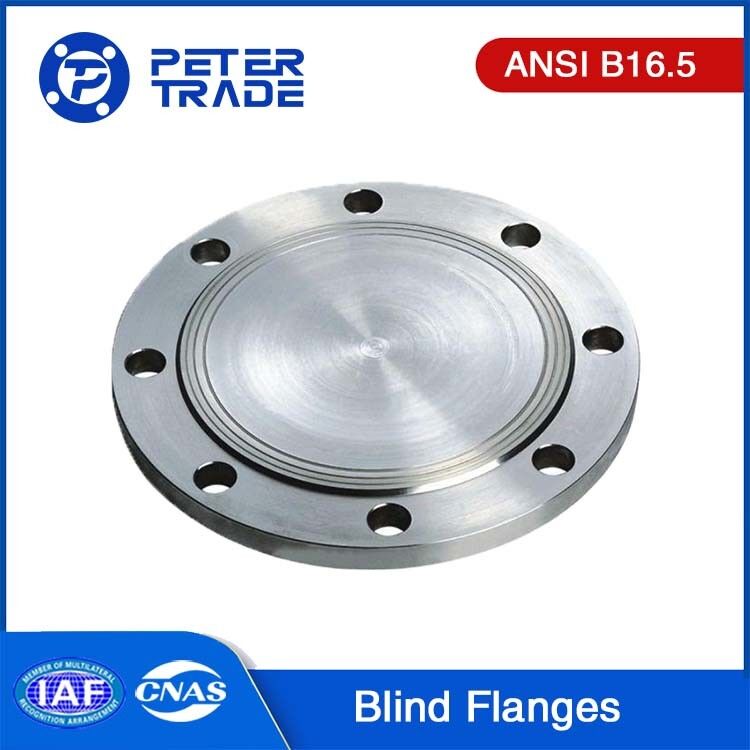

ASME B16.5 Blind Flanges(BLRF) |
Material: |
Carbon Steel Flanges: A105 A350LF2, A694 F60,A694 F52,A694 F65 Etc. |
Pressure: |
Class 900 |
Size: |
1/2''to 24'' |
Export To: |
Mainly In North America, And Other Different Countries: UK, Germany, Netherland, Brazil, Korea, Japan, India, Egypt, Dubai, Qatar, Saudi Arabia, Indonesia, Singapore And Etc. |
Applications: |
Petrochemical, Pipe Engineering, Public Services And Water Works. |
Product Name: |
ASME B16.5 Blind Flanges(BLRF) |
Material: |
Carbon Steel Flanges: A105 A350LF2, A694 F60,A694 F52,A694 F65 Etc. |
Pressure: |
Class 900 |
Size: |
1/2''to 24'' |
Export To: |
Mainly In North America, And Other Different Countries: UK, Germany, Netherland, Brazil, Korea, Japan, India, Egypt, Dubai, Qatar, Saudi Arabia, Indonesia, Singapore And Etc. |
Applications: |
Petrochemical, Pipe Engineering, Public Services And Water Works. |
ANSI/ASME B16.5 Carbon Steel Blind Flanges Class 900LB BLRF for Industrial Applications
Introduction:
Shaanxi Peter International Trade Co., Ltd. is a well-established company with extensive experience in the production of ANSI B16.5 Class 900 Blind Flanges. We are dedicated to providing a wide range of flanges that cater to the diverse needs of our customers.
Our ANSI B16.5 Class 900 Blind Flanges are crafted with precision and adhere to stringent quality standards. We recognize the crucial role these flanges play in sealing pipe systems and ensuring their integrity. To guarantee durability and long-lasting performance, we exclusively use high-quality materials such as carbon steel, stainless steel, or alloy steel.
Our ANSI B16.5 Class 900 Blind Flanges comply with the ANSI B16.5 standard, meeting industry requirements for dimensions, tolerances, materials, and testing. We prioritize quality assurance and proudly guarantee the exceptional performance and reliability of our blind flanges, even in demanding applications.
Description of ANSI B16.5 Blind Flanges:
Blind flanges conforming to ANSI B16.5 are available in two styles, Raised Face (RF) and Flat Face (FF). Unlike other flange types, they don't have a center bore or opening and are instead used to seal the end of a piping system, preventing flow rather than creating a connection point for liquid, gas, or air. Blind flanges serve various purposes such as testing pipe pressure, providing an access point in a piping system, temporarily sealing a piping system for modification or repair, or terminating a piping system permanently.
One of the primary benefits of using blind flanges is that they can be bolted rather than welded in place. This makes maintenance and inspection of the pipe system easier and allows for future expansion. To create a tight seal, a gasket is paired with the blind flange. The gasket fills the space between the flange faces, preventing any liquid or gas from leaking out.
ANSI/ASME B16.5 Blind Flange Dimensions:
ANSI/ASME B16.5 Class 900 BLIND FLANGES BLRF | |||||||
Nominal Pipe size | Outside Diameter | O.D.of Raised Face | Thickness | Drilling |
Approximate Weight(lb) |
||
D | G | T | Bolt circle diameter | Number of holes | Diameter of Bolt | ||
1/2'' | 121 | 35.1 | 22.4 | 82.6 | 4 | 22.4 | 4 |
3/4'' | 130 | 42.9 | 25.4 | 88.9 | 4 | 22.4 | 6 |
1'' | 149 | 50.8 | 28.4 | 101.6 | 4 | 25.4 | 9 |
1.1/4'' | 159 | 63.5 | 28.4 | 111.3 | 4 | 25.4 | 10 |
1.1/2'' | 178 | 73.2 | 31.8 | 124 | 4 | 28.4 | 14 |
2'' | 216 | 91.9 | 38.1 | 165.1 | 8 | 25.4 | 25 |
2.1/2'' | 244 | 104.6 | 41.1 | 190.5 | 8 | 28.4 | 32 |
3'' | 241 | 127 | 38.1 | 190.5 | 8 | 25.4 | 35 |
4'' | 292 | 157.2 | 44.5 | 235 | 8 | 31.8 | 54 |
5'' | 349 | 185.7 | 50.8 | 279.4 | 8 | 35.1 | 87 |
6'' | 381 | 215.9 | 55.6 | 317.5 | 12 | 31.8 | 115 |
8'' | 470 | 269.7 | 63.5 | 393.7 | 12 | 38.1 | 200 |
10'' | 546 | 323.9 | 69.9 | 469.9 | 16 | 38.1 | 290 |
12'' | 610 | 381 | 79.2 | 533.4 | 20 | 38.1 | 415 |
14'' | 641 | 412.8 | 85.9 | 558.8 | 20 | 41.1 | 520 |
16'' | 705 | 469.9 | 88.9 | 616 | 20 | 44.5 | 619 |
18'' | 787 | 533.4 | 101.6 | 685.8 | 20 | 50.8 | 880 |
20'' | 857 | 584.2 | 108 | 749.3 | 20 | 53.8 | 1107 |
24'' | 1041 | 692.2 | 139.7 | 901.7 | 20 | 66.5 | 2099 |
1.Dimensions are in millimeters.
2.Dimensions can be specified by different purchasers.
3. For sizes 1/2’’-2.1/2’’, Dimensions of ASME B16.5 Class 900 Blind Flanges are the same as ASME B16.5 Class 1500 Blind Flanges.
Advantages of ANSI/ASME B16.5 Class 900 Carbon Steel Blind Flanges:
ANSI/ASME B16.5 Class 900 Carbon Steel Blind Flanges offer several advantages in various industrial applications. Here are some of the key advantages:
High Pressure Rating: Class 900 flanges are designed to withstand higher pressure compared to lower class ratings. These blind flanges can handle significantly higher pressures, making them suitable for demanding applications that involve high-pressure systems.
Durable and Sturdy: Carbon steel is known for its strength and durability. Class 900 carbon steel blind flanges provide excellent structural integrity, ensuring long-lasting performance even in harsh operating conditions.
Wide Range of Applications: ANSI/ASME B16.5 Class 900 Carbon Steel Blind Flanges find application in diverse industries such as oil and gas, chemical, power generation, and more. Their high-pressure rating makes them suitable for critical applications where the sealing of pipelines is crucial.
Reliable Sealing: Blind flanges are used to seal off the end of a pipeline or vessel. Class 900 blind flanges provide a reliable and leak-free seal, ensuring the safety and integrity of the system.
Standard Compliance: ANSI/ASME B16.5 is a widely recognized standard for flange dimensions and specifications. Class 900 flanges conform to this standard, ensuring compatibility and interchangeability with other components in the piping system.
Cost-Effective Solution: Class 900 carbon steel blind flanges offer a cost-effective solution for high-pressure applications compared to higher-class ratings. They provide the necessary strength and performance without the need for more expensive materials or designs.
Significance of Carbon Steel Blind Flanges in the industry:
Pipeline Isolation: Carbon steel blind flanges are essential for isolating and closing off sections of pipeline systems. They are used when a specific section of the pipeline needs to be temporarily blocked or sealed, allowing for maintenance, repairs, or modifications to be carried out safely.
Pressure Containment: These flanges are designed to withstand high-pressure environments. They provide a reliable seal, preventing any leaks that could potentially lead to hazardous situations or equipment failure. This is especially crucial in industries such as oil and gas, chemical processing, and power generation.
Compatibility with Carbon Steel Pipelines: Carbon steel blind flanges are compatible with carbon steel pipelines, which are commonly used in various industrial applications. This compatibility ensures a secure and efficient connection between pipelines and flanges, reducing the risk of leaks or system failures.
Corrosion Resistance: Carbon steel blind flanges can be coated or lined with materials that enhance their corrosion resistance properties. This is particularly important in industries where the pipelines may come into contact with corrosive substances or operate in aggressive environments.
Versatility: Carbon steel blind flanges find applications in a wide range of industries, including petrochemical, oil and gas, water treatment, and manufacturing. Their versatility makes them suitable for diverse processes and systems.
Cost-Effective Solution: Carbon steel blind flanges offer a cost-effective solution without compromising on performance and durability. They provide a balance between strength, reliability, and affordability, making them a popular choice in many industrial applications.
Carbon steel blind flanges play a vital role in the industrial sector by ensuring the safety, integrity, and efficiency of pipeline systems. Their ability to withstand high pressures, compatibility with carbon steel pipelines, and corrosion resistance make them indispensable components in various industrial processes.
