Class 600 ASME B16.5 Flange Carbon Steel and Stainless Steel Blind Flanges RF NPS 1/2 To 24 For Oil And Gas Pipelines

Product Details

Place of Origin: Xi'an, Shaanxi Province, China

Brand Name: PeterTrade(PT)

Payment & Shipping Terms

Minimum Order Quantity: 1-10 Pieces

Price: negotiable

Packaging Details: Wooden Case,plywood Case,pallet Etc.

Delivery Time: about 15-45 days, accordingly

Payment Terms: D/A, T/T, L/C,D/P

Supply Ability: 100-200 Ton/Tons Per Month

Get Best Price
Highlight:

ansi 600 flange NPS 1/2

,

flange asme b16.5 NPS 1/2

,

flange asme b16.5 NPS 24

Product Name:
Blind Flanges Raised Face
Standard:
ASME B16.5
Product Face Type:
Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF)
Material:
Carbon Steel Flanges
Other Materials:
Stainless Steel, Alloy Steel And Others As Per Your Requirement
Pressure:
Class 600
Size:
NPS 1/2 To NPS 24
Surface Treatment:
Black Painting / Anti Rust Oil / Hot Dip Galvanized
Export Countries:
USA, Canada, UK, Germany, Netherland, Brazil, Korea, Japan, India, Egypt, Dubai, Qatar, Saudi Arabia, Indonesia, Singapore And Etc.
Applications:
Oil And Gas Pipelines, Chemical Plants, Power Generation Facilities, And Refineries
Product Name:
Blind Flanges Raised Face
Standard:
ASME B16.5
Product Face Type:
Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF)
Material:
Carbon Steel Flanges
Other Materials:
Stainless Steel, Alloy Steel And Others As Per Your Requirement
Pressure:
Class 600
Size:
NPS 1/2 To NPS 24
Surface Treatment:
Black Painting / Anti Rust Oil / Hot Dip Galvanized
Export Countries:
USA, Canada, UK, Germany, Netherland, Brazil, Korea, Japan, India, Egypt, Dubai, Qatar, Saudi Arabia, Indonesia, Singapore And Etc.
Applications:
Oil And Gas Pipelines, Chemical Plants, Power Generation Facilities, And Refineries
Class 600 ASME B16.5 Flange Carbon Steel and Stainless Steel Blind Flanges RF NPS 1/2 To 24 For Oil And Gas Pipelines

ANSI/ASME B16.5 Carbon Steel Blind Flanges Class 600LB BLRF for Industrial Applications

Introduction:

Shaanxi Peter International Trade Co., Ltd. is a reputable and experienced company that specializes in the production of ANSI B16.5 Class 600 Blind Flanges. With our wealth of industry knowledge, we take pride in offering a comprehensive range of these flanges to meet the diverse needs of our customers.



Our ANSI B16.5 Class 600 Blind Flanges are manufactured with precision and adhere to the highest quality standards. We understand the critical role these flanges play in sealing pipe systems and ensuring their integrity. That's why we utilize top-quality materials, such as carbon steel, stainless steel, or alloy steel, to ensure durability and long-lasting performance.



Our ANSI B16.5 Class 600 Blind Flanges comply with the ANSI B16.5 standard, ensuring that they meet industry requirements for dimensions, tolerances, materials, and testing. We are committed to quality assurance and guarantee the performance and reliability of our blind flanges in demanding applications.





Description of ANSI B16.5 Blind Flanges:

ANSI B16.5 Blind flanges come in Raised Face (RF) and Flat Face (FF) styles, but unlike other flange types, they don't have a center bore or opening. They are used to seal the end of a piping system and prevent flow rather than creating a connection point for liquid, gas, or air. Blind flanges serve various purposes such as testing pipe pressure, providing an access point in a piping system, temporarily sealing a piping system for modification or repair, or terminating a piping system permanently.



One of the main advantages of blind flanges is that they are bolted rather than welded in place. This allows for easier access when maintaining or inspecting the pipe system, as well as allowing for future expansion. To create a tight seal, a gasket is paired with the blind flange. The gasket fills the space between the flange faces, preventing any liquid or gas from leaking out.





ANSI/ASME B16.5 Blind Flange Dimensions:

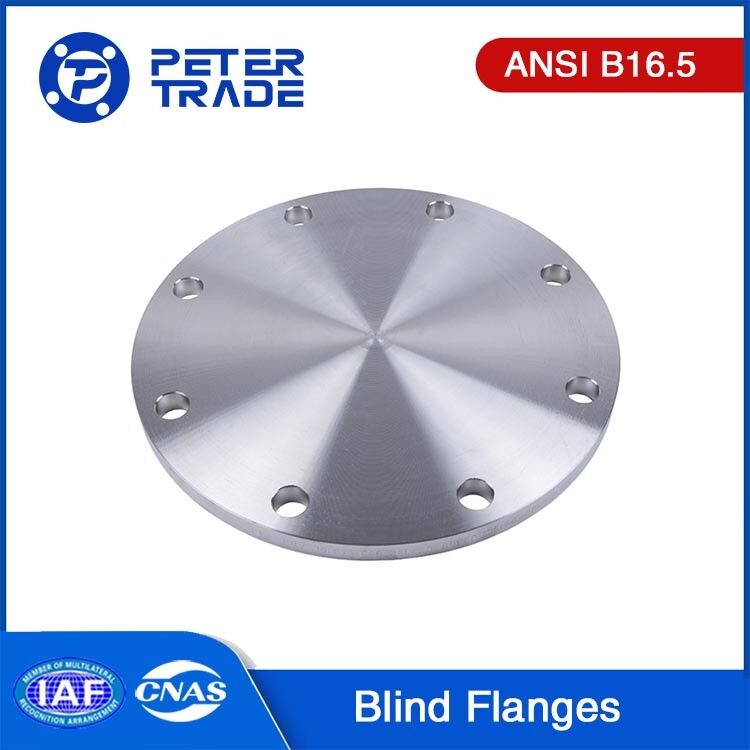

Class 600 ASME B16.5 Flange Carbon Steel and Stainless Steel Blind Flanges RF NPS 1/2 To 24 For Oil And Gas Pipelines 0

ANSI/ASME B16.5 Class 600 BLIND FLANGES BLRF
Nominal Pipe size Outside Diameter O.D.of Raised Face Thickness Drilling

Approximate

Weight(lb)

D G T Bolt circle diameter Number of holes Diameter of Bolt
1/2'' 95 35.1 14.2 66.5 4 15.7 2
3/4'' 117 42.9 15.7 82.6 4 19.1 3
1'' 124 50.8 17.5 88.9 4 19.1 4
1.1/4'' 133 63.5 20.6 98.6 4 19.1 5
1.1/2'' 155 73.2 22.4 114.3 4 22.4 8
2'' 165 91.9 25.4 127 8 19.1 10
2.1/2'' 191 104.6 28.4 149.4 8 22.4 15
3'' 210 127 31.8 168.1 8 22.4 20
3.1/2'' 229 139.7 35.1 184.2 8 25.4 29
4'' 273 157.2 38.1 215.9 8 25.4 41
5'' 330 185.7 44.5 266.7 8 28.4 68
6'' 356 215.9 47.8 292.1 12 28.4 86
8'' 419 269.7 55.6 349.3 12 31.8 140
10'' 508 323.9 63.5 431.8 16 35.1 230
12'' 559 381 66.7 489 20 35.1 295
14'' 603 412.8 69.9 527.1 20 38.1 355
16'' 686 469.9 76.2 603.3 20 41.1 495
18'' 743 533.4 82.6 654.1 20 44.5 630
20'' 813 584.2 88.9 723.9 24 44.5 810
22'' 870 641.1 95.3 778 24 44.5 1000
24'' 940 692.2 101.6 838.2 24 50.8 1250

1.Dimensions are in millimeters.

2.Dimensions can be specified by different purchasers.

3.For sizes 1/2’’-3.1/2’’, Dimensions of ASME B16.5 Class 600 Blind Flanges are the same as ASME B16.5 Class 400 Blind Flanges.





Features of ANSI/ASME B16.5 Class 600 Carbon Steel Blind Flanges:

ANSI/ASME B16.5 Class 600 Carbon Steel Blind Flanges have several notable features that make them suitable for specific applications. Here are some key features:



Pressure Rating: ANSI/ASME B16.5 Class 600 blind flanges have a maximum pressure rating of 600 pounds per square inch (psi). This rating indicates their ability to withstand high-pressure conditions in various piping systems.



Material: These blind flanges are manufactured using carbon steel, which offers good strength and durability. Carbon steel is a cost-effective material choice for general-purpose applications where corrosion resistance is not the primary concern.



Size Range: ANSI/ASME B16.5 Class 600 Carbon Steel Blind Flanges are available in a wide range of sizes, typically ranging from 1/2" to 24". This allows for flexibility in accommodating different pipe sizes and connection requirements.



Standard Compliance: These blind flanges conform to the ANSI/ASME B16.5 standard, which sets guidelines for dimensions, materials, and pressure ratings of flanges used in piping systems. Compliance with this standard ensures compatibility and interchangeability with other components.



Raised Face or Flat Face: ANSI/ASME B16.5 Class 600 Carbon Steel Blind Flanges are available with either a raised face or a flat face. The raised face design provides a mating surface that allows for better sealing, while the flat face design offers a smooth surface for applications where leakage is not a concern.



Versatile Application: Class 600 blind flanges are commonly used in applications that require moderate to high-pressure ratings, such as oil and gas pipelines, chemical plants, power generation facilities, and refineries. They provide a secure closure and prevent leakage at the end of pipes or valves.





Applications of ASME B16.5 Class 600 Carbon Steel Blind Flanges:

ASME B16.5 Class 600 Carbon Steel Blind Flanges are used in a variety of applications in different industries due to their high-pressure rating, durability, and reliability. Here are some of the most common applications:



Oil and Gas Industry: These flanges are widely used in pipelines, refineries, and offshore platforms for connecting pipes and sealing off the ends of pipelines during maintenance, repair, or in emergency situations.



Chemical Industry: ASME B16.5 Class 600 Carbon Steel Blind Flanges are commonly used in chemical processing plants for connecting pipes and sealing off the ends of pipelines, ensuring the safe transport of chemicals.



Power Generation Industry: Blind flanges find applications in power plants and heating systems. They are used for connecting pipes in steam lines, hot water systems, and other high-pressure applications.



Water Treatment Industry: These flanges are used in wastewater treatment plants and environmental protection facilities for connecting pipes, tanks, and equipment, providing a secure and tight seal to prevent leakage of hazardous substances.



Pharmaceutical and Food Industry: Carbon steel blind flanges are commonly used in pharmaceutical and food processing plants for connecting sanitary piping systems. They ensure a hygienic and leak-free connection, maintaining the purity of the products.



ASME B16.5 Class 600 Carbon Steel Blind Flanges adhere to international standards, making them compatible with different regulations and suitable for use in various countries across the globe.
