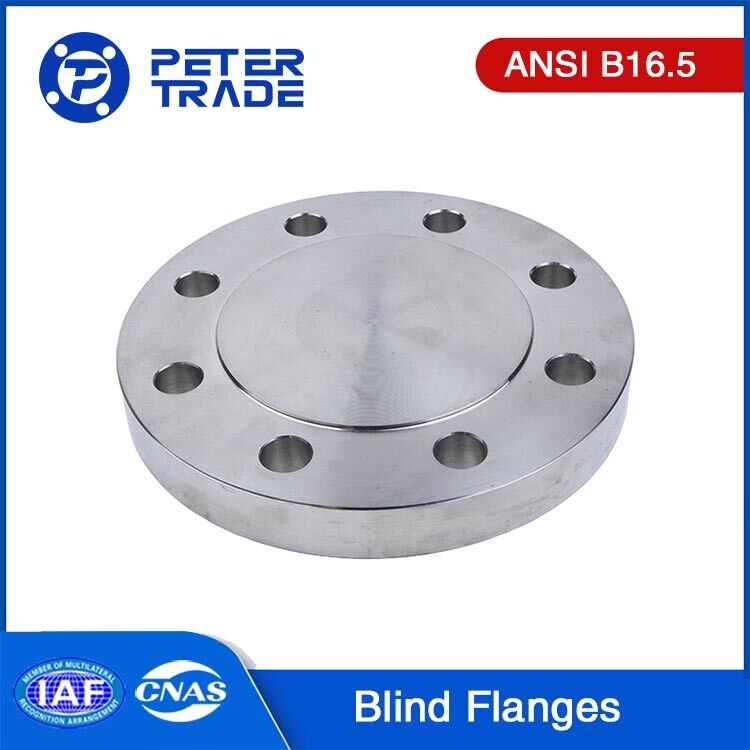

ANSI / ASME B16.5 Class 400LB BLRF BLFF A105 Carbon Steel and Stainless Steel Blind Flanges for Oil and Gas Pipeline

Product Details

Place of Origin: Xi'an, Shaanxi Province, China

Brand Name: PeterTrade(PT)

Payment & Shipping Terms

Minimum Order Quantity: 1-10 Pieces

Price: negotiable

Packaging Details: Wooden Case,plywood Case,pallet Etc.

Delivery Time: about 15-45 days, accordingly

Payment Terms: D/A, T/T, L/C,D/P

Supply Ability: 100-200 Ton/Tons Per Month

Get Best Price
Highlight:

ASME B16.5 high hub blind flange

,

high hub blind flange 400LB BLRF

,

Blind Flange Class 400LB BLRF

Product Name:
Ansi B16.5 Blind Flanges
Product Face Type:
Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF)
Material:
Carbon Steel Flanges
Class(LBS):
400
Export Countries:
USA, Canada, UK, Germany, Netherland, Brazil, Korea, Japan, India, Egypt, Dubai, Qatar, Saudi Arabia, Indonesia, Singapore And Etc.
Apply For:
Chemical, Oil And Gas, Wastewater Treatment And Environmental Protection, Pharmaceutical And Food, Power And Heating Industry
Product Name:
Ansi B16.5 Blind Flanges
Product Face Type:
Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF)
Material:
Carbon Steel Flanges
Class(LBS):
400
Export Countries:
USA, Canada, UK, Germany, Netherland, Brazil, Korea, Japan, India, Egypt, Dubai, Qatar, Saudi Arabia, Indonesia, Singapore And Etc.
Apply For:
Chemical, Oil And Gas, Wastewater Treatment And Environmental Protection, Pharmaceutical And Food, Power And Heating Industry
ANSI / ASME B16.5 Class 400LB BLRF BLFF A105 Carbon Steel and Stainless Steel Blind Flanges for Oil and Gas Pipeline

ANSI/ASME B16.5 Carbon Steel Blind Flanges Class 400LB BLRF for Industrial Applications

Introduction:

Thank you for your interest in Shaanxi Peter International Trade Co., Ltd. We are a well-established and respected firm with extensive experience in the industry, and we are pleased to introduce our comprehensive range of ANSI B16.5 Class 400 Blind Flanges.



Our blind flanges are designed and manufactured using high-quality materials such as carbon steel or stainless steel, ensuring durability and corrosion resistance. They feature a solid, flat disc that covers the end of the pipeline, providing a reliable seal.



One of the key features of our ANSI B16.5 Class 400 Blind Flanges is their pressure rating. With a Class 400 pressure rating, they are suitable for applications with working pressures up to 400 pounds per square inch (psi). This rating ensures their reliability and safety in various high-pressure environments.



We offer a wide range of sizes to accommodate different piping system requirements, ranging from smaller diameters to larger sizes. Additionally, our blind flanges are versatile and can be used in various industries, including oil and gas, petrochemical, power generation, and more.



Our ANSI B16.5 Class 400 Blind Flanges comply with the ANSI B16.5 standard, ensuring that they meet industry requirements for dimensions, tolerances, materials, and testing. We are committed to quality assurance and guarantee the performance and reliability of our blind flanges in demanding applications.





Description of Carbon Steel Blind Flanges:

Carbon steel blind flanges are solid pieces used to block the end of a pipe system or valve. They are commonly used to shut off a piping system or to terminate it. These flanges are designed without a bore, making them ideal for applications where the end of the line needs to be closed off. Carbon steel blind flanges are typically used in high-pressure or high-temperature applications due to the strength and durability of carbon steel material. They are available in various sizes and pressure ratings to accommodate different piping system requirements. Additionally, these flanges are often used in conjunction with other equipment such as valves and fittings to provide a secure and sealed termination point for the piping system.



Carbon Steel Blind flanges are relatively simple in construction compared to other flange types, requiring less mechanical machining and being heavier due to the absence of a bore. Although these flanges are typically provided as blanks to accommodate slip on flanges and weld neck flanges, we also offer custom machining options. Common modifications include center machining for NPT threads and custom bore sizes for use as slip on flanges without a hub.





ANSI/ASME B16.5 Blind Flange Dimensions:

ANSI / ASME B16.5 Class 400LB BLRF BLFF A105 Carbon Steel and Stainless Steel Blind Flanges for Oil and Gas Pipeline 0

ANSI/ASME B16.5 Class 400 BLIND FLANGES BLRF
Nominal Pipe size Outside Diameter O.D.of Raised Face Thickness Drilling

Approximate

Weight(lb)

D G T Bolt circle diameter Number of holes Diameter of Bolt
1/2'' 95 35.1 14.2 66.5 4 15.7 2
3/4'' 117 42.9 15.7 82.6 4 19.1 3
1'' 124 50.8 17.5 88.9 4 19.1 4
1.1/4'' 133 63.5 20.6 98.6 4 19.1 5
1.1/2'' 155 73.2 22.4 114.3 4 22.4 8
2'' 165 91.9 25.4 127 8 19.1 10
2.1/2'' 191 104.6 28.4 149.4 8 22.4 15
3'' 210 127 31.8 168.1 8 22.4 20
3.1/2'' 229 139.7 35.1 184.2 8 25.4 29
4'' 254 157.2 35.1 200.2 8 25.4 33
5'' 279 185.7 38.1 235 8 25.4 44
6'' 318 215.9 41.3 269.7 12 25.4 61
8'' 381 269.7 47.7 330.2 12 28.4 100
10'' 445 323.9 54.0 387.4 16 31.8 155
12'' 521 381 57.2 450.9 16 35.1 225
14'' 584 412.8 60.4 514.4 20 35.1 290
16'' 648 469.9 63.5 571.5 20 38.1 370
18'' 711 533.4 66.7 628.7 24 38.1 455
20'' 775 584.2 69.9 685.8 24 41.1 587
22'' 838 641.4 73.2 743.0 24 44.5 720
24'' 914 692.2 76.2 812.8 24 47.8 890

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.

3.For sizes 1/2’’-3.1/2’’, Dimensions of ASME B16.5 Class 400 Blind Flanges are the same as ASME B16.5 Class 600 Blind Flanges.





Features of ANSI/ASME B16.5 Class 400 Carbon Steel Blind Flanges:

ANSI/ASME B16.5 Carbon Steel Blind Flanges Class 400LB is a type of flange that has gained popularity in industrial applications due to its high strength, durability, and reliability. These flanges are used to close the end of piping systems or vessels and offer a secure seal to prevent leaks and ensure the safety of the system.



Here are some key features and benefits of ANSI/ASME B16.5 Carbon Steel Blind Flanges Class 400LB:



Material Composition: These flanges are made of carbon steel, an alloy composed primarily of iron and carbon. The carbon content provides enhanced strength and hardness, making them suitable for high-pressure and high-temperature applications.



High Strength: ANSI/ASME B16.5 Carbon Steel Blind Flanges Class 400LB have excellent tensile strength and can withstand high pressures and mechanical stress. This strength ensures the integrity and reliability of the flanges in demanding industrial environments.



Corrosion Resistance: Carbon steel is not as corrosion-resistant as stainless steel, but it can still provide adequate protection against most common atmospheric and chemical corrosive agents. However, additional coatings or treatments may be required for more corrosive environments.



Wide Range of Sizes: These flanges are available in various sizes, ranging from small diameters to larger sizes, to accommodate different piping system requirements.



Versatility: ANSI/ASME B16.5 Carbon Steel Blind Flanges Class 400LB are versatile components used in various industries, including oil and gas, petrochemical, power generation, and more. They provide a reliable closure for pipelines, tanks, or vessels, ensuring the safety and efficiency of the system.



Easy Availability: ANSI/ASME B16.5 is a widely recognized standard, and carbon steel blind flanges meeting this standard are readily available in the market. This ensures easy sourcing and quick availability of these flanges for various projects.



Compliance with Standards: ANSI/ASME B16.5 Carbon Steel Blind Flanges Class 400LB comply with industry standards, ensuring dimensional accuracy, material quality, and performance reliability. Compliance with standards guarantees the suitability and compatibility of these flanges in different applications.





Applications of ASME B16.5 Class 400 Carbon Steel Blind Flanges:

ASME B16.5 Class 400 carbon steel blind flanges have a wide range of applications in various industries due to their specific design and capabilities. Some common applications include:



Petrochemical Industry: Carbon steel blind flanges are often used in the petrochemical industry for sealing off the ends of pipelines, tanks, and pressure vessels. They provide a secure and leak-proof termination point, which is essential for containing hazardous materials and maintaining system integrity.



Oil and Gas Industry: These blind flanges are utilized in oil and gas facilities for closing off pipe ends during maintenance, repair, or decommissioning activities. They are also employed in pipeline systems to create terminations that can be easily modified or reopened for future expansions.



Power Generation: In power plants, ASME B16.5 Class 400 carbon steel blind flanges are employed in steam, water, and gas piping systems. They serve as closure devices for pipe terminations and provide a means to isolate sections of the piping network during maintenance and repairs.



Chemical Processing: Carbon steel blind flanges are used in chemical processing facilities to seal openings and provide a secure termination point for pipelines, reactors, and storage vessels. They help prevent leaks and maintain the integrity of the system when handling corrosive or hazardous chemicals.



Water Treatment and Distribution: These flanges find application in water treatment facilities and distribution systems for capping off unused pipe ends, creating blockages, or providing access points for future expansion or modification of the infrastructure.



Overall, ASME B16.5 Class 400 carbon steel blind flanges are versatile components that play a crucial role in creating secure terminations, facilitating maintenance, and ensuring the integrity of piping systems across a wide range of industrial applications.
