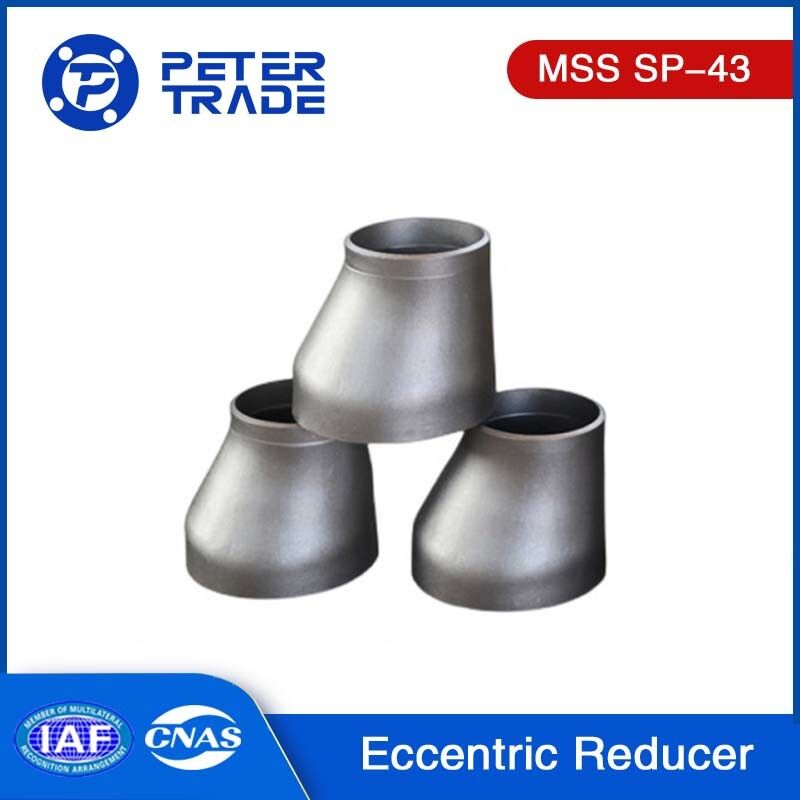

MSS SP-43 Stainless Steel Seamless/Butt Welding Fittings ASTM A403 Eccentric Reducers for Pipe Transition Solutions

MSS SP-43 Stainless Steel Butt Weld/Seamless ASTM A403 Eccentric Reducers for Pipe Transition Solutions

Product Description:

Description of MSS SP-43 Butt Welding Fittings:

MSS SP 43 butt welding fittings are either wrought or fabricated for applications requiring low pressure and corrosion resistance. These fittings comprise 90° and 45° long radius elbows, straight and reducing tees, lap joint stub ends, caps, 180° long radius returns, as well as concentric and eccentric reducers. MSS SP 43 standards encompass fittings designed for compatibility with schedule 5S and 10S pipes across all nominal pipe sizes (NPS) specified in ASME B36.19. However, short pattern stub ends are suitable for use with SCH 40S pipes.

MSS SP-43 butt welding fittings are designed to match the dimensions of the pipes they are connected to, ensuring a proper fit and alignment in piping systems. The welding ends of MSS SP-43 fittings must adhere to established pipe standards concerning outside diameters and tolerances for seamless welding and installation.

According to MSS SP-43 specifications, the nominal wall thickness of the fittings should match that of the pipe to which they are being welded. However, fittings with heavier walls can be butt-welded to lighter wall pipes if the heavier wall is tapered on the inside or outside to align with the dimensions of the lighter pipe. This tapering allows for a smooth transition and proper connection between the fitting and the pipe, ensuring a secure and leak-free joint.

By following these guidelines, MSS SP-43 fittings maintain compatibility with pipe standards and provide a reliable connection in piping systems, meeting the requirements for low-pressure and corrosion-resistant applications.

Materials and Heat Teatment of MSS SP-43 Long Radius 90 Degree Elbows:

The materials covered by MSS SP 43 for fittings include austenitic stainless steels such as Types 304/304L, 316/316L, 317/317L, 321, and 347. Additionally, nonferrous metals like titanium (Gr.1, Gr.2, Gr.3, Gr.5, Gr.7, Gr.12), Inconel 600, Inconel 625, Hastelloy C-276, Hastelloy C-22, Monel 400, Incoloy 800, Incoloy 825/925, Alloy 31, and Alloy 20 are also included.

Proper heat treatment is crucial and should be carried out based on the specific material used to ensure maximum corrosion resistance. This helps enhance the mechanical properties and overall performance of the fittings in various operating conditions.

A stainless steel concentric reducer is a pipe fitting used to connect two pipes of different diameters in a piping system while maintaining a common centerline. It has a conical shape with one end larger in diameter than the other, allowing for a smooth transition between the two pipes. The stainless steel concentric reducer has a symmetrical design, with the centerlines of both ends aligned. This means that the reducer forms a straight line when viewed from the side, providing a gradual and uniform reduction in diameter. The ends of the concentric reducer are designed for buttwelding to the corresponding pipes. They have a beveled edge to facilitate the welding process and ensure a strong and leak-proof connection.

MSS SP-43 Concentric Reducers are available in a range of sizes and dimensions, specified by the standard. The dimensions include the larger and smaller pipe diameters, the overall length of the reducer, and the specific wall thickness.The standard provides guidelines for the pressure and temperature ratings of MSS SP-43 Concentric Reducers based on the materials used and the size of the fittings. These ratings ensure that the reducers can safely handle the expected operating conditions in a piping system.

Furthermore, all fittings must adhere to welding standards, with welders, welding operators, and welding procedures being qualified according to the guidelines specified in ASME Boiler and Pressure Vessel Code (BPVC) Section IX. This ensures that welding processes are performed correctly and meet the required quality standards for the safe and efficient operation of the fittings in industrial applications.

MSS SP-43 Eccentric Reducer Dimensions:

Various Grades of Stainless Steel Buttweld Eccentric Reducers:

Various Grades of Stainless Steel Buttweld/Seamless Concentric Reducers:

Various grades of stainless steel are used in the manufacturing of buttweld/seamless concentric reducers, each offering specific properties suitable for different applications. Here are some common grades of stainless steel used for buttweld/seamless concentric reducers:

• Grade 304/304L:

  • Grade 304 is a widely used austenitic stainless steel known for its excellent corrosion resistance, high-temperature strength, and ease of fabrication.
  • Grade 304L is a low-carbon version of 304, offering improved weldability and intergranular corrosion resistance.
  • These grades are commonly used in food processing, chemical, and pharmaceutical industries.

1. Grade 316/316L:

   • Grade 316 is a molybdenum-bearing austenitic stainless steel with enhanced corrosion resistance, particularly against chlorides and acids.
   • Grade 316L is the low-carbon version of 316, providing improved weldability and resistance to sensitization.
   • These grades are suitable for marine applications, chemical processing, and pharmaceutical industries.

2. Grade 321/321H:

   • Grade 321 is a stabilized austenitic stainless steel containing titanium, which provides resistance to intergranular corrosion at elevated temperatures.
   • Grade 321H is the high carbon version of 321, offering better high-temperature strength.
   • These grades are commonly used in high-temperature applications such as heat exchangers and thermal processing equipment.

3. Grade 347/347H:

   • Grade 347 is a columbium-stabilized austenitic stainless steel that offers improved intergranular corrosion resistance compared to 304 and 316.
   • Grade 347H has a higher carbon content for enhanced high-temperature strength.
   • These grades are suitable for applications in the chemical and petrochemical industries.

4. Grade 904L:

   • Grade 904L is a high-alloy austenitic stainless steel with high levels of chromium, nickel, molybdenum, and copper, providing excellent corrosion resistance in a wide range of environments.
   • This grade is often used in aggressive chemical processing, pharmaceutical, and seawater applications.

MSS SP-43 Stainless Steel Eccentric Reducers are commonly used in various industrial applications where there is a need to transition between pipes of different diameters while also ensuring proper drainage and preventing the accumulation of fluids or gases. Here are some specific use cases for MSS SP-43 Stainless Steel Eccentric Reducers:

1. Drainage Systems: MSS SP-43 Stainless Steel Eccentric Reducers are often used in drainage systems, particularly in wastewater or sewer lines. The offset centerline design helps to ensure that any trapped fluids or solids can be efficiently drained out of the system, reducing the risk of blockages or backups.

2. Pump and Compressor Connections: In piping systems that involve pumps or compressors, MSS SP-43 stainless steel eccentric reducers can be used to transition from a larger diameter pipe to a smaller diameter pipe. This helps to match the outlet size of the pump or compressor, ensuring smooth and efficient flow without creating excessive pressure drop.

3. Ventilation and Exhaust Systems: MSS SP-43 Stainless Steel Eccentric Reducers find applications in ventilation and exhaust systems, where they are used to transition between different-sized pipes or ducts. The offset design facilitates proper airflow and maintains the desired direction of flow, minimizing turbulence and pressure losses.

4. Process Industries: MSS SP-43 Stainless Steel Eccentric Reducers are widely used in various process industries such as chemical, petrochemical, pharmaceutical, and food processing plants. They enable smooth transitions between pipes of different sizes, accommodating changes in flow rates, and ensuring efficient operation of the process.
