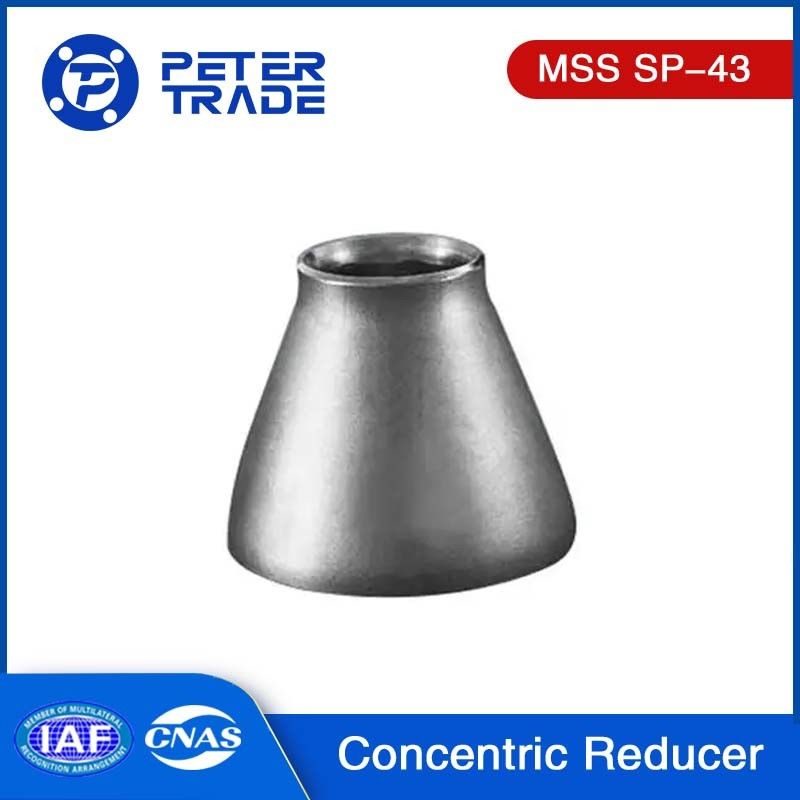

MSS SP-43 Butt Welding/Seamless Stainless Steel Concentric Reducers SCH40 for Chemical and Petrochemical Industries

Company Introduction:

Shaanxi Peter International Trade Co., Ltd. is a well-established and highly reputable supplier in the market, with an impressive track record of more than two decades. With our extensive experience and expertise, we have built a strong reputation as a trusted and reliable source for MSS SP-43 Stainless Steel Butt welding Concentric Reducers. Our primary focus is on delivering high-quality ASME B16.9 Pipe Fittings solutions and ensuring customer satisfaction.

Over the years, we have developed solid relationships with renowned manufacturers, granting us access to a comprehensive range of MSS SP-43 Butt welding Fittings. Our inventory consists of fittings crafted from premium stainless steel, known for its outstanding durability, corrosion resistance, and long lifespan. We understand the significance of precision and compliance with industry standards. Therefore, we meticulously source fittings that meet the stringent specifications outlined in the MSS SP-43 standard.

Description of MSS SP-43 Butt Welding Fittings:

MSS SP 43 butt welding fittings are either wrought or fabricated for applications requiring low pressure and corrosion resistance. These fittings comprise 90° and 45° long radius elbows, straight and reducing tees, lap joint stub ends, caps, 180° long radius returns, as well as concentric and eccentric reducers. MSS SP 43 standards encompass fittings designed for compatibility with schedule 5S and 10S pipes across all nominal pipe sizes (NPS) specified in ASME B36.19. However, short pattern stub ends are suitable for use with SCH 40S pipes.

MSS SP-43 butt welding fittings are designed to match the dimensions of the pipes they are connected to, ensuring a proper fit and alignment in piping systems. The welding ends of MSS SP-43 fittings must adhere to established pipe standards concerning outside diameters and tolerances for seamless welding and installation.

According to MSS SP-43 specifications, the nominal wall thickness of the fittings should match that of the pipe to which they are being welded. However, fittings with heavier walls can be butt-welded to lighter wall pipes if the heavier wall is tapered on the inside or outside to align with the dimensions of the lighter pipe. This tapering allows for a smooth transition and proper connection between the fitting and the pipe, ensuring a secure and leak-free joint.

By following these guidelines, MSS SP-43 fittings maintain compatibility with pipe standards and provide a reliable connection in piping systems, meeting the requirements for low-pressure and corrosion-resistant applications.

Materials and Heat Teatment of MSS SP-43 Long Radius 90 Degree Elbows:

The materials covered by MSS SP 43 for fittings include austenitic stainless steels such as Types 304/304L, 316/316L, 317/317L, 321, and 347. Additionally, nonferrous metals like titanium (Gr.1, Gr.2, Gr.3, Gr.5, Gr.7, Gr.12), Inconel 600, Inconel 625, Hastelloy C-276, Hastelloy C-22, Monel 400, Incoloy 800, Incoloy 825/925, Alloy 31, and Alloy 20 are also included.

Proper heat treatment is crucial and should be carried out based on the specific material used to ensure maximum corrosion resistance. This helps enhance the mechanical properties and overall performance of the fittings in various operating conditions.

A stainless steel concentric reducer is a pipe fitting used to connect two pipes of different diameters in a piping system while maintaining a common centerline. It has a conical shape with one end larger in diameter than the other, allowing for a smooth transition between the two pipes. The stainless steel concentric reducer has a symmetrical design, with the centerlines of both ends aligned. This means that the reducer forms a straight line when viewed from the side, providing a gradual and uniform reduction in diameter. The ends of the concentric reducer are designed for buttwelding to the corresponding pipes. They have a beveled edge to facilitate the welding process and ensure a strong and leak-proof connection.

MSS SP-43 Concentric Reducers are available in a range of sizes and dimensions, specified by the standard. The dimensions include the larger and smaller pipe diameters, the overall length of the reducer, and the specific wall thickness.The standard provides guidelines for the pressure and temperature ratings of MSS SP-43 Concentric Reducers based on the materials used and the size of the fittings. These ratings ensure that the reducers can safely handle the expected operating conditions in a piping system.

Furthermore, all fittings must adhere to welding standards, with welders, welding operators, and welding procedures being qualified according to the guidelines specified in ASME Boiler and Pressure Vessel Code (BPVC) Section IX. This ensures that welding processes are performed correctly and meet the required quality standards for the safe and efficient operation of the fittings in industrial applications.

MSS SP-43 Concentric Reducer Dimensions:

Various Grades of Stainless Steel Buttweld/Seamless Concentric Reducers:

Various grades of stainless steel are used in the manufacturing of buttweld/seamless concentric reducers, each offering specific properties suitable for different applications. Here are some common grades of stainless steel used for buttweld/seamless concentric reducers:

1. Grade 304/304L:

   • Grade 304 is a widely used austenitic stainless steel known for its excellent corrosion resistance, high-temperature strength, and ease of fabrication.
   • Grade 304L is a low-carbon version of 304, offering improved weldability and intergranular corrosion resistance.
   • These grades are commonly used in food processing, chemical, and pharmaceutical industries.

2. Grade 316/316L:

   • Grade 316 is a molybdenum-bearing austenitic stainless steel with enhanced corrosion resistance, particularly against chlorides and acids.
   • Grade 316L is the low-carbon version of 316, providing improved weldability and resistance to sensitization.
   • These grades are suitable for marine applications, chemical processing, and pharmaceutical industries.

3. Grade 321/321H:

   • Grade 321 is a stabilized austenitic stainless steel containing titanium, which provides resistance to intergranular corrosion at elevated temperatures.
   • Grade 321H is the high carbon version of 321, offering better high-temperature strength.
   • These grades are commonly used in high-temperature applications such as heat exchangers and thermal processing equipment.

4. Grade 347/347H:

   • Grade 347 is a columbium-stabilized austenitic stainless steel that offers improved intergranular corrosion resistance compared to 304 and 316.
   • Grade 347H has a higher carbon content for enhanced high-temperature strength.
   • These grades are suitable for applications in the chemical and petrochemical industries.

5. Grade 904L:

   • Grade 904L is a high-alloy austenitic stainless steel with high levels of chromium, nickel, molybdenum, and copper, providing excellent corrosion resistance in a wide range of environments.
   • This grade is often used in aggressive chemical processing, pharmaceutical, and seawater applications.

Differences between MSS SP-43 Concentric Reducer and Eccentric Reducer:

Reducers are commonly used in piping systems when there is a need to transition between pipes of different diameters. They help to reduce the diameter of a straight run of pipe, allowing for a smooth and efficient flow of fluid or gas.

Concentric Reducer: This type of reducer has a common centerline, meaning that the ends of the reducer are aligned with each other. It provides a gradual reduction in the pipe diameter, maintaining a smooth flow path and minimizing turbulence.

Eccentric Reducer: In contrast to the concentric reducer, an eccentric reducer has offset centerlines. This means that the ends of the reducer are not aligned, and one end is positioned slightly higher or lower than the other. Eccentric reducers are primarily used in situations where there is a need to prevent the accumulation of air or fluid pockets within the piping system. The offset design helps to facilitate the drainage of any trapped fluids.

MSS SP-43 Stainless Steel Concentric Reducers are commonly used in various industrial applications where there is a need to transition between pipes of different diameters while maintaining a common centerline.

Fluid Flow Control: MSS SP-43 Stainless Steel Concentric Reducers are used to control and regulate fluid flow within piping systems. They allow for a gradual reduction in pipe diameter, minimizing turbulence and pressure losses. This is important in applications where maintaining a specific flow rate or pressure is critical, such as in water distribution systems, process industries, and HVAC systems.

Pump and Compressor Connections: In piping systems involving pumps or compressors, MSS SP-43 Stainless Steel Concentric Reducers are used to transition from a larger diameter pipe to a smaller diameter pipe. This helps to match the outlet size of the pump or compressor, ensuring efficient flow without creating excessive pressure drop. Concentric reducers are commonly used in oil and gas pipelines, water treatment plants, and industrial process systems.

Size Transition: MSS SP-43 Stainless Steel Concentric Reducers are employed when there is a need to connect pipes of different sizes, especially when transitioning from larger to smaller pipes. They provide a smooth and uniform reduction in diameter while maintaining the centerline. This is beneficial in applications such as oil and gas pipelines, chemical processing plants, and water treatment facilities.

Hygienic Applications: MSS SP-43 Stainless Steel Concentric Reducers are commonly used in hygienic applications, particularly in industries such as pharmaceuticals, food and beverage, and dairy processing. These reducers facilitate the transition between pipes of different sizes while maintaining a smooth and clean interior surface, minimizing the risk of product contamination.

High-Temperature Applications: MSS SP-43 Stainless Steel Concentric Reducers can withstand high temperatures and are used in applications that involve hot fluids or gases. They are commonly utilized in power generation plants, refineries, and petrochemical industries.
