Product Details
Place of Origin: Xi'an, Shaanxi Province, China
Brand Name: PeterTrade(PT)
Model Number: ASME B16.9 Equal Cross/Straight Cross
Payment & Shipping Terms
Minimum Order Quantity: 1-10 Pieces
Price: negotiable
Packaging Details: Wooden Case,plywood Case,pallet Etc.
Delivery Time: about 15-45 days, accordingly
Payment Terms: D/A, T/T, L/C,D/P
Supply Ability: 100-200 Ton/Tons Per Month
Standard: |
ASME B16.9 Standard |
Type: |
Seamless / ERW / Welded / Fabricated |
Schedule: |
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Material: |
Carbon Steel ASTM A234 WPB (others According To Customers' Requirements) |
Size: |
From 1/2 NPS To 48 NPS |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Packing Details: |
Wooden Case,plywood Case,pallet Etc. |
Application: |
Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction, Etc. |
Standard: |
ASME B16.9 Standard |
Type: |
Seamless / ERW / Welded / Fabricated |
Schedule: |
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Material: |
Carbon Steel ASTM A234 WPB (others According To Customers' Requirements) |
Size: |
From 1/2 NPS To 48 NPS |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Packing Details: |
Wooden Case,plywood Case,pallet Etc. |
Application: |
Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction, Etc. |
ASME B16.9 Pipe Fitting Cross Butt-welding Fittings Carbon Steel Equal Cross ASTM A234 WPB for Piping Solutions

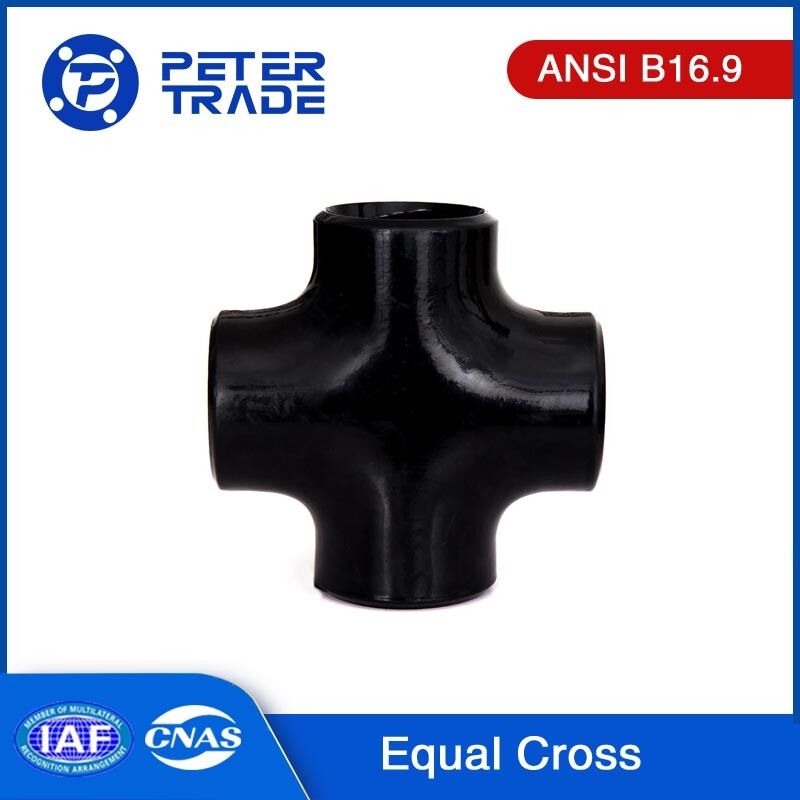

Description of ASME B16.9 Equal Cross/Straight Cross:
The ASME B16.9 straight cross is a type of pipe fitting used to create perpendicular connections within a piping system. It is designed with four outlets, forming a cross shape, hence the name "cross." This fitting allows for the branching of pipes in four directions from the main run, which is often referred to as the "header."
In the case of a straight cross, all four outlets have the same pipe size. This means that the branches and the header all have identical dimensions. This uniformity of pipe size simplifies the installation and ensures consistent flow throughout the system.
The ASME B16.9 standard specifies the dimensions, tolerances, and materials for factory-made wrought butt-welding fittings, including straight crosses. These fittings are commonly used in various industries, such as oil and gas, petrochemical, power generation, and water treatment, where complex piping systems require reliable and efficient connections.
ASME B16.9 Equal Cross/Straight Cross Dimensions:
| ASME B16.9 Equal Cross Dimensions | |||
| NPS | O.D | C(Center-to-End) | M(Center-to-End) |
| 1/2″ | 21.3 | 25 | 25 |
| 3/4″ | 26.7 | 29 | 29 |
| 1″ | 33.4 | 38 | 38 |
| 1 1/4″ | 42.2 | 48 | 48 |
| 1 1/2″ | 48.3 | 57 | 57 |
| 2″ | 60.3 | 64 | 64 |
| 2 1/2″ | 73 | 76 | 76 |
| 3″ | 88.9 | 86 | 86 |
| 3 1/2″ | 101.6 | 95 | 95 |
| 4″ | 114.3 | 105 | 105 |
| 5″ | 141.3 | 124 | 124 |
| 6″ | 168.3 | 143 | 143 |
| 8″ | 219.1 | 178 | 178 |
| 10″ | 273 | 216 | 216 |
| 12″ | 323.8 | 254 | 254 |
| 14″ | 355.6 | 279 | 279 |
| 16″ | 406.4 | 305 | 305 |
| 18″ | 457 | 343 | 343 |
| 20″ | 508 | 381 | 381 |
| 22″ | 559 | 419 | 419 |
| 24″ | 610 | 432 | 432 |
| 26″ | 660 | 495 | 495 |
| 28″ | 711 | 521 | 521 |
| 30″ | 762 | 559 | 559 |
| 32″ | 813 | 597 | 597 |
| 34″ | 864 | 635 | 635 |
| 36″ | 914 | 673 | 673 |
| 38″ | 965 | 711 | 711 |
| 40″ | 1016 | 749 | 749 |
| 42″ | 1067 | 762 | 711 |
| 44″ | 1118 | 813 | 762 |
| 46″ | 1168 | 851 | 800 |
| 48″ | 1219 | 889 | 838 |
Features of Carbon Steel ASTM A234 ASME 16.9 Equal Cross:
Carbon Steel ASTM A234 is a specification that covers wrought carbon steel and alloy steel pipe fittings for high-temperature and high-pressure service. It is commonly used in industries such as oil and gas, petrochemical, power generation, and other process piping systems.
The ASTM A234 specification includes various grades and types of carbon steel fittings, such as elbows, tees, reducers, caps, crosses, and more. These fittings are manufactured through a forging or forming process and are designed to join or connect pipes of different sizes or change the direction of fluid flow.
Carbon Steel ASTM A234 fittings are primarily made from carbon steel, which is an alloy of iron and carbon. The carbon content in the steel provides strength and hardness, while other alloying elements may be present to enhance specific properties.
Carbon Steel ASTM A234 fittings are designed to withstand high temperatures and pressures commonly encountered in industrial applications. They offer excellent mechanical properties and can handle demanding operating conditions.
Carbon Steel ASTM A234 fittings may undergo additional processes such as galvanizing or coating to enhance their corrosion resistance. However, compared to stainless steel or alloy steel fittings, carbon steel fittings may be more susceptible to corrosion in certain environments.
Carbon Steel ASTM A234 fittings are available in various shapes, sizes, and configurations to suit different piping system requirements. They can be manufactured as seamless or welded fittings, depending on the specific application needs.
Equal Flow Distribution: The design of the Equal Cross ensures balanced flow distribution among all four openings. This allows for equal fluid flow in all directions, promoting efficient operation and optimal performance of the piping system.
Versatility in Piping Design: ASME B16.9 Carbon Steel Equal Cross fittings enable the connection of pipes of the same diameter, allowing for versatile piping system designs. They provide flexibility in routing and branching of pipelines, accommodating changes in direction or the addition of multiple branches.
Simplified Installation: The ASME B16.9 standard ensures dimensional accuracy and compatibility with other fittings, simplifying the installation process. The standardized design facilitates easy alignment and connection with the piping system, saving time and effort during installation.
Efficient Space Utilization: The ASME B16.9 Equal Cross fitting eliminates the need for additional fittings and complex configurations when branching or splitting flow in multiple directions. It helps optimize space utilization by providing a compact and streamlined solution.
Enhanced Structural Integrity: ASME B16.9 Carbon Steel Equal Cross fittings are manufactured from carbon steel, which offers excellent strength and durability. The robust construction ensures the structural integrity of the piping system, even under high-pressure or high-temperature conditions.
Applications of ASME B16.9 Carbon Steel Equal Cross:
Process Piping: ASME B16.9 Carbon Steel Equal Cross is widely employed in process piping systems for branching or intersecting pipelines. They allow for the distribution of fluids or gases in a balanced manner, ensuring uniform flow to multiple directions.
HVAC Systems: Heating, ventilation, and air conditioning (HVAC) systems often utilize Equal Crosses to create connections between different ducts or pipes. They enable the distribution of conditioned air or fluid to various areas or zones within a building.
Plumbing Systems: In plumbing applications, ASME B16.9 Carbon Steel Equal Cross is used to connect multiple pipes or plumbing fixtures together. They are commonly used in residential, commercial, and industrial plumbing systems to ensure proper flow distribution.
Water Treatment Plants: ASME B16.9 Carbon Steel Equal Cross is employed in water treatment plants to direct the flow of water for various treatment processes, such as filtration, disinfection, and chemical dosing. They provide efficient branching and distribution of water within the facility.
Oil and Gas Industry: ASME B16.9 Carbon Steel Equal Cross is utilized in oil and gas pipelines to control the flow and distribution of petroleum products, gas, and other fluids. They are commonly found in refineries, production facilities, and transmission pipelines.
Chemical Processing: ASME B16.9 Carbon Steel Equal Cross is crucial components in chemical processing plants. They help in directing fluids to different reactors, vessels, or processing units within the plant, facilitating efficient and controlled chemical reactions.
Power Generation Facilities: ASME B16.9 Carbon Steel Equal Cross is utilized in power plants for the distribution of steam, condensate, cooling water, and other fluids. They help in directing the flow to different equipment, such as turbines, heat exchangers, and condensers.
