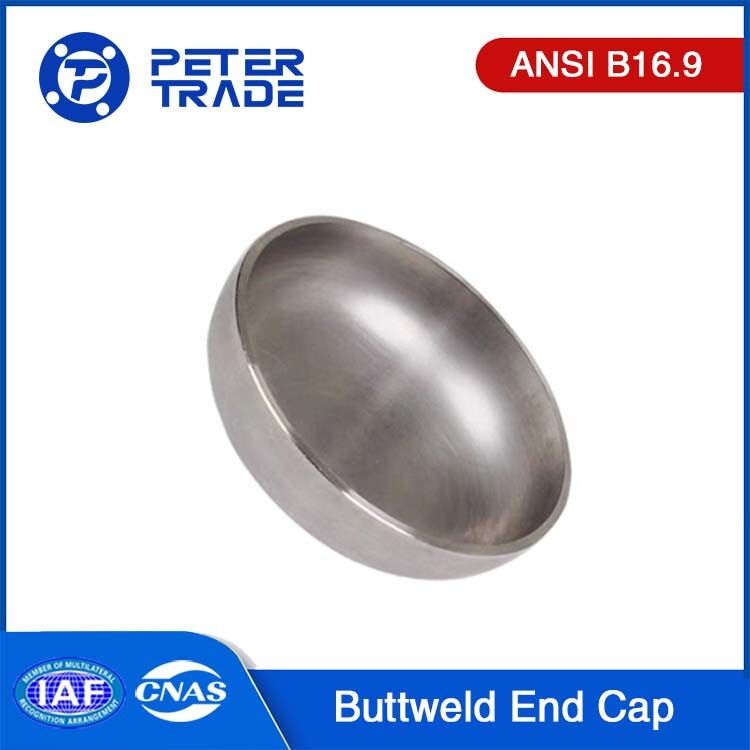

ASME B16.9 Stainless Steel Grooved End Pipe Fittings Buttweld End Cap ASTM A403 WP304 for Grooved Pipe Connections

ASME B16.9 Stainless Steel Grooved Pipe Fittings ASTM A403 WP304/304L WP316/316L Buttweld End Cap for Pipes and Tubes

Introduction:

Thank you for considering Shaanxi Peter International Trade Co., Ltd. We are pleased to present our comprehensive range of ASME B16.9 Buttweld End Caps for Industrial Piping Systems.

Our Buttweld End Caps are meticulously manufactured to meet the rigorous standards established by the ASME B16.9 Standard, guaranteeing their exceptional quality and reliability.

The Buttweld End Cap serves as an indispensable component in piping and plumbing systems, enabling the secure and leak-proof sealing of pipe ends. It is thoughtfully designed to ensure a robust connection, accommodating pipes with varying diameters. Our Buttweld End Caps are available in a variety of shapes, including hemispherical, oval, and round, catering to diverse piping requirements.

With a comprehensive size range spanning from 1/2'' to 48'' inches, our Buttweld End Caps are suitable for a wide spectrum of pipe sizes. This versatility empowers their utilization across numerous industries, including oil and gas, chemical, and water treatment.

To facilitate easy identification and traceability, our Buttweld End Caps are prominently marked with essential details such as our trademark, material grade, wall thickness, size, and heat number. This ensures that our esteemed customers can readily discern and track the origin and quality of our product.

ASME B16.9 Buttweld End Cap Dimensions:

Notes:

(1) All dimensions are in millimeter(mm).

(2)E: Length; E1: Limiting Wall Thickness for Length.
(3)Length E is applicable when the thickness exceeds the values specified in the "Limiting Wall Thickness for Length, E" column for NPS 24 and smaller. In the case of NPS 26 and larger, the determination of length E is subject to mutual agreement between the manufacturer and purchaser.

Features of ASME B16.9 Butt Weld End Cap for Piping Systems:

ASME B16.9 is a widely recognized standard for pipe fittings, and the Butt Weld End Cap is manufactured in accordance with this standard. Compliance ensures that the end cap meets the required specifications, dimensions, and quality standards.The Butt Weld End Cap is designed to seal the end of a pipe, providing a secure closure and preventing the flow of fluid or gas in that direction. It ensures a leak-proof connection, maintaining the integrity of the piping system. ASME B16.9 Butt Weld End Caps are available in various sizes, ranging from small diameters to larger ones, to accommodate a wide range of pipe sizes. This versatility allows for compatibility with different piping systems and applications. ASME B16.9 Butt Weld End Caps are designed for easy installation. They typically feature a butt-weld connection, allowing them to be welded directly to the end of the pipe, ensuring a secure and permanent attachment.

Grades of Stainless Steel ASTM A403 Butt Weld End Cap:

ASTM A403 is a specification that covers a wide range of stainless steel pipe fittings, including butt weld end caps. The specific grade of stainless steel used for ASTM A403 Butt Weld End Caps can vary depending on the application requirements.

Here are some commonly used grades of stainless steel for ASTM A403 Butt Weld End Caps:

Stainless Steel Grade 304: This is a widely used austenitic stainless steel grade known for its excellent corrosion resistance, good formability, and weldability. It is suitable for various general-purpose applications.

Stainless Steel Grade 316: Grade 316 is another popular austenitic stainless steel that offers enhanced corrosion resistance, particularly in environments with chloride exposure. It has excellent strength and high-temperature resistance.

Stainless Steel Grade 316L: Grade 316L is a low-carbon variation of grade 316, which provides improved weldability and further resistance to sensitization. It is commonly used in applications where welding is required.

Stainless Steel Grade 304L: Grade 304L is the low-carbon version of grade 304, offering better resistance to sensitization and weldability. It is commonly used in applications where corrosion resistance is required.

Stainless Steel Grade 321: Grade 321 is a stabilized stainless steel that contains titanium, which provides resistance to intergranular corrosion. It offers excellent high-temperature strength and is often used in applications involving elevated temperatures.

Stainless Steel Grade 347: Grade 347 is another stabilized stainless steel containing columbium (niobium) that offers improved intergranular corrosion resistance. It provides good high-temperature strength and is suitable for applications requiring resistance to carbide precipitation.

Applications of ASME B16.9 Butt Weld End Caps:

ASME B16.9 Butt Weld End Caps find applications in various industries and piping systems where a secure and leak-proof closure is required at the end of pipes. Here are some common applications:

Process piping systems: ASME B16.9 Butt weld end caps are widely used in process piping systems across industries such as oil and gas, chemical, pharmaceutical, and food processing. They provide a reliable closure for pipe ends, preventing leakage and ensuring the integrity of the system.

Power generation: ASME B16.9 Butt weld end caps are used in power plants, including fossil fuel-based and nuclear power plants. They are employed in piping systems for steam, water, and other fluids, helping to seal the pipe ends and maintain the efficiency and safety of the power generation process.

Petrochemical and refinery plants: In petrochemical and refinery plants, butt weld end caps are used in various applications, including pipelines for transporting gases, liquids, and chemicals. They help in closing off the ends of pipes and preventing leaks, maintaining the safety and productivity of the plant.

Water and wastewater treatment: ASME B16.9 Butt weld end caps are utilized in water treatment plants, wastewater treatment plants, and distribution systems. These end caps ensure the proper closure of pipes, preventing contamination, and maintaining the quality of water throughout the treatment and distribution process.

HVAC systems: Heating, ventilation, and air conditioning (HVAC) systems employ butt weld end caps to seal the ends of pipes carrying heated or cooled fluids. They help maintain the efficiency and effectiveness of HVAC systems by preventing leaks and ensuring proper flow.

Construction and infrastructure: ASME B16.9 Butt weld end caps are used in construction projects and infrastructure systems, including plumbing, drainage, and sewerage systems. They provide a secure closure for pipes, preventing the entry of debris, maintaining the structural integrity, and ensuring the smooth functioning of the systems.
