Product Details
Place of Origin: Xi'an, Shaanxi Province, China
Brand Name: PeterTrade(PT)
Model Number: ASME B16.9 Standard Reducing Tees
Payment & Shipping Terms
Minimum Order Quantity: 1-10 Pieces
Price: negotiable
Packaging Details: Wooden Case,plywood Case,pallet Etc.
Delivery Time: about 15-45 days, accordingly
Payment Terms: D/A, T/T, L/C,D/P
Supply Ability: 100-200 Ton/Tons Per Month
Product Standard: |
ASME B16.9 |
Product Type: |
Unequal Tees/Reducing Tees |
Wall Thickness: |
SCH5S-SCHXXS |
Material: |
Stainless Steel A403 WP 316 WP 304 |
Connection: |
Butt Weld |
Application: |
Petroleum, Chemical, Power, Gas, Metallurgy, Construction |
Product Standard: |
ASME B16.9 |
Product Type: |
Unequal Tees/Reducing Tees |
Wall Thickness: |
SCH5S-SCHXXS |
Material: |
Stainless Steel A403 WP 316 WP 304 |
Connection: |
Butt Weld |
Application: |
Petroleum, Chemical, Power, Gas, Metallurgy, Construction |

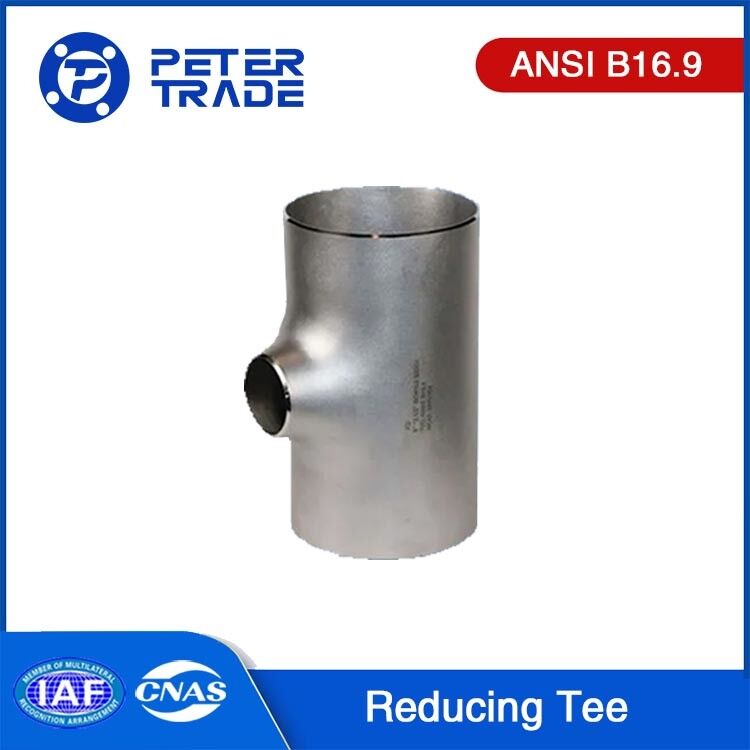

ASME B16.9 Stainless Steel ASTM A403 WP316 Reducing Tee Unequal Tee for Various Industries and Applications
Product Introduction:
ASME B16.9 Stainless Steel Reducing Tees are pipe fittings used to combine or divide fluids or gases flowing through pipes with different diameters. These tees have three openings, with two outlets that are of different sizes and branch off at a 90-degree angle from the mainline.
ASME B16.9 Stainless Steel Reducing Tees are designed to connect pipes with different diameters, allowing for a smooth transition in the flow of fluids or gases. The larger outlet of the tee is typically connected to the mainline, while the two smaller outlets are connected to the pipes of smaller diameter.
These fittings are commonly used in piping systems where there is a need to merge or split flows between different pipe sizes. They provide a convenient and efficient solution for accommodating variations in pipe diameters and maintaining the desired flow characteristics.
These Reducing Tees are manufactured in accordance with the B16.9 standard, which specifies the dimensions, materials, and other requirements for pipe fittings. This ensures that the tees meet industry standards and can be reliably used in various piping applications.
Features of ASME B16.9 Stainless Steel Reducing Tees:
Flexibility in Design: ASME B16.9 Stainless Steel Unequal Tees allow for the connection of three pipes of varying diameters at a 90-degree angle. This offers flexibility in system design, allowing for the branching or merging of flows between pipes with different sizes. It enables the creation of complex piping configurations to suit specific requirements.
Efficient Flow Distribution: ASME B16.9 Stainless Steel Unequal Tees provide efficient flow distribution by accommodating pipes of different diameters. They help to reduce pressure drop and turbulence in the system, ensuring smooth and uniform flow. This leads to improved system performance and reduced energy consumption.
Versatility in Application: ASME B16.9 Stainless Steel Unequal Tees can be used in a wide range of applications where the combination or division of fluids or gases is required. They find utility in industries such as oil and gas, petrochemical, water treatment, HVAC, and many others.
Easy Installation: ASME B16.9 Stainless Steel Unequal Tees are designed for easy installation and connection to pipes using standard methods such as welding, threading, or flanging. They are readily available in the market and can be integrated into piping systems with minimal effort.
High-Quality Standards: ASME B16.9 Stainless Steel Unequal Tees are manufactured in compliance with the B16.9 standard, ensuring dimensional accuracy, material quality, and overall performance. This guarantees that the tees meet industry standards and can be relied upon for their durability and long service life.
ASME B16.9 Stainless Steel Reducing Tees Dimensions:
| ASME B16.9 Reducing Tee Dimensions | ||||
| NPS | D(outer dimension) | D1(outer dimension) | C(Center-to-End) | M(Center-to-End) |
| 1/2 x 1/2 x 3/8 | 21.3 | 17.3 | 25 | 25 |
| 1/2 x 1/2 x 1/4 | 21.3 | 13.7 | 25 | 25 |
| 3/4 x 3/4 x 1/2 | 26.7 | 21.3 | 29 | 29 |
| 3/4 x 3/4 x 3/8 | 26.7 | 17.3 | 29 | 29 |
| 1 x 1 x 3/4 | 33.4 | 26.7 | 38 | 38 |
| 1 x 1 x 1/2 | 33.4 | 21.3 | 38 | 38 |
| 1-1/4 x 1-1/4 x 1 | 42.2 | 33.4 | 48 | 48 |
| 1-1/4 x 1-1/4 x 3/4 | 42.2 | 26.7 | 48 | 48 |
| 1-1/4 x 1-1/4 x 1/2 | 42.2 | 21.3 | 48 | 48 |
| 1-1/2 x 1-1/2 x 1-1/4 | 48.3 | 42.2 | 57 | 57 |
| 1-1/2 x 1-1/2 x 1 | 48.3 | 33.4 | 57 | 57 |
| 1-1/2 x 1-1/2 x 3/4 | 48.3 | 26.7 | 57 | 57 |
| 1-1/2 x 1-1/2 x 1/2 | 48.3 | 21.3 | 57 | 57 |
| 2 x 2 x 1-1/2 | 60.3 | 48.3 | 64 | 60 |
| 2 x 2 x 1-1/4 | 60.3 | 42.2 | 64 | 57 |
| 2 x 2 x 1 | 60.3 | 33.4 | 64 | 51 |
| 2 x 2 x 3/4 | 60.3 | 26.7 | 64 | 44 |
| 2-1/2 x 2-1/2 x 2 | 73 | 60.3 | 76 | 70 |
| 2-1/2 x 2-1/2 x 1-1/2 | 73 | 48.3 | 76 | 67 |
| 2-1/2 x 2-1/2 x 1-1/4 | 73 | 42.2 | 76 | 64 |
| 2-1/2 x 2-1/2 x 1 | 73 | 33.4 | 76 | 57 |
| 3 x 3 x 2-1/2 | 88.9 | 73 | 86 | 83 |
| 3 x 3 x 2 | 88.9 | 60.3 | 86 | 76 |
| 3 x 3 x 1-1/2 | 88.9 | 48.3 | 86 | 73 |
| 3 x 3 x 1-1/4 | 88.9 | 42.2 | 86 | 70 |
| 3-1/2 x 3-1/2 x 3 | 101.6 | 88.9 | 95 | 92 |
| 3-1/2 x 3-1/2 x 2-1/2 | 101.6 | 73 | 95 | 89 |
| 3-1/2 x 3-1/2 x 2 | 101.6 | 60.3 | 95 | 83 |
| 3-1/2 x 3-1/2 x 1-1/2 | 101.6 | 48.3 | 95 | 79 |
| 4 x 4 x 3-1/2 | 114.3 | 101.6 | 105 | 102 |
| 4 x 4 x 3 | 114.3 | 88.9 | 105 | 98 |
| 4 x 4 x 2-1/2 | 114.3 | 73 | 105 | 95 |
| 4 x 4 x 2 | 114.3 | 60.3 | 105 | 89 |
| 4 x 4 x 1-1/2 | 114.3 | 48.3 | 105 | 86 |
| 5 x 5 x 4 | 141.3 | 114.3 | 124 | 117 |
| 5 x 5 x 3-1/2 | 141.3 | 101.6 | 124 | 114 |
| 5 x 5 x 3 | 141.3 | 88.9 | 124 | 111 |
| 5 x 5 x 2-1/2 | 141.3 | 73 | 124 | 108 |
| 5 x 5 x 2 | 141.3 | 60.3 | 124 | 105 |
| 6 x 6 x 5 | 168.3 | 141.3 | 143 | 137 |
| 6 x 6 x 4 | 168.3 | 114.3 | 143 | 130 |
| 6 x 6 x 3-1/2 | 168.3 | 101.6 | 143 | 127 |
| 6 x 6 x 3 | 168.3 | 88.9 | 143 | 124 |
| 6 x 6 x 2-1/2 | 168.3 | 73 | 143 | 121 |
| 8 x 8 x 6 | 219.1 | 168.3 | 178 | 168 |
| 8 x 8 x 5 | 219.1 | 141.3 | 178 | 162 |
| 8 x 8 x 4 | 219.1 | 114.3 | 178 | 156 |
| 8 x 8 x 3-1/2 | 219.1 | 101.6 | 178 | 152 |
| 10 x 10 x 8 | 273 | 219.1 | 216 | 203 |
| 10 x 10 x 6 | 273 | 168.3 | 216 | 194 |
| 10 x 10 x 5 | 273 | 141.3 | 216 | 191 |
| 10 x 10 x 4 | 273 | 114.3 | 216 | 184 |
| 12 x 12 x 10 | 323.8 | 273 | 254 | 241 |
| 12 x 12 x 8 | 323.8 | 219.1 | 254 | 229 |
| 12 x 12 x 6 | 323.8 | 168.3 | 254 | 219 |
| 12 x 12 x 5 | 323.8 | 141.3 | 254 | 216 |
| 14 x 14 x 12 | 355.6 | 323.8 | 279 | 270 |
| 14 x 14 x 10 | 355.6 | 273 | 279 | 257 |
| 14 x 14 x 8 | 355.6 | 219.1 | 279 | 248 |
| 14 x 14 x 6 | 355.6 | 168.3 | 279 | 238 |
| 16 x 16 x 14 | 406.4 | 355.6 | 305 | 305 |
| 16 x 16 x 12 | 406.4 | 323.8 | 305 | 295 |
| 16 x 16 x 10 | 406.4 | 273 | 305 | 283 |
| 16 x 16 x 8 | 406.4 | 219.1 | 305 | 273 |
| 16 x 16 x 6 | 406.4 | 168.3 | 305 | 264 |
| 18 x 18 x 16 | 457 | 406.4 | 343 | 330 |
| 18 x 18 x 14 | 457 | 355.6 | 343 | 330 |
| 18 x 18 x 12 | 457 | 323.8 | 343 | 321 |
| 18 x 18 x 10 | 457 | 273 | 343 | 308 |
| 18 x 18 x 8 | 457 | 219.1 | 343 | 298 |
| 20 x 20 x 18 | 508 | 457 | 381 | 368 |
| 20 x 20 x 16 | 508 | 406.4 | 381 | 356 |
| 20 x 20 x 14 | 508 | 355.6 | 381 | 356 |
| 20 x 20 x 12 | 508 | 323.8 | 381 | 346 |
| 20 x 20 x 10 | 508 | 273 | 381 | 333 |
| 20 x 20 x 8 | 508 | 219.1 | 381 | 324 |
| 22 x 22 x 20 | 559 | 508 | 419 | 406 |
| 22 x 22 x 18 | 559 | 457 | 419 | 394 |
| 22 x 22 x 16 | 559 | 406.4 | 419 | 381 |
| 22 x 22 x 14 | 559 | 355.6 | 419 | 381 |
| 22 x 22 x 12 | 559 | 323.8 | 419 | 371 |
| 22 x 22 x 10 | 559 | 273 | 419 | 359 |
| 24 x 24 x 22 | 610 | 559 | 432 | 432 |
| 24 x 24 x 20 | 610 | 508 | 432 | 432 |
| 24 x 24 x 18 | 610 | 457 | 432 | 419 |
| 24 x 24 x 16 | 610 | 406.4 | 432 | 406 |
| 24 x 24 x 14 | 610 | 355.6 | 432 | 406 |
| 24 x 24 x 12 | 610 | 323.8 | 432 | 397 |
| 24 x 24 x 10 | 610 | 273 | 432 | 384 |
| 26 x 26 x 24 | 660 | 610 | 495 | 483 |
| 26 x 26 x 22 | 660 | 559 | 495 | 470 |
| 26 x 26 x 20 | 660 | 508 | 495 | 457 |
| 26 x 26 x 18 | 660 | 457 | 495 | 444 |
| 26 x 26 x 16 | 660 | 406.4 | 495 | 432 |
| 26 x 26 x 14 | 660 | 355.6 | 495 | 432 |
| 26 x 26 x 12 | 660 | 323.8 | 495 | 422 |
| 28 x 28 x 26 | 711 | 660 | 521 | 521 |
| 28 x 28 x 24 | 711 | 610 | 521 | 508 |
| 28 x 28 x 22 | 711 | 559 | 521 | 495 |
| 28 x 28 x 20 | 711 | 508 | 521 | 483 |
| 28 x 28 x 18 | 711 | 457 | 521 | 470 |
| 28 x 28 x 16 | 711 | 406.4 | 521 | 457 |
| 28 x 28 x 14 | 711 | 355.6 | 521 | 457 |
| 28 x 28 x 12 | 711 | 323.8 | 521 | 448 |
| 30 x 30 x 28 | 762 | 711 | 559 | 546 |
| 30 x 30 x 26 | 762 | 660 | 559 | 546 |
| 30 x 30 x 24 | 762 | 610 | 559 | 533 |
| 30 x 30 x 22 | 762 | 559 | 559 | 521 |
| 30 x 30 x 20 | 762 | 508 | 559 | 508 |
| 30 x 30 x 18 | 762 | 457 | 559 | 495 |
| 30 x 30 x 16 | 762 | 406.4 | 559 | 483 |
| 30 x 30 x 14 | 762 | 355.6 | 559 | 483 |
| 30 x 30 x 12 | 762 | 323.8 | 559 | 473 |
| 30 x 30 x 10 | 762 | 273 | 559 | 460 |
| 32 x 32 x 30 | 813 | 762 | 597 | 584 |
| 32 x 32 x 28 | 813 | 711 | 597 | 572 |
| 32 x 32 x 26 | 813 | 660 | 597 | 572 |
| 32 x 32 x 24 | 813 | 610 | 597 | 559 |
| 32 x 32 x 22 | 813 | 559 | 597 | 546 |
| 32 x 32 x 20 | 813 | 508 | 597 | 533 |
| 32 x 32 x 18 | 813 | 457 | 597 | 521 |
| 32 x 32 x 16 | 813 | 406.4 | 597 | 508 |
| 32 x 32 x 14 | 813 | 355.6 | 597 | 508 |
| 34 x 34 x 32 | 864 | 813 | 635 | 622 |
| 34 x 34 x 30 | 864 | 762 | 635 | 610 |
| 34 x 34 x 28 | 864 | 711 | 635 | 597 |
| 34 x 34 x 26 | 864 | 660 | 635 | 597 |
| 34 x 34 x 24 | 864 | 610 | 635 | 584 |
| 34 x 34 x 22 | 864 | 559 | 635 | 572 |
| 34 x 34 x 20 | 864 | 508 | 635 | 559 |
| 34 x 34 x 18 | 864 | 457 | 635 | 546 |
| 34 x 34 x 16 | 864 | 406.4 | 635 | 533 |
| 36 x 36 x 34 | 914 | 864 | 673 | 660 |
| 36 x 36 x 32 | 914 | 813 | 673 | 648 |
| 36 x 36 x 30 | 914 | 762 | 673 | 635 |
| 36 x 36 x 28 | 914 | 711 | 673 | 622 |
| 36 x 36 x 26 | 914 | 660 | 673 | 622 |
| 36 x 36 x 24 | 914 | 610 | 673 | 610 |
| 36 x 36 x 22 | 914 | 559 | 673 | 597 |
| 36 x 36 x 20 | 914 | 508 | 673 | 584 |
| 36 x 36 x 18 | 914 | 457 | 673 | 572 |
| 36 x 36 x 16 | 914 | 406.4 | 673 | 559 |
| 38 x 38 x 36 | 965 | 914 | 711 | 711 |
| 38 x 38 x 34 | 965 | 864 | 711 | 698 |
| 38 x 38 x 32 | 965 | 813 | 711 | 686 |
| 38 x 38 x 30 | 965 | 762 | 711 | 673 |
| 38 x 38 x 28 | 965 | 711 | 711 | 648 |
| 38 x 38 x 26 | 965 | 660 | 711 | 648 |
| 38 x 38 x 24 | 965 | 610 | 711 | 635 |
| 38 x 38 x 22 | 965 | 559 | 711 | 622 |
| 38 x 38 x 20 | 965 | 508 | 711 | 610 |
| 38 x 38 x 18 | 965 | 457 | 711 | 597 |
| 40 x 40 x 38 | 1016 | 965 | 749 | 749 |
| 40 x 40 x 36 | 1016 | 914 | 749 | 737 |
| 40 x 40 x 34 | 1016 | 864 | 749 | 724 |
| 40 x 40 x 32 | 1016 | 813 | 749 | 711 |
| 40 x 40 x 30 | 1016 | 762 | 749 | 698 |
| 40 x 40 x 28 | 1016 | 711 | 749 | 673 |
| 40 x 40 x 26 | 1016 | 660 | 749 | 673 |
| 40 x 40 x 24 | 1016 | 610 | 749 | 660 |
| 40 x 40 x 22 | 1016 | 559 | 749 | 648 |
| 40 x 40 x 20 | 1016 | 508 | 749 | 635 |
| 40 x 40 x 18 | 1016 | 457 | 749 | 622 |
| 42 x 42 x 40 | 1067 | 1016 | 762 | 711 |
| 42 x 42 x 38 | 1067 | 965 | 762 | 711 |
| 42 x 42 x 36 | 1067 | 914 | 762 | 711 |
| 42 x 42 x 34 | 1067 | 864 | 762 | 711 |
| 42 x 42 x 32 | 1067 | 813 | 762 | 711 |
| 42 x 42 x 30 | 1067 | 762 | 762 | 711 |
| 42 x 42 x 28 | 1067 | 711 | 762 | 698 |
| 42 x 42 x 26 | 1067 | 660 | 762 | 698 |
| 42 x 42 x 24 | 1067 | 610 | 762 | 660 |
| 42 x 42 x 22 | 1067 | 559 | 762 | 660 |
| 42 x 42 x 20 | 1067 | 508 | 762 | 660 |
| 42 x 42 x 18 | 1067 | 457 | 762 | 648 |
| 42 x 42 x 16 | 1067 | 406.4 | 762 | 635 |
| 44 x 44 x 42 | 1118 | 1067 | 813 | 762 |
| 44 x 44 x 40 | 1118 | 1016 | 813 | 749 |
| 44 x 44 x 38 | 1118 | 965 | 813 | 737 |
| 44 x 44 x 36 | 1118 | 914 | 813 | 724 |
| 44 x 44 x 34 | 1118 | 864 | 813 | 724 |
| 44 x 44 x 32 | 1118 | 813 | 813 | 711 |
| 44 x 44 x 30 | 1118 | 762 | 813 | 711 |
| 44 x 44 x 28 | 1118 | 711 | 813 | 698 |
| 44 x 44 x 26 | 1118 | 660 | 813 | 698 |
| 44 x 44 x 24 | 1118 | 610 | 813 | 698 |
| 44 x 44 x 22 | 1118 | 559 | 813 | 686 |
| 44 x 44 x 20 | 1118 | 508 | 813 | 686 |
| 46 x 46 x 44 | 1168 | 1118 | 851 | 800 |
| 46 x 46 x 42 | 1168 | 1067 | 851 | 787 |
| 46 x 46 x 40 | 1168 | 1016 | 851 | 775 |
| 46 x 46 x 38 | 1168 | 965 | 851 | 762 |
| 46 x 46 x 36 | 1168 | 914 | 851 | 762 |
| 46 x 46 x 34 | 1168 | 864 | 851 | 749 |
| 46 x 46 x 32 | 1168 | 813 | 851 | 749 |
| 46 x 46 x 30 | 1168 | 762 | 851 | 737 |
| 46 x 46 x 28 | 1168 | 711 | 851 | 737 |
| 46 x 46 x 26 | 1168 | 660 | 851 | 737 |
| 46 x 46 x 24 | 1168 | 610 | 851 | 724 |
| 46 x 46 x 22 | 1168 | 559 | 851 | 724 |
| 48 x 48 x 46 | 1219 | 1168 | 889 | 838 |
| 48 x 48 x 44 | 1219 | 1118 | 889 | 838 |
| 48 x 48 x 42 | 1219 | 1067 | 889 | 813 |
| 48 x 48 x 40 | 1219 | 1016 | 889 | 813 |
| 48 x 48 x 38 | 1219 | 965 | 889 | 813 |
| 48 x 48 x 36 | 1219 | 914 | 889 | 787 |
| 48 x 48 x 34 | 1219 | 864 | 889 | 787 |
| 48 x 48 x 32 | 1219 | 813 | 889 | 787 |
| 48 x 48 x 30 | 1219 | 762 | 889 | 762 |
| 48 x 48 x 28 | 1219 | 711 | 889 | 762 |
| 48 x 48 x 26 | 1219 | 660 | 889 | 762 |
| 48 x 48 x 24 | 1219 | 610 | 889 | 737 |
| 48 x 48 x 22 | 1219 | 559 | 889 | 737 |
Description of ASTM A403 WP 304 and WP 316 Stainless Steel Reducing Tees:
ASTM A403 Stainless Steel Pipe Fittings is a specification that covers the material requirements for forged and rolled austenitic stainless steel fittings used in pressure piping applications. The most commonly used grades for these fittings are WP304/L and WP316/L.
The fittings covered by ASTM A403 are designed for use in various industries, including the engineering industry and energy conversion plants. They are widely used in piping systems where corrosion resistance, durability, and high-quality performance are required.
These stainless steel pipe fittings are available in different types, such as elbows, tees, reducers, caps, stub ends, and more. They are used for connecting, branching, or changing the direction of fluid or gas flow in the piping system.
The ASTM A403 standard ensures that the stainless steel pipe fittings meet specific requirements for chemical composition, mechanical properties, dimensions, and other performance characteristics. By conforming to this standard, manufacturers can produce fittings that meet the necessary quality and performance standards for pressure piping applications.
The scope of ASTM A403 standard covers several grades of austenitic stainless steel alloys for use in pressure piping applications. These alloys are used in the production of pipe fittings, including elbows, tees, reducers, caps, and other types of fittings.
The standard specifies that the grade of steel should be marked with either the WP or CR prefix, depending on the applicable ASTM or MSS size and rated pressure standards. The WP prefix is used for fittings that comply with ASTM size standards, while the CR prefix is used for fittings that conform to MSS (Manufacturers Standardization Society) size standards.
Applications of ASME B16.9 Stainless Steel Reducing Tees:
Size Transition: ASME B16.9 Stainless Steel Reducing Tees allow for a smooth transition between pipes of different diameters. They provide a convenient and efficient solution for connecting pipes with varying sizes, ensuring proper flow and minimizing pressure drop.
Branching or Diverting Flow: ASME B16.9 Stainless Steel Reducing Tees enable the branching or diverting of flow in a piping system. They allow for the distribution of fluids or gases to multiple lines or equipment, accommodating different flow requirements.
System Design Flexibility: By using ASME B16.9 Stainless Steel Reducing Tees, designers have more flexibility in designing piping systems. They can easily accommodate changes in pipe size or adapt to specific space constraints, optimizing the layout and functionality of the system.
