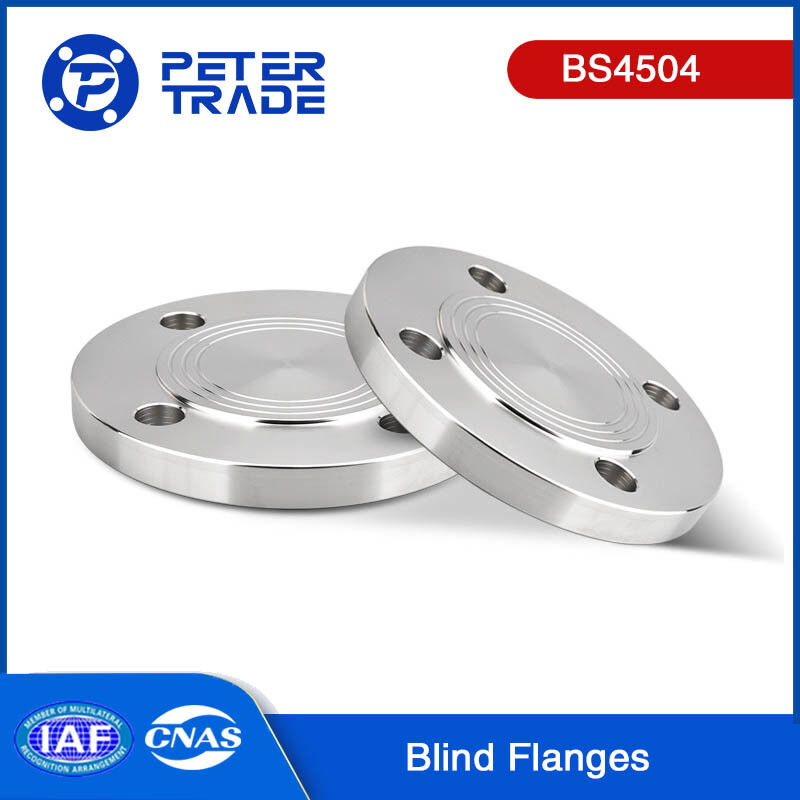

BS4504 A105 A182 F304/304L F316/316L Carbon Steel/Stainless Steel Blind Flanges PN16 BLRF for Industrial Applications

BS4504 CODE 105 Carbon Steel Blind Flanges PN16 BLRF for Industrial Applications

Introduction:

Thank you for considering Shaanxi Peter International Trade Co., Ltd. We are delighted to offer you our comprehensive range of BS4504 Carbon Steel Blind Flanges.

Our BS4504 Carbon Steel Blind Flanges are manufactured to meet the stringent standards set by EN1092-01, ensuring their quality and reliability. These flanges are specifically designed to close off the end of a piping system, providing a solid and leak-proof seal.

By using our BS4504 Carbon Steel Blind Flanges, you can effectively close off the end of your piping system, preventing any unwanted flow or leakage. Our BS4504 Carbon Steel Blind Flanges are suitable for various applications and industries where a solid seal is required.

Description of BS4504 Carbon Steel Blind Flanges:

Blind flanges, also known as BL, are commonly used in various industries that involve piping systems. They come in different face types (RTJ, Raised, and Flat Face) and pressure ranges. While placing a blind flange between two flanges to impede flow is generally not recommended, a spectacle blind can be used to temporarily block flow in a pipe. In the event that a valve is accidentally opened, a blind flange is installed at the end to prevent process fluid from escaping.

BS4504 Carbon Steel Blind Flange is a circular plate with blowholes located around the center hole. Its main purpose is to seal off the ends of pipe systems or pressure vessel openings. By using a carbon steel blind flange, access to the interior of a pipe or vessel can be easily achieved after it has been shut and needs to be reopened.

The use of BS4504 carbon steel blind flanges is essential for maintenance and repairs on pipelines. Without them, stopping the flow at the nearest valve, which could be located miles away from the repair site, would be challenging. Valves are expensive and prone to sticking, making blind flanges a more affordable option for sealing pipes. Industries such as petrochemical, pipe engineering, public services, and water treatment frequently utilize blind flanges.

BS4504 Carbon steel blind flanges are solid components used to seal off the end of a pipe system or valve. They are commonly used in applications where closing off the line is necessary. These flanges are designed without a bore, making them suitable for terminating a piping system securely.

BS4504 Carbon steel blind flanges are well-suited for high-pressure or high-temperature applications due to the strength and durability of the carbon steel material. They are available in various sizes and pressure ratings to accommodate different piping system requirements. These flanges are often used in combination with valves and fittings to provide a secure and sealed endpoint for the piping system.

Compared to other types of flanges, BS4504 carbon steel blind flanges have a relatively simple construction, requiring less mechanical machining. They are typically heavier due to the absence of a bore. While these flanges are usually supplied as blanks to accommodate slip-on flanges and weld neck flanges, custom machining options are also available. Common modifications include center machining for NPT threads and custom bore sizes to allow their use as slip-on flanges without a hub.

BS4504 carbon steel blind flanges, when combined with the appropriate gasket, provide a secure sealing solution for terminating or temporarily sealing a piping system. Their bolted design allows for convenient access during upkeep, inspection, or future expansion, while the gasket ensures a tight seal by filling the gap between the flange faces, effectively preventing leaks.

BS4504 Code 105 Blind Flange Dimensions:

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.

Why we choose Blind Flanges in the industrial applications :

Blind flanges offer numerous advantages when used in piping systems. There are several reasons why blind flanges are often chosen for specific applications:

Leakage and Contamination Protection: One of the key benefits of blind flanges is their ability to effectively seal off the ends of pipes, valves, vessels, or tanks, preventing any potential leaks or contamination of the surrounding environment. This ensures the integrity and safety of the system.

Versatility in Applications: Blind flanges find utility across a wide range of applications and industries. Whether it's in petrochemical plants, water treatment facilities, oil refineries, or public service infrastructure, blind flanges can be utilized to seal off pipe extremities in various systems.

Easy and Quick Installation: Blind flanges are relatively simple to install, requiring minimal tools and expertise. Their round plate design with pre-drilled blowholes makes the installation process quick and efficient. This helps to save time and manpower during piping system assembly or maintenance.

Durability and Longevity: Blind flanges are constructed from robust materials such as stainless steel or carbon steel, providing excellent durability and longevity. They can withstand high-pressure conditions and harsh environmental factors, ensuring long-lasting performance without compromising the structural integrity of the system.

Blind flanges offer reliable sealing capabilities, versatility, ease of installation, and durability, making them an essential component in various piping systems. Their use contributes to maintaining system integrity, preventing leaks, and facilitating efficient maintenance and repairs.

Alternative Materials of BS4504 Carbon Steel Blind Flanges:

Some Common Grades of Carbon Steel Blind Flanges:

ASTM A105: This is a common grade of carbon steel used for blind flanges. It is a forged carbon steel specifically designed for high-temperature service and offers excellent weldability and toughness.

ASTM A350 LF2: LF2 is a low-temperature carbon steel grade commonly used for blind flanges in applications where low-temperature toughness is required.

ASTM A694 F52/F60/F65/F70: These grades are high-yield carbon steel materials used for blind flanges in applications requiring high strength and impact resistance.

Some Common Grades of Stainless Steel Blind Flanges:

ASTM A182 F304/F304L: These grades of stainless steel are austenitic and commonly used for blind flanges. They offer good corrosion resistance, excellent weldability, and are suitable for a wide range of applications.

ASTM A182 F316/F316L: Similar to F304/F304L, these grades are also austenitic stainless steels with improved corrosion resistance, particularly in chloride environments.

ASTM A182 F321: F321 is an austenitic stainless steel grade containing titanium, which provides enhanced resistance to intergranular corrosion. It is often used for blind flanges in high-temperature applications.

ASTM A182 F347: F347 is a stabilized stainless steel grade with the addition of niobium, which improves its resistance to intergranular corrosion. It is commonly used for weld neck flanges in applications involving elevated temperatures.

When dealing with corrosive or high-temperature fluids, carbon steel blind flanges may not provide sufficient resistance or durability. In such cases, alternative materials can be considered. Here are some other common alternatives to carbon steel blind flanges for corrosive or high-temperature fluids:

Alloy Steel: Alloy steel blind flanges are specifically designed to withstand high-temperature and high-pressure conditions. They are made from steel that has been alloyed with additional elements such as chromium, molybdenum, or nickel to enhance their mechanical properties and corrosion resistance. Alloy steel blind flanges are commonly used in power generation, oil and gas, and petrochemical industries.

Duplex and Super Duplex Stainless Steel: Duplex and super duplex stainless steel blind flanges offer exceptional corrosion resistance and high strength. These materials have a mixed microstructure of austenite and ferrite, providing improved resistance to pitting, crevice corrosion, and stress corrosion cracking. Duplex and super duplex blind flanges are commonly used in offshore and marine applications, as well as in chemical and petrochemical industries.

Hastelloy: Hastelloy is a family of nickel-based alloys known for their excellent resistance to a wide range of corrosive environments, including acids, alkaline solutions, and seawater. Hastelloy blind flanges are commonly used in chemical processing, pharmaceutical, and oil and gas industries, where resistance to corrosion and high temperatures is critical.

Inconel: Inconel is a nickel-chromium-based alloy known for its excellent resistance to high temperatures and oxidation. Inconel blind flanges are often used in applications involving extreme temperatures, such as aerospace, gas turbines, and chemical processing industries.

Applications of BS4504 Carbon Steel Blind Flanges:

BS4504 Carbon Steel Blind Flanges have various applications across different industries and piping systems. Some common applications of these blind flanges include:

Oil and Gas Industry: Carbon steel blind flanges are widely used in the oil and gas industry for both upstream and downstream applications. They are employed in pipelines, refineries, offshore platforms, and petrochemical plants to cap off or terminate pipelines, valves, or equipment.

Power Generation: Carbon steel blind flanges are utilized in power plants, including thermal power plants and nuclear power plants. They are used to seal off pipes, valves, and equipment in steam, water, or gas systems.

Chemical Processing: Carbon steel blind flanges find applications in chemical processing plants, where they are used to close off pipelines that transport corrosive or hazardous chemicals. They provide a secure and leak-proof seal, ensuring the safety and integrity of the process.

Water and Wastewater Treatment: Carbon Steel blind flanges are employed in water treatment plants, sewage treatment plants, and desalination facilities. They are used to cap off or terminate pipes and equipment for water distribution, filtration, and treatment processes.

HVAC Systems: Carbon Steel blind flanges are utilized in heating, ventilation, and air conditioning (HVAC) systems. They provide closure points for pipes, ductwork, and equipment, ensuring proper airflow and system functionality.

Industrial Process Piping: Carbon steel blind flanges are commonly used in various industrial process piping systems, including manufacturing plants, pulp and paper mills, food processing facilities, and pharmaceutical plants. They are used to terminate or close off pipelines, tanks, and vessels.

Construction and Infrastructure: Carbon steel blind flanges can be found in construction projects and infrastructure development, such as building plumbing systems, water supply networks, and sewage systems. They are used as closure points during construction or as temporary seals during maintenance or repair work.

Shipbuilding and Marine Applications: Carbon steel blind flanges are employed in shipbuilding and marine industries for sealing off pipes, tanks, and equipment in various maritime applications, including offshore platforms, ships, and submarines.

BS4504 carbon steel blind flanges are versatile components that play a crucial role in creating secure terminations, facilitating maintenance, and ensuring the integrity of piping systems across a wide range of industrial applications.
