BS4504 CODE 105 Carbon Steel/ Stainless Steel Pipe Flange Fittings Pipe Cs Blind Flange PN6 For Petrochemical Plants

BS4504 CODE 105 Carbon Steel Blind Flanges PN6 BLRF for Industrial Applications

Introduction:

With a solid track record spanning over two decades, Shaanxi Peter International Trade Co., Ltd. has built a strong reputation as a leading supplier in the market. Our expertise lies in providing BS4504 Carbon Steel Blind Flanges to meet the diverse needs of our customers.

Recognizing the significance of delivering high-quality products, we go above and beyond to ensure meticulous material selection and strict adherence to quality control processes at every stage of manufacturing and inspection. Our blind flanges, crafted with precision, fully comply with BS4504 standards, guaranteeing reliability and durability across various industrial applications.

We cater to a wide range of industries, including shipbuilding, power generation, petrochemical plants, oil refineries, wastewater treatment plants, paper mills, pharmaceutical plants, and turnkey projects.

Description of BS4504 Carbon Steel Blind Flanges:

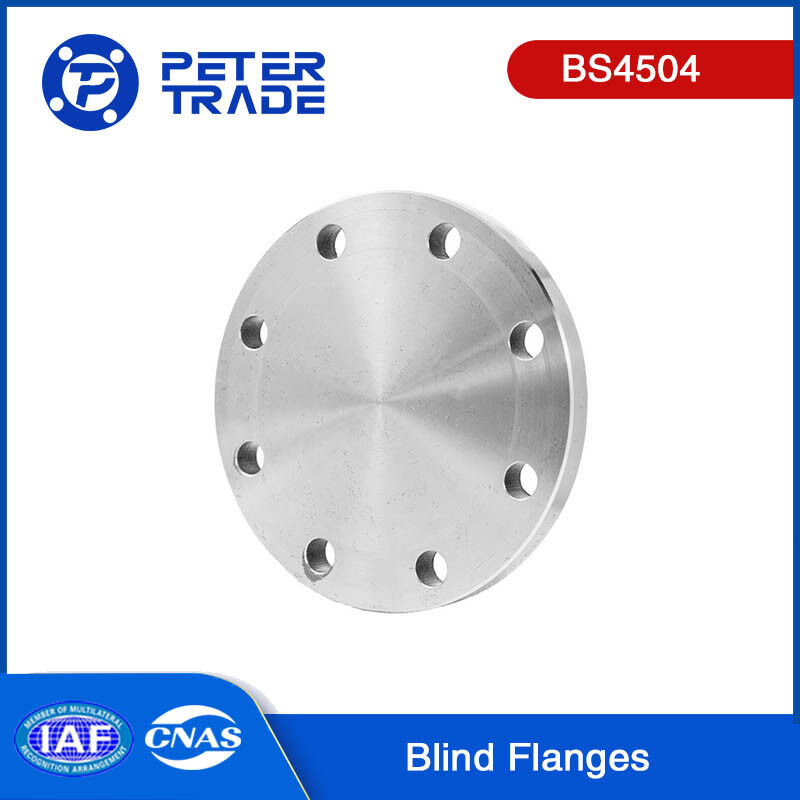

BS4504 Carbon Steel Blind Flanges, available in Raised Face (RF) and Flat Face (FF) styles, are flanges without a central bore or opening. Unlike other flange types that facilitate fluid or gas flow, BS4504 carbon steel blind flanges are specifically utilized to seal the end of a piping system and prevent flow. They serve various purposes, including pressure testing, creating access points, temporary sealing during modifications or repairs, or permanently terminating a piping system.

In contrast to welded flanges, BS4504 carbon steel blind flanges are bolted in place. This bolted connection allows for easier access during maintenance, inspections, or accommodating future expansion needs. To ensure a reliable seal, BS4504 carbon steel blind flanges are paired with a gasket. The gasket fills the space between the flange faces, effectively preventing leaks of liquids or gases. The choice of gasket material is crucial and should consider factors such as temperature, pressure, chemical compatibility, and the type of fluid involved.

In summary, BS4504 carbon steel blind flanges, when combined with the appropriate gasket, provide a secure sealing solution for terminating or temporarily sealing a piping system. Their bolted design allows for convenient access during upkeep, inspection, or future expansion, while the gasket ensures a tight seal by filling the gap between the flange faces, effectively preventing leaks.

BS4504 Code 105 Blind Flange Dimensions:

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.

Advantages of BS4504 Carbon Steel Blind Flanges:

BS4504 Carbon Steel Blind Flanges offer several advantages in piping systems:

Strength and Durability: Carbon steel is known for its high strength and durability, making BS4504 blind flanges capable of withstanding high-pressure and high-temperature applications. They provide a reliable and robust sealing solution in demanding environments.

Versatility: BS4504 carbon steel blind flanges are available in various sizes and pressure ratings, offering versatility to accommodate different pipe diameters and system requirements. They can be selected according to specific application needs, ensuring a proper fit and performance.

Easy Installation and Removal: BS4504 carbon steel blind flanges are relatively simple to install and remove. They do not require complex assembly or disassembly procedures, facilitating efficient maintenance, repairs, or temporary closures of the pipeline.

Cost-Effective Solution: BS4504 carbon steel blind flanges provide a cost-effective solution for sealing off the ends of pipes or valves. Their straightforward construction and ease of installation contribute to lower labor and installation costs. Additionally, their durability reduces the need for frequent replacements, resulting in long-term cost savings.

Customization Options: BS4504 carbon steel blind flanges can be customized through machining processes to meet specific requirements. This includes center machining for NPT threads or custom bore sizes, allowing for flexibility in adapting to unique system needs.

Safety: The reliable sealing capability of BS4504 carbon steel blind flanges enhances the safety of the piping system. They help prevent leaks, spills, and potential hazards associated with fluid or gas flow, contributing to a safer working environment.

Alternative Materials of Carbon Steel Blind Flanges:

When dealing with corrosive or high-temperature fluids, carbon steel blind flanges may not provide sufficient resistance or durability. In such cases, alternative materials can be considered. Here are some common alternatives to carbon steel blind flanges for corrosive or high-temperature fluids:

Stainless Steel: Stainless steel blind flanges offer excellent corrosion resistance, making them suitable for various corrosive environments. Different grades of stainless steel are available, such as 304, 316, and 316L, with varying levels of corrosion resistance and temperature tolerance. Stainless steel blind flanges are commonly used in industries such as chemical processing, pharmaceuticals, and food processing.

Alloy Steel: Alloy steel blind flanges are specifically designed to withstand high-temperature and high-pressure conditions. They are made from steel that has been alloyed with additional elements such as chromium, molybdenum, or nickel to enhance their mechanical properties and corrosion resistance. Alloy steel blind flanges are commonly used in power generation, oil and gas, and petrochemical industries.

Duplex and Super Duplex Stainless Steel: Duplex and super duplex stainless steel blind flanges offer exceptional corrosion resistance and high strength. These materials have a mixed microstructure of austenite and ferrite, providing improved resistance to pitting, crevice corrosion, and stress corrosion cracking. Duplex and super duplex blind flanges are commonly used in offshore and marine applications, as well as in chemical and petrochemical industries.

Hastelloy: Hastelloy is a family of nickel-based alloys known for their excellent resistance to a wide range of corrosive environments, including acids, alkaline solutions, and seawater. Hastelloy blind flanges are commonly used in chemical processing, pharmaceutical, and oil and gas industries, where resistance to corrosion and high temperatures is critical.

Inconel: Inconel is a nickel-chromium-based alloy known for its excellent resistance to high temperatures and oxidation. Inconel blind flanges are often used in applications involving extreme temperatures, such as aerospace, gas turbines, and chemical processing industries.

Applications of BS4504 Carbon Steel Blind Flanges:

BS4504 Carbon Steel Blind Flanges have various applications across different industries and piping systems. Some common applications of these blind flanges include:

Oil and Gas Industry: Carbon steel blind flanges are widely used in the oil and gas industry for both upstream and downstream applications. They are employed in pipelines, refineries, offshore platforms, and petrochemical plants to cap off or terminate pipelines, valves, or equipment.

Power Generation: Carbon steel blind flanges are utilized in power plants, including thermal power plants and nuclear power plants. They are used to seal off pipes, valves, and equipment in steam, water, or gas systems.

Chemical Processing: Carbon steel blind flanges find applications in chemical processing plants, where they are used to close off pipelines that transport corrosive or hazardous chemicals. They provide a secure and leak-proof seal, ensuring the safety and integrity of the process.

Water and Wastewater Treatment: Carbon Steel blind flanges are employed in water treatment plants, sewage treatment plants, and desalination facilities. They are used to cap off or terminate pipes and equipment for water distribution, filtration, and treatment processes.

HVAC Systems: Carbon Steel blind flanges are utilized in heating, ventilation, and air conditioning (HVAC) systems. They provide closure points for pipes, ductwork, and equipment, ensuring proper airflow and system functionality.

Industrial Process Piping: Carbon steel blind flanges are commonly used in various industrial process piping systems, including manufacturing plants, pulp and paper mills, food processing facilities, and pharmaceutical plants. They are used to terminate or close off pipelines, tanks, and vessels.

Construction and Infrastructure: Carbon steel blind flanges can be found in construction projects and infrastructure development, such as building plumbing systems, water supply networks, and sewage systems. They are used as closure points during construction or as temporary seals during maintenance or repair work.

Shipbuilding and Marine Applications: Carbon steel blind flanges are employed in shipbuilding and marine industries for sealing off pipes, tanks, and equipment in various maritime applications, including offshore platforms, ships, and submarines.

BS4504 carbon steel blind flanges are versatile components that play a crucial role in creating secure terminations, facilitating maintenance, and ensuring the integrity of piping systems across a wide range of industrial applications.
