DIN 2543 PN16 Stainless Steel Pipe Flanges Fittings Carbon Steel Slip On Flanges RF For Petrochemical Pipe Engineering

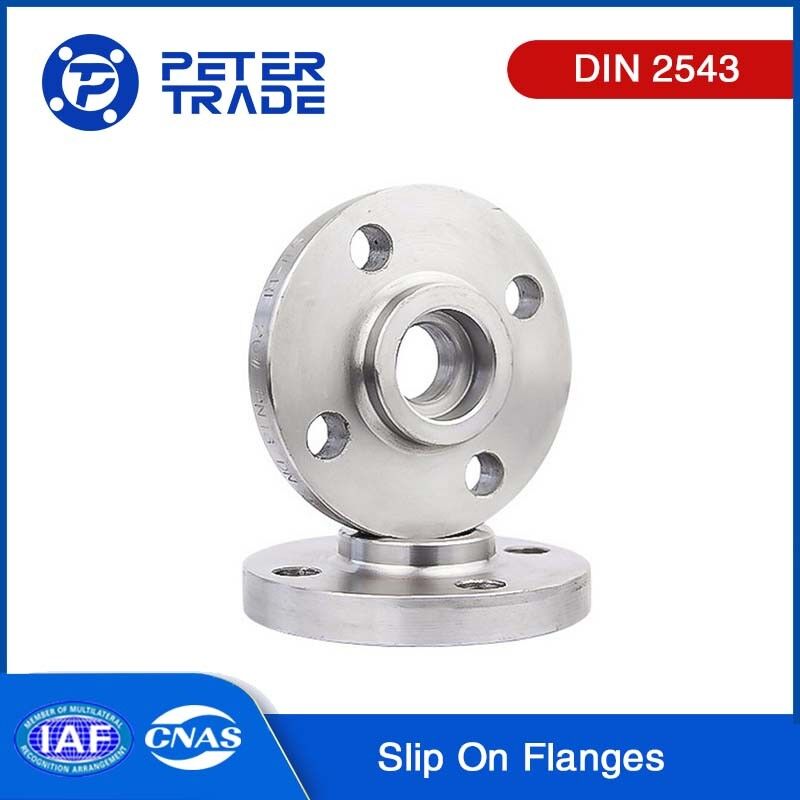

DIN 2543 PN16 Carbon Steel and Stainless Steel Slip On Flanges(SORF) Raised Face

Introduction:

With a proven track record spanning more than twenty years, Shaanxi Peter International Trade Co., Ltd. has established a strong reputation as a leading supplier in the industry. Our specialization lies in supplying DIN 2543 Carbon Steel and Stainless Steel Slip On Flanges to meet the diverse requirements of our clients.

Understanding the importance of delivering high-quality products, we surpass expectations by ensuring meticulous material selection and strict adherence to quality control procedures at every stage of manufacturing and inspection. Our precision-crafted slip on flanges fully adhere to DIN standards, assuring reliability and durability across a wide spectrum of industrial applications.

We serve a broad array of industries, including shipbuilding, power generation, petrochemical plants, oil refineries, wastewater treatment plants, paper mills, pharmaceutical plants, and turnkey projects.

Description of DIN 2543 Slip On Flanges:

The DIN 2543 slip on flange is a type of flange that is attached to a container or pipe using a fillet weld, providing versatility as a flange option. Depending on the connection integrity between the flange ring and the straight cylinder section, it can be designed as an integral or loose flange. DIN 2543 slip on flanges offer various advantages, including space and weight savings, leak-free joints, and excellent sealing performance.

When establishing a new pipe system or replacing an existing one, carbon steel and stainless steel slip on flanges can be utilized to create a seal between two pipes. These fittings are particularly suitable for low-pressure applications as they require less attention and are easier to install compared to weld neck flanges.

DIN 2543 slip on flanges are available in various sizes and styles, commonly crafted from carbon steel, stainless steel, or alloy steel. They may come with a raised face or flat face, providing flexibility in selection based on specific requirements.

The size of the flange is determined by the diameter of the pipe it is meant to connect. If you are unsure about the dimensions, it is recommended to consult a professional to ensure a proper fit. DIN 2543 slip on flanges are designed to accommodate a wide range of pipe sizes.

These fittings are versatile and can be used to link two sections of pipes made of different materials or to connect two sections of the same pipe. Their ease of installation and compatibility with various pipe materials make them a practical choice for piping systems.

DIN 2543 Slip On Flange Dimensions:

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.

Features of Carbon Steel and Stainless Steel Slip On Flanges:

The American Standard carbon steel and stainless steel slip on flanges has several features and advantages:

Easy installation: The design of the slip on flange makes it easy to install and dismantle, making it suitable for situations that require frequent maintenance.

Low cost: Compared to other types of flanges, the slip on flange's cost is relatively low, making it an affordable choice.

Wide applicability: The American Standard Slip on Flange is suitable for many different piping systems, including those operating at low pressure and normal temperature conditions.

High reliability: With strict design and manufacturing standards, the American Standard Slip on Flange exhibits good sealing and connection reliability when in use.

High standardization: The slip on flange conforms to ANSI standards, ensuring a high degree of standardization and allowing for perfect matching with other piping and fittings that conform to the same standard.

Advantages of Carbon Steel and Stainless Steel Slip On Flanges:

The primary advantage of using a carbon steel  or stainless steel slip on flange is the cost savings associated with welding. Instead of welding a weld neck flange, a slip on flange can be easily inserted onto the end of a pipe, and a fillet weld can be performed. This eliminates the need for additional welding expenses. Furthermore, slip-on flanges have a slightly larger bore than the connecting pipe, reducing the need for extensive longitudinal space.

Another advantages of carbon steel and stainless steel slip on flanges is their ease of alignment. They require less precision in cutting the pipe to length, making the installation process more straightforward. Additionally, slip-on flanges are generally less expensive than weld neck flanges, making them a preferred choice for some contractors. These flanges can also serve as replacements for weld neck flanges.

Precise sizing of the flange is crucial to ensure proper installation and prevent leaks. It is important to measure the flange's inside and outside diameters accurately to determine the appropriate size for your specific pipe and application.

Carbon Steel and stainless steel slip on flanges offer enhanced durability and resistance to rust. Some flanges are equipped with raised faces to improve pressure-holding capabilities.

Carbon Steel and Stainless Steel Slip on flanges are widely used in various applications, including fluid pipelines, high-pressure systems, and low-pressure water lines. They are generally more cost-effective than weld neck flanges and can be manufactured through forging, casting, or welding processes. Different styles of slip on flanges, such as flat-faced, raised-face, and orifice designs, are available to accommodate specific requirements.

Disadvantges of Carbon Steel and Stainless Steel Slip On Flanges:

The main drawback of carbon steel and stainless steel slip on flanges is their inability to ensure completely leak-free joints. This limitation arises from the dynamic nature of the connection, where factors like thermal expansion and varying periodic loads can cause movement between the flange surfaces. Such movement has the potential to compromise the functionality of the flange, leading to integrity issues and possible leakage.

While it is impossible for any product to be entirely free of drawbacks, measures are taken to minimize and manage these limitations as effectively as possible.

As a result, manufacturers focus on improving the performance of flat-welded flanges during production to optimize their functionality and versatility across a range of applications.

Applications of DIN 2543 Carbon Steel and Stainless Steel Slip On Flanges:

Oil and Gas Industry: Carbon steel and stainless steel slip on flanges are commonly used in the oil and gas industry for various applications such as pipelines, refineries, and petrochemical plants. They are suitable for low to moderate pressure and temperature environments.

Power Generation: Carbon steel and stainless steel slip on flanges find application in power generation facilities, including power plants and thermal power stations. They are used for connecting pipes in steam, water, or gas distribution systems.

Water and Wastewater Treatment: Carbon steel and stainless steel slip on flanges are utilized in water treatment plants, wastewater treatment facilities, and desalination plants. They provide secure connections for pipes carrying water, chemicals, or other fluids.

Construction and Infrastructure: Carbon steel and stainless steel slip on flanges are widely used in construction projects such as buildings, bridges, and infrastructure. They are suitable for connecting pipes in HVAC systems, plumbing, and fire protection systems.

Industrial Processes: Carbon steel and stainless stel slip on flanges are employed in various industrial processes, including manufacturing, chemical processing, and mining. They are used to connect pipes in conveying fluids, gases, or abrasive materials.

Food and Beverage Industry: Carbon steel and stainless steel slip on flanges are commonly used in the food and beverage industry due to their hygienic properties and resistance to corrosion. They are suitable for connecting pipes in processing, bottling, and storage systems.

Pharmaceuticals: Carbon Steel and stainless steel slip on flanges are utilized in pharmaceutical manufacturing facilities where cleanliness and hygiene are critical. They are used for connecting pipes in drug production, purification, and distribution systems.

Chemical Processing: Carbon Steel and stainless steel slip on flanges find application in chemical processing plants where resistance to corrosion and chemical compatibility are essential. They are used for connecting pipes carrying corrosive chemicals, acids, or solvents.
