Product Details
Place of Origin: Xi'an, Shaanxi Province, China
Brand Name: PeterTrade(PT)
Payment & Shipping Terms
Minimum Order Quantity: 1-10 Pieces
Price: negotiable
Packaging Details: Wooden Case,plywood Case,pallet Etc.
Delivery Time: about 15-45 days, accordingly
Payment Terms: D/A, T/T, L/C,D/P
Supply Ability: 100-200 Ton/Tons Per Month
Product Standard: |
DIN 2527 Blind Flanges(BLFF) |
Product Face Types: |
Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF) |
Materials: |
Mainly Inlcude Carbon Steel, Also Include Stainless Steel, Alloy Steel And Others As Your Requirement |
Pressure(Class): |
PN10 |
Sizes: |
From DN 10 - DN 1000 |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Export Countries: |
UK, Germany, Netherland, USA, Canada, Brazil, Korea, Japan, India, Egypt, Dubai, Qatar, Saudi Arabia, Indonesia, Singapore And Etc. |
Applications: |
Plumbing, HVAC, And General Industrial Piping Systems |
Product Standard: |
DIN 2527 Blind Flanges(BLFF) |
Product Face Types: |
Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF) |
Materials: |
Mainly Inlcude Carbon Steel, Also Include Stainless Steel, Alloy Steel And Others As Your Requirement |
Pressure(Class): |
PN10 |
Sizes: |
From DN 10 - DN 1000 |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Export Countries: |
UK, Germany, Netherland, USA, Canada, Brazil, Korea, Japan, India, Egypt, Dubai, Qatar, Saudi Arabia, Indonesia, Singapore And Etc. |
Applications: |
Plumbing, HVAC, And General Industrial Piping Systems |

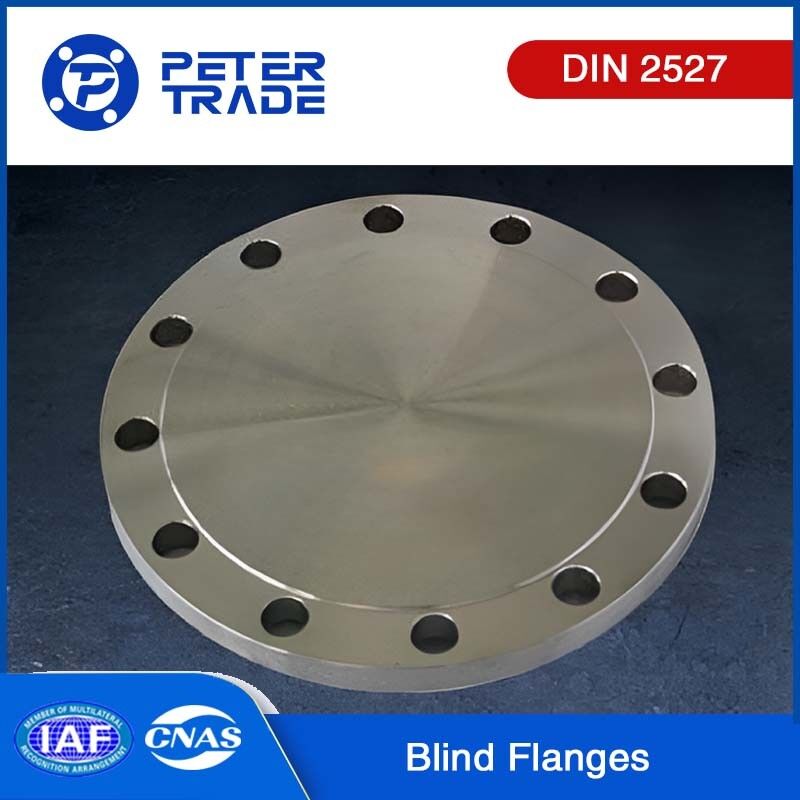

DIN 2527 PN 10 Carbon Steel Blind Flanges BLFF Flat Face for Industrial Applications
Introduction:
Thank you for considering Shaanxi Peter International Trade Co., Ltd. We are delighted to offer you our comprehensive range of DIN 2527 Carbon Steel Flanges.
Our Blind Flanges are manufactured to meet the stringent standards set by DIN Standard, ensuring their quality and reliability. These flanges are specifically designed to close off the end of a piping system, providing a solid and leak-proof seal.
By using our Carbon Steel Blind Flanges, you can effectively close off the end of your piping system, preventing any unwanted flow or leakage. Our blind flanges are suitable for various applications and industries where a solid seal is required.
Description of Carbon Steel Blind Flanges:
Carbon steel blind flanges are solid components used to seal off the end of a pipe system or valve. They are commonly used in applications where closing off the line is necessary. These flanges are designed without a bore, making them suitable for terminating a piping system securely.
Carbon steel blind flanges are well-suited for high-pressure or high-temperature applications due to the strength and durability of the carbon steel material. They are available in various sizes and pressure ratings to accommodate different piping system requirements. These flanges are often used in combination with valves and fittings to provide a secure and sealed endpoint for the piping system.
Compared to other types of flanges, carbon steel blind flanges have a relatively simple construction, requiring less mechanical machining. They are typically heavier due to the absence of a bore. While these flanges are usually supplied as blanks to accommodate slip-on flanges and weld neck flanges, custom machining options are also available. Common modifications include center machining for NPT threads and custom bore sizes to allow their use as slip-on flanges without a hub.
DIN 2527 Carbon Steel Blind Flange Dimensions:
| DIN 2527 Blind Flange PN 10 | ||||||
| Bore | Common Dimension | Drilling | Weight | |||
| Nominal Bore | D | C4 | K | Number of bolt | L | KG |
| 10 | 90 | 14 | 60 | 4 | 14 | 0.6 |
| 15 | 95 | 14 | 65 | 4 | 14 | 0.7 |
| 20 | 105 | 16 | 75 | 4 | 14 | 1.0 |
| 25 | 115 | 16 | 85 | 4 | 14 | 1.2 |
| 32 | 140 | 16 | 100 | 4 | 18 | 1.8 |
| 40 | 150 | 16 | 110 | 4 | 18 | 2.1 |
| 50 | 165 | 18 | 125 | 4 | 18 | 2.9 |
| 65 | 185 | 18 | 145 | 4 | 18 | 3.7 |
| 80 | 200 | 20 | 160 | 4 | 18 | 4.6 |
| 100 | 220 | 20 | 180 | 4 | 18 | 5.7 |
| 125 | 250 | 22 | 210 | 8 | 18 | 8.1 |
| 150 | 285 | 22 | 240 | 8 | 22 | 10.5 |
| 175 | 315 | 24 | 270 | 8 | 22 | 14.1 |
| 200 | 340 | 24 | 295 | 8 | 22 | 16.5 |
| 250 | 395 | 26 | 350 | 12 | 22 | 24.1 |
| 300 | 445 | 26 | 400 | 12 | 22 | 30.8 |
| 350 | 505 | 26 | 460 | 12 | 22 | 39.6 |
| 400 | 565 | 26 | 515 | 16 | 26 | 49.4 |
| 500 | 670 | 28 | 620 | 20 | 26 | 75.2 |
| 600 | 780 | 30 | 725 | 20 | 30 | 109.2 |
| 700 | 895 | 32 | 840 | 24 | 30 | 153.8 |
| 800 | 1015 | 36 | 950 | 24 | 33 | 222.9 |
| 900 | 1115 | 40 | 1050 | 24 | 33 | 299.1 |
| 1000 | 1230 | 46 | 1160 | 28 | 36 | 418.8 |
1.Dimensions are in millimeters(mm).
2.Dimensions can be specified by different purchasers.
Advantages of DIN 2527 Carbon Steel Blind Flanges:
DIN 2527 Carbon Steel Blind Flanges offer several advantages in piping systems:
Strength and Durability: Carbon steel is known for its high strength and durability, making DIN 2527 blind flanges capable of withstanding high-pressure and high-temperature applications. They provide a reliable and robust sealing solution in demanding environments.
Compatibility: DIN 2527 blind flanges are designed to be compatible with other DIN standard flanges. This compatibility allows for easy integration into piping systems that follow DIN specifications. They can be used in conjunction with other DIN flanges, valves, and fittings, providing a standardized and reliable connection.
Versatility: These blind flanges are available in various sizes and pressure ratings, offering versatility to accommodate different pipe diameters and system requirements. They can be selected according to specific application needs, ensuring a proper fit and performance.
Easy Installation and Removal: DIN 2527 blind flanges are relatively simple to install and remove. They do not require complex assembly or disassembly procedures, facilitating efficient maintenance, repairs, or temporary closures of the pipeline.
Cost-Effective Solution: DIN 2527 blind flanges provide a cost-effective solution for sealing off the ends of pipes or valves. Their straightforward construction and ease of installation contribute to lower labor and installation costs. Additionally, their durability reduces the need for frequent replacements, resulting in long-term cost savings.
Standardized Design: The design of DIN 2527 blind flanges follows DIN standards, ensuring consistency and compatibility within DIN piping systems. This standardized design simplifies system planning, installation, and maintenance, reducing the likelihood of errors or compatibility issues.
Customization Options: DIN 2527 blind flanges can be customized through machining processes to meet specific requirements. This includes center machining for NPT threads or custom bore sizes, allowing for flexibility in adapting to unique system needs.
Safety: The reliable sealing capability of DIN 2527 blind flanges enhances the safety of the piping system. They help prevent leaks, spills, and potential hazards associated with fluid or gas flow, contributing to a safer working environment.
Applications of DIN 2527 Carbon Steel Blind Flanges:
DIN 2527 Carbon Steel Blind Flanges find applications in various industries and scenarios where a secure termination point or closure is needed in a piping system. Some common applications of these blind flanges include:
Oil and Gas Industry: Blind flanges are used in oil and gas pipelines and refineries for sealing off the ends of pipes, valves, or equipment. They are employed during maintenance or shutdowns, or when a pipeline or section needs to be closed temporarily or permanently.
Chemical and Petrochemical Industry: These blind flanges are utilized in chemical processing plants and petrochemical facilities. They provide a reliable seal to isolate sections of the pipeline during maintenance, repairs, or when changing process conditions.
Power Generation: Blind flanges are employed in power plants, including thermal power plants, nuclear power plants, and renewable energy facilities. They are used in piping systems to close off the ends of pipes or valves, ensuring safe and efficient operation.
Water and Wastewater Treatment: In water treatment plants, blind flanges are used to seal off pipes or equipment during maintenance or repairs. They help prevent the flow of water or wastewater and allow for isolation of specific sections of the system.
Process and Manufacturing Industries: Blind flanges are found in various process and manufacturing industries where pipelines need to be closed off securely. These industries include food and beverage, pharmaceuticals, pulp and paper, and others.
Shipbuilding and Offshore Applications: Blind flanges are utilized in shipbuilding and offshore industries for closing off pipes or valves in marine systems. They provide a reliable seal and help maintain the integrity of the system in demanding marine environments.
Construction and Infrastructure: In construction projects and infrastructure installations, blind flanges are used for temporary or permanent closure of pipes or valves. They are employed during testing, pressure holding, or when sections of the system are not in use.
DIN2527 carbon steel blind flanges are versatile components that play a crucial role in creating secure terminations, facilitating maintenance, and ensuring the integrity of piping systems across a wide range of industrial applications.
