Product Details
Place of Origin: Xi'an, Shaanxi Province, China
Brand Name: PeterTrade(PT)
Payment & Shipping Terms
Minimum Order Quantity: 1-10 Pieces
Price: negotiable
Packaging Details: Wooden Case,plywood Case,pallet Etc.
Delivery Time: about 15-45 days, accordingly
Payment Terms: D/A, T/T, L/C,D/P
Supply Ability: 100-200 Ton/Tons Per Month
Product Standard: |
ASME B16.5 Standard |
Product Name: |
Socket Weld Flanges |
Material: |
A105 Carbon Steel Flanges |
Size: |
NPS 1/2 To NPS 24 |
Other Materials: |
Stainless Steel, Alloy Steel, Mild Steel And Others As Per Your Requirement |
Pressure: |
Class 150 |
Manufacturing Methods: |
Casting, Forging, Casting And Forging, Medium Plate Cutting, Casting |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Apply For: |
Chemical, Oil And Gas, Wastewater Treatment And Environmental Protection, Pharmaceutical And Food, Power And Heating Industry |
Export Countries: |
North America Countries And Others Around The World |
Product Standard: |
ASME B16.5 Standard |
Product Name: |
Socket Weld Flanges |
Material: |
A105 Carbon Steel Flanges |
Size: |
NPS 1/2 To NPS 24 |
Other Materials: |
Stainless Steel, Alloy Steel, Mild Steel And Others As Per Your Requirement |
Pressure: |
Class 150 |
Manufacturing Methods: |
Casting, Forging, Casting And Forging, Medium Plate Cutting, Casting |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Apply For: |
Chemical, Oil And Gas, Wastewater Treatment And Environmental Protection, Pharmaceutical And Food, Power And Heating Industry |
Export Countries: |
North America Countries And Others Around The World |

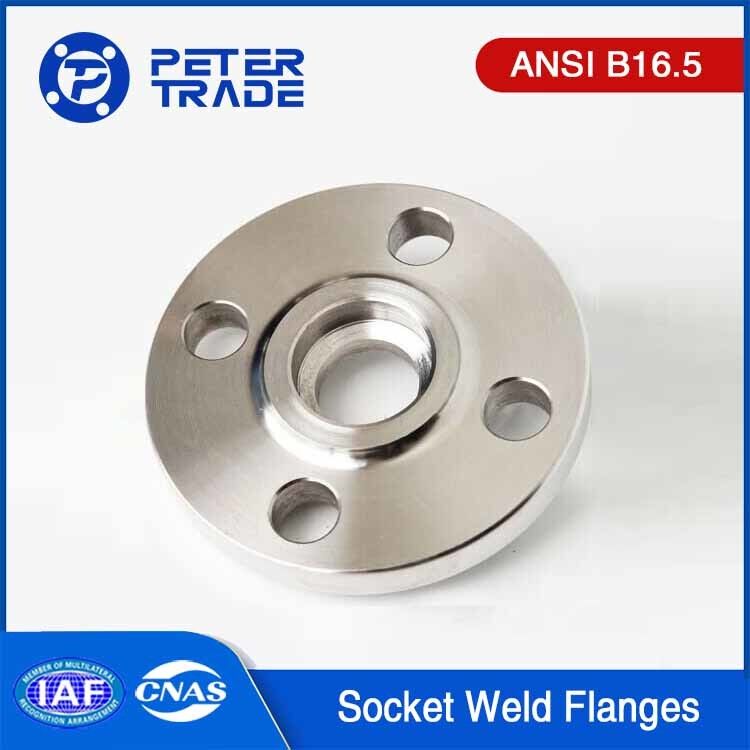

ASME B16.5 Carbon Steel Socket Weld Flanges SWRF Class 150 for Industrial Applications
Introduction:
Our company, Shaanxi Peter International Trade Co., Ltd., is a renowned and reputable supplier in the market. With a strong business background over 20 years, we have established ourselves as a trusted source for ANSI/ASME B16.5 carbon steel socket weld flanges.
As a leading supplier, we offer a comprehensive range of ANSI/ASME B16.5 carbon steel socket weld flanges in various sizes, pressure ratings, and specifications. Our flanges undergo thorough testing to ensure they meet the strict standards set by ANSI and ASME.
In addition to our top-notch products, we take pride in providing exceptional customer service. Our dedicated team is always ready to assist customers with their inquiries, offer technical support, and provide prompt and efficient logistics solutions.
With our commitment to quality, reliability, and customer satisfaction, Shaanxi Peter International Trade Co., Ltd. is your trusted partner for ANSI/ASME B16.5 carbon steel socket weld flanges. We look forward to serving you and meeting your industrial piping needs with our superior products and services.
Description of ASME B16.5 Carbon Steel Socket Weld Flanges:
ASME B16.5 Carbon Steel Socket Weld Flanges are designed and manufactured in accordance with the standards set by the American Society of Mechanical Engineers (ASME) B16.5. These flanges are specifically crafted for use with carbon steel piping systems and are intended for socket welding connections:
Material: These flanges are constructed from high-quality carbon steel, which offers excellent strength, durability, and corrosion resistance, making them suitable for various industrial applications.
Socket Weld Connection: The design of these flanges allows for easy socket welding connection with pipes. The socket weld joint provides a strong and reliable connection, ideal for high-pressure and high-temperature applications.
Conformance: ASME B16.5 standards ensure that these flanges meet stringent requirements for dimensions, tolerances, materials, and testing, guaranteeing their reliability and performance in demanding environments.
Size Range: ASME B16.5 Carbon Steel Socket Weld Flanges are available in a range of sizes to accommodate different piping system requirements. Commonly used sizes include 1/2" to 24" or even larger, depending on the application.
Pressure Rating: These flanges are designed to withstand varying pressure levels, with pressure ratings typically ranging from 150 lbs to 2500 lbs, or even higher for special applications.
Applications: ASME B16.5 Carbon Steel Socket Weld Flanges are widely used in industries such as oil and gas, petrochemical, chemical processing, power generation, and more, where reliable and leak-free connections are essential.
ASME B16.5 Carbon Steel Socket Weld Flange Dimensions:
| ANSI/ASME B16.5 Class 150 SOCKET WELD FLANGES SWRF | ||||||||||||
| Nominal Pipe size | Outside Dia | O.D.of Raised Face | Dia at Base of Hub | Thickness | Bore | Length | Depth of Socket | Drilling |
Approximate Weight(lb) |
|||
| D | G | X | t | B1 | B2 | T2 | Y | Bolt circle diam | Number of holes | Diam of Bolt | ||
| 1/2'' | 89 | 35.1 | 30.2 | 11.2 | 15.7 | 22.4 | 15.7 | 9.7 | 60.5 | 4 | 15.7 | 2 |
| 3/4'' | 99 | 42.9 | 38.1 | 12.7 | 20.8 | 27.7 | 15.7 | 11.2 | 69.9 | 4 | 15.7 | 2 |
| 1'' | 108 | 50.8 | 49.3 | 14.2 | 26.7 | 34.5 | 17.5 | 12.7 | 79.2 | 4 | 15.7 | 2 |
| 1.1/4'' | 117 | 63.5 | 58.7 | 15.7 | 35.1 | 43.2 | 20.6 | 14.2 | 88.9 | 4 | 15.7 | 3 |
| 1.1/2'' | 127 | 73.2 | 65 | 17.5 | 40.9 | 49.5 | 22.4 | 15.7 | 98.6 | 4 | 15.7 | 3 |
| 2'' | 152 | 91.9 | 77.7 | 19.1 | 52.6 | 62 | 25.4 | 17.5 | 120.7 | 4 | 19.1 | 5 |
| 2.1/2'' | 178 | 104.6 | 90.4 | 22.4 | 62.7 | 74.7 | 28.4 | 19.1 | 139.7 | 4 | 19.1 | 8 |
| 3'' | 191 | 127 | 108 | 23.9 | 78 | 90.7 | 30.2 | 20.6 | 152.4 | 4 | 19.1 | 9 |
| 3.1/2'' | 216 | 139.7 | 122.2 | 23.9 | 90.2 | 103.4 | 31.8 | 22.4 | 177.8 | 8 | 19.1 | 11 |
| 4'' | 229 | 157.2 | 134.9 | 23.9 | 102.4 | 116.1 | 33.3 | 23.9 | 190.5 | 8 | 19.1 | 13 |
| 5'' | 254 | 185.7 | 163.6 | 23.9 | 128.3 | 143.8 | 36.6 | 23.9 | 215.9 | 8 | 22.4 | 15 |
| 6'' | 279 | 215.9 | 192 | 25.4 | 154.2 | 170.7 | 39.6 | 26.9 | 241.3 | 8 | 22.4 | 19 |
| 8'' | 343 | 269.7 | 246.1 | 28.4 | 202.7 | 221.5 | 44.5 | 31.8 | 298.5 | 8 | 22.4 | 30 |
| 10'' | 406 | 323.9 | 304.8 | 30.2 | 254.5 | 276.4 | 49.3 | 33.3 | 362 | 12 | 25.4 | 43 |
| 12'' | 483 | 381 | 365.3 | 31.8 | 304.8 | 327.2 | 55.6 | 39.6 | 431.8 | 12 | 25.4 | 64 |
| 14'' | 533 | 412.8 | 400.1 | 35.1 | 336.6 | 359.2 | 57.2 | 41.4 | 476.3 | 12 | 28.4 | 90 |
| 16'' | 597 | 469.9 | 457.2 | 36.6 | 387.4 | 410.5 | 63.5 | 44.5 | 539.8 | 16 | 28.4 | 98 |
| 18'' | 635 | 533.4 | 505 | 39.6 | 438.2 | 461.8 | 68.3 | 49.3 | 577.9 | 16 | 31.8 | 130 |
| 20'' | 699 | 584.2 | 558.8 | 42.9 | 489 | 513.1 | 73.2 | 54.1 | 635 | 20 | 31.8 | 165 |
| 22’’ | 749 | 641.3 | 616 | 44.5 | 539.8 | 564.4 | 78.0 | 60.5 | 692.2 | 20 | 35.1 | 185 |
| 24'' | 813 | 692.2 | 663.4 | 47.8 | 590.6 | 616 | 82.6 | 63.5 | 749.3 | 20 | 35.1 | 220 |
1.Dimensions are in millimeters(mm).
2.Dimensions can be specified by different purchasers.
Constructions for ASME B16.5 Carbon Steel Socket Weld Flanges:
The socket weld flange that complies with ASME B16.5 standards is a type of flange with a hub. It typically consists of a circular flange body and a tapered hub. The flange must be manufactured as a single piece, and the taper should not exceed 7 degrees. A socket structure of specific depth is machined into the bore. The diameter of the socket should match that of a slip-on flange of the same size. The diameter of the smaller bore should be equal to the nominal inside diameter of the adjacent pipe or the bore diameter of a welding neck flange of the same size. The socket welding flange can be provided with a raised face (RF), flat face (FF), or ring type joint (RTJ).
Applications of ASME B16.5 Carbon Steel Socket Weld Flanges:
ASME B16.5 Carbon Steel Socket Weld Flanges find applications in various industries and systems where a secure and reliable connection is required for threaded pipes or fittings. Here are some key applications where these flanges are commonly used:
Chemical Processing: ASME B16.5 Carbon Steel Socket Weld Flanges are widely utilized in chemical processing plants for connecting pipes and equipment involved in the transportation of corrosive chemicals, acids, and solvents. The stainless steel construction provides excellent corrosion resistance, ensuring the integrity and safety of the system.
Oil and Gas Industry: Socket Weld Flanges are extensively employed in the oil and gas industry, particularly in pipelines, refineries, and offshore platforms. They facilitate the connection of pipes and equipment for the transportation of oil, natural gas, and petroleum products. The stainless steel material ensures durability and resistance to harsh operating conditions.
Water and Wastewater Treatment: ASME B16.5 Carbon Steel Socket Weld Flanges are commonly used in water treatment plants, wastewater treatment facilities, and desalination plants. They provide a secure connection for pipes and equipment involved in filtration, purification, and distribution processes.
Food and Beverage Industry: These flanges find applications in the food and beverage industry for connecting pipes and equipment used in processing, bottling, and distribution. The stainless steel construction ensures hygiene, as it is resistant to corrosion and does not contaminate the food or beverage products.
Pharmaceutical Industry: ASME B16.5 Carbon Steel Socket Weld Flanges are utilized in pharmaceutical manufacturing facilities for connecting pipes and equipment involved in the production of medications, vaccines, and other pharmaceutical products. The stainless steel material meets the industry's stringent hygiene and cleanliness requirements.
HVAC Systems: Socket weld flanges are used in heating, ventilation, and air conditioning (HVAC) systems for connecting pipes, ductwork, and equipment. They ensure a secure and leak-free connection, allowing for the efficient distribution of heated or cooled air throughout buildings.
Marine and Offshore Applications: ASME B16.5 Carbon Steel Socket Weld Flanges are suitable for marine and offshore applications due to their corrosion resistance and durability. They are used in shipbuilding, offshore platforms, and marine pipelines, ensuring reliable connections in challenging marine environments.
Carbon Steel Socket Weld Flanges are generally used in low-pressure applications compared to welded flanges. They are suitable for systems operating at lower temperatures and pressures where a reliable and easily removable connection is required. When selecting ASME B16.5 Carbon Steel Socket Weld Flanges for a specific application, it is crucial to consider factors such as operating conditions, fluid compatibility, and system requirements.
