Product Details
Place of Origin: Xi'an, Shaanxi Province, China
Brand Name: PeterTrade(PT)
Payment & Shipping Terms
Minimum Order Quantity: 1-10 Pieces
Price: negotiable
Packaging Details: Wooden Case,plywood Case,pallet Etc.
Delivery Time: about 15-45 days, accordingly
Payment Terms: D/A, T/T, L/C,D/P
Supply Ability: 100-200 Ton/Tons Per Month
Product Standard: |
ASME/ANSI B16.5 |
Product Name: |
Threaded Flanges Raised Face(THRF) |
Material: |
Stainless Steel Flanges/Carbon Steel Flanges |
Size: |
From 1/2'' To 24'' |
Pressure: |
Class 900 |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Export Countries: |
North America And Other Countries In The World |
Applications: |
Oil And Gas Industry, Power And Heating Industry, Water Pipeline And Etc. |
Product Standard: |
ASME/ANSI B16.5 |
Product Name: |
Threaded Flanges Raised Face(THRF) |
Material: |
Stainless Steel Flanges/Carbon Steel Flanges |
Size: |
From 1/2'' To 24'' |
Pressure: |
Class 900 |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Export Countries: |
North America And Other Countries In The World |
Applications: |
Oil And Gas Industry, Power And Heating Industry, Water Pipeline And Etc. |

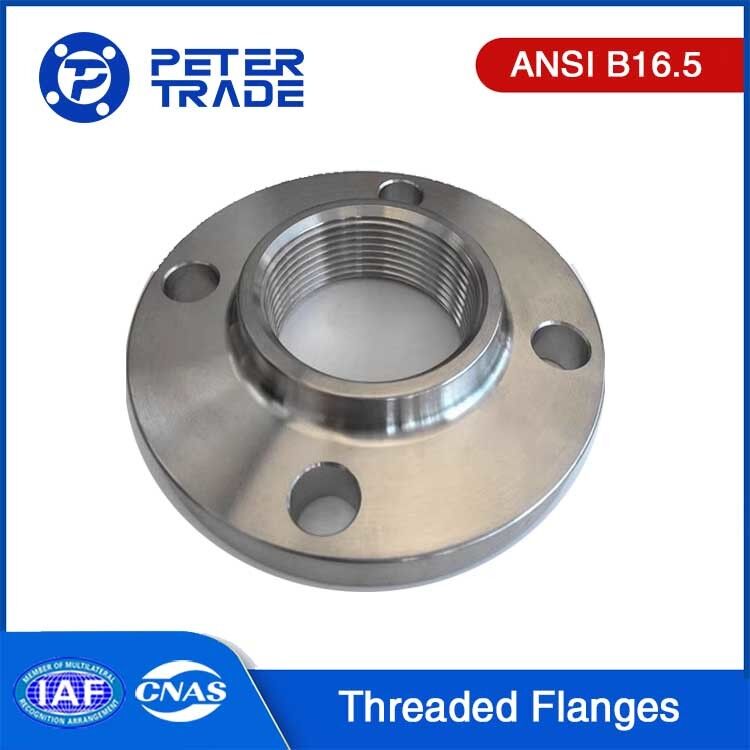

ASME B16.5 Stainless Steel Threaded Flanges Raised Face Class 900 for Industrial Applications
Introduction:
Shaanxi Peter International Trade Co., Ltd. is a renowned and long-standing supplier in the market, with a remarkable track record spanning over two decades. As a highly experienced and knowledgeable company, we have established ourselves as a trusted and reliable source for ASME B16.5 Stainless Steel Threaded Flanges. Our commitment to delivering exceptional quality and ensuring customer satisfaction has positioned us as a preferred choice for discerning customers seeking top-notch threaded flange solutions.
Over the years, we have built solid relationships with renowned manufacturers and have access to a comprehensive range of ASME B16.5 Stainless Steel Threaded Flanges. Our inventory comprises flanges crafted from high-quality stainless steel, ensuring exceptional durability, corrosion resistance, and longevity. We understand the criticality of precision and adherence to industry standards, which is why we source flanges that conform to the stringent specifications of the ASME B16.5 standard.
Our company's success is built on a foundation of exceptional customer service. We strive to understand our customers' unique requirements and provide tailored solutions that meet their specific needs. With a dedicated and knowledgeable team, we offer technical support, prompt response times, and efficient logistics to ensure a seamless experience from inquiry to delivery.
Description of ASME B16.5 Stainless Steel Threaded Flanges:
ASME B16.5 is a standard created by the American Society of Mechanical Engineers (ASME) that specifies the dimensions, materials, and performance requirements for threaded flanges. Threaded flanges are a type of flange used to join pipes or fittings with external threads.
Here is a description of ASME B16.5 threaded flanges:
Design and Dimensions: ASME B16.5 threaded flanges are designed to have a standard pipe thread (NPT) conforming to ANSI/ASME B1.20.1. The flanges have a cylindrical shape with a raised face or a ring-type joint face. The standard covers flanges ranging from 1/2 inch to 24 inches in size.
Pressure Ratings: The ASME B16.5 standard provides pressure-temperature ratings for threaded flanges. These ratings indicate the maximum allowable pressure at a given temperature. The pressure ratings range from 150 pounds per square inch (psi) to 2500 psi.
Materials: The standard specifies the materials for threaded flanges based on their application and compatibility with the fluid being conveyed. Common materials used for ASME B16.5 threaded flanges include carbon steel, stainless steel, alloy steel, and non-ferrous metals such as bronze or brass.
Face Types: ASME B16.5 threaded flanges come with two face types: raised face (RF) and ring-type joint (RTJ). The raised face flange has a flat gasket sealing surface and is suitable for most general-purpose applications. The ring-type joint face flange features a groove machined into its face and uses a metal ring gasket for sealing. RTJ flanges are commonly used in high-pressure and high-temperature applications.
Marking and Identification: ASME B16.5 threaded flanges are marked with relevant information such as flange size, pressure rating, material specification, and manufacturer's identification. This marking helps in proper identification and ensures that the flanges meet the required standards.
Installation and Assembly: Threaded flanges are assembled by screwing the male thread of the flange into the female thread of the connecting pipe or fitting. Proper tightening techniques and the use of suitable thread sealants or tape are essential to ensure a leak-free joint.
ASME B16.5 threaded flanges are widely used in various industries, including oil and gas, petrochemical, chemical, power generation, and water treatment. They provide a reliable and convenient method for joining pipes and fittings with threaded connections, allowing for easy installation, maintenance, and disassembly.
ASME B16.5 Stainless Steel Threaded Flange Dimensions:
| ANSI/ASME B16.5 Class 900 THREADED FLANGES THRF | ||||||||||
| Nominal Pipe size | Outside Diameter | O.D.of Raised Face | Diameter at Base of Hub | Thickness | Dia Counter Bore | Length through hub | Drilling |
Approximate Weight(lb) |
||
| D | G | X | t | B2 | T2 | Bolt circle diameter | Number of holes | Diameter of Bolt | ||
| 1/2'' | 121 | 35.1 | 38.1 | 22.4 | 23.6 | 31.8 | 82.6 | 4 | 22.4 | 6 |
| 3/4'' | 130 | 42.9 | 44.5 | 25.4 | 29 | 35.1 | 88.9 | 4 | 22.4 | 6 |
| 1'' | 149 | 50.8 | 52.3 | 28.4 | 35.8 | 41.1 | 101.6 | 4 | 25.4 | 7.5 |
| 1.1/4'' | 159 | 63.5 | 63.5 | 28.4 | 44.4 | 41.1 | 111.3 | 4 | 25.4 | 10 |
| 1.1/2'' | 178 | 73.2 | 69.9 | 31.8 | 50.3 | 44.5 | 124 | 4 | 28.4 | 14 |
| 2'' | 216 | 91.9 | 104.6 | 38.1 | 63.5 | 57.2 | 165.1 | 8 | 25.4 | 22 |
| 2.1/2'' | 244 | 104.6 | 124 | 41.1 | 76.2 | 63.5 | 190.5 | 8 | 28.4 | 31 |
| 3'' | 241 | 127 | 127 | 38.1 | 92.2 | 53.8 | 190.5 | 8 | 25.4 | 36 |
| 4'' | 292 | 157.2 | 158.8 | 44.5 | 117.6 | 69.9 | 235 | 8 | 31.8 | 53 |
| 5'' | 349 | 185.7 | 190.5 | 50.8 | 144.4 | 79.2 | 279.4 | 8 | 35.1 | 83 |
| 6'' | 381 | 215.9 | 235 | 55.6 | 171.4 | 85.9 | 317.5 | 12 | 31.8 | 110 |
| 8'' | 470 | 269.7 | 298.5 | 63.5 | 222.2 | 101.6 | 393.7 | 12 | 38.1 | 172 |
| 10'' | 546 | 323.9 | 368.3 | 69.9 | 276.2 | 108 | 469.9 | 16 | 38.1 | 245 |
| 12'' | 610 | 381 | 419.1 | 79.2 | 328.6 | 117.3 | 533.4 | 20 | 38.1 | 326 |
| 14'' | 641 | 412.8 | 450.9 | 85.9 | 360.4 | 130 | 558.8 | 20 | 41.1 | 400 |
| 16'' | 705 | 469.9 | 508 | 88.9 | 411.2 | 133.4 | 616 | 20 | 44.5 | 459 |
| 18'' | 787 | 533.4 | 565.2 | 101.6 | 462.0 | 152.4 | 685.8 | 20 | 50.8 | 647 |
| 20'' | 857 | 584.2 | 622.3 | 108 | 512.8 | 158.8 | 749.3 | 20 | 53.8 | 792 |
| 24'' | 1041 | 692.2 | 749.3 | 139.7 | 614.4 | 203.2 | 901.7 | 20 | 66.5 | 1480 |
1.Dimensions are in millimeters(mm).
2.Dimensions can be specified by different purchasers.
3. For sizes 1/2’’-2.1/2’’, Dimensions of ASME B16.5 Class 900 threaded flange are the same as ASME B16.5 Class 1500 threaded flanges.
Standards and Certifications that Threaded Flanges should meet:
ASME B16.5 Stainless Steel Threaded Flanges need to meet certain standards and certifications to ensure their quality, performance, and compliance with industry requirements. Here are some key standards and certifications that these flanges typically adhere to:
ASME B16.5: ASME B16.5 is a widely recognized standard developed by the American Society of Mechanical Engineers (ASME) that covers the dimensions, material requirements, testing, and markings for pipe flanges and flanged fittings. ASME B16.5 provides guidelines for various types of flanges, including threaded flanges, and ensures their compatibility and interchangeability.
ASTM Standards: ASTM International (formerly known as the American Society for Testing and Materials) establishes standards for various materials, including stainless steel. Stainless steel threaded flanges should meet specific ASTM standards, such as ASTM A182/A182M for forged or rolled alloy steel pipe flanges, forged fittings, and valves and parts for high-temperature service.
ANSI/ASME Pressure Class: ASME B16.5 Threaded Flanges are often classified based on pressure ratings, such as Class 150, Class 300, Class 600, and so on. These pressure classes conform to ANSI (American National Standards Institute) standards and define the maximum allowable pressure for the flanges.
Material Certifications: Stainless steel threaded flanges should typically come with material certifications or traceability documents, such as Mill Test Reports (MTRs) or Material Certificates, which provide information about the chemical composition, mechanical properties, and origin of the stainless steel used in the flanges. These certifications ensure that the material meets the required specifications.
Compliance with Codes and Regulations: Depending on the application and industry, ASME B16.5 Stainless Steel Threaded Flanges may need to comply with specific codes and regulations. For example, in the United States, flanges used in pressure vessels or piping systems for certain industries may need to meet requirements set by agencies like the American Petroleum Institute (API) or the Occupational Safety and Health Administration (OSHA).
Applications of ASME B16.5 Stainless Steel Threaded Flanges:
ASME B16.5 Stainless Steel Threaded Flanges find applications in various industries and systems where a secure and reliable connection is required for threaded pipes or fittings. Here are some key applications where these flanges are commonly used:
Oil and Gas Industry: These threaded flanges are extensively employed in the oil and gas industry, particularly in pipelines, refineries, and offshore platforms. They facilitate the connection of pipes and equipment for the transportation of oil, natural gas, and petroleum products. The stainless steel material ensures durability and resistance to harsh operating conditions.
Chemical Processing: ASME B16.5 Stainless Steel Threaded Flanges are widely utilized in chemical processing plants for connecting pipes and equipment involved in the transportation of corrosive chemicals, acids, and solvents. The stainless steel construction provides excellent corrosion resistance, ensuring the integrity and safety of the system.
Water and Wastewater Treatment: ASME B16.5 Stainless Steel Threaded Flanges are commonly used in water treatment plants, wastewater treatment facilities, and desalination plants. They provide a secure connection for pipes and equipment involved in filtration, purification, and distribution processes.
Food and Beverage Industry: These flanges find applications in the food and beverage industry for connecting pipes and equipment used in processing, bottling, and distribution. The stainless steel construction ensures hygiene, as it is resistant to corrosion and does not contaminate the food or beverage products.
HVAC Systems: Threaded flanges are used in heating, ventilation, and air conditioning (HVAC) systems for connecting pipes, ductwork, and equipment. They ensure a secure and leak-free connection, allowing for the efficient distribution of heated or cooled air throughout buildings.
Power Generation: Stainless Steel Threaded flanges are used in power plants for various applications such as steam systems, water circulation, and fuel lines. They are suitable for low-pressure and moderate-temperature environments.
Stainless Steel threaded flanges are generally used in low-pressure applications compared to welded flanges. They are suitable for systems operating at lower temperatures and pressures where a reliable and easily removable connection is required. When selecting ASME B16.5 Stainless Steel Threaded Flanges for a specific application, it is crucial to consider factors such as operating conditions, fluid compatibility, and system requirements.
