Product Type: |
ASME B16.5 Lap Joint Flanges |
Material: |
Carbon Steel Flanges |
Size: |
1/2''to 12'' |
Pressure: |
Class 2500 |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Application: |
Oil And Gas Pipelines, Chemical Plants, Power Generation Facilities, And Refineries |
Product Type: |
ASME B16.5 Lap Joint Flanges |
Material: |
Carbon Steel Flanges |
Size: |
1/2''to 12'' |
Pressure: |
Class 2500 |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Application: |
Oil And Gas Pipelines, Chemical Plants, Power Generation Facilities, And Refineries |

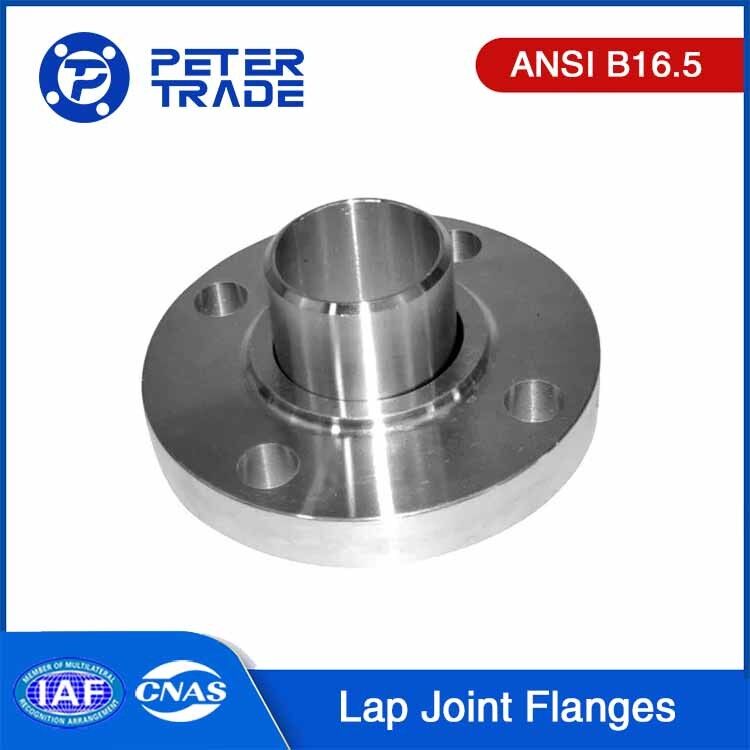

ASME B16.5 Carbon Steel Lap Joint Flanges LJRF Class 2500LB for Industrial Applications
Introduction:
Thank you for considering Shaanxi Peter International Trade Co., Ltd, a reputable and experienced firm in the industry. We specialize in providing a wide selection of top-notch ASME B16.5 Class 2500 Carbon Steel Lap Joint Flanges that cater to various industrial needs.
We manufacture lap joint flanges that provide a reliable, leak-free connection between two pipes or pieces of equipment. Our flanges meet the rigorous standards set by ASME B16.5, ensuring easy integration with other components in the piping system. You can trust our flanges to deliver a seamless and dependable solution for your piping needs.
We understand the significance of reliable and consistent performance in industrial operations, and our lap joint flanges are designed to meet stringent quality standards. They offer superior strength and durability, ensuring long-lasting and efficient performance. Our team of experts inspects each product for quality and precision, guaranteeing that they meet the industry's highest standards.
Our flanges are made from premium quality materials, including carbon steel, stainless steel, and other alloys. This ensures that they offer excellent strength, durability, and corrosion resistance, making them suitable for use in harsh environments where they may come into contact with corrosive substances or extreme temperatures.
Our ASME B16.5 Class 2500 Lap Joint Flanges are available in a wide range of sizes, dimensions, and pressure ratings, providing flexibility in design and installation. We can also customize our flanges to meet specific project requirements, including special drilling patterns or dimensions.
Description of ASME B16.5 Carbon Steel Lap Joint Flanges:
Lap Joint Flanges, also known as loose flanges or Van Stone flanges, are a type of pipe flange that offers several unique features and advantages. They are widely used in piping systems for various industrial applications.
The design of Lap Joint Flanges consists of two separate components: the Stub End and the backing flange. The Stub End is a short piece of pipe with a slightly larger outer diameter than the pipe it connects to. It has a flat face and is welded to the pipe. The backing flange, on the other hand, is a ring-shaped flange with a flat face and a protruding lip or collar.
One notable feature of Lap Joint Flanges is their ability to rotate freely on the Stub End. The backing flange is not welded to the pipe, allowing it to rotate independently. This rotation capability makes aligning the bolt holes during installation and removal much easier, simplifying the assembly process.
Lap Joint Flanges are often used in situations where frequent dismantling of the piping system is required for inspection, maintenance, or repair purposes. The ability to separate the Stub End and backing flange without disturbing the pipe allows for quick and convenient access to the joint, minimizing downtime.
Another advantage of Lap Joint Flanges is their cost-effectiveness. By using a costly corrosion-resistant alloy only for the Stub End while employing a less expensive material, such as carbon steel, for the backing flange, overall costs can be reduced without compromising the required corrosion resistance.
However, it's important to note that Lap Joint Flanges have limitations. They are typically recommended for low-pressure applications where the loads exerted on the flange connection are relatively low. The sealing capability of Lap Joint Flanges is also limited, relying on gaskets placed between the Stub End and the backing flange to provide a seal.
Despite these limitations, Lap Joint Flanges remain a popular choice in various industries due to their easy installation, rotational flexibility, cost-effectiveness, and suitability for applications that require frequent dismantling.
ASME B16.5 Lap Joint Flange Dimensions:
| ASME B16.5 Class 2500 Lap Joint FLANGES LJRF | ||||||||||
| Nominal Pipe size | Outside Diam | Diam at Base of Hub | Thickness | Bore | Length | Radius of Fillet | Drilling |
Approximate Weight(lb) |
||
| D | X | t | B3 | T3 | R | Bolt circle dia | Number of holes | Dia of Bolt | ||
| 1/2'' | 133 | 42.9 | 30.2 | 22.9 | 39.6 | 3 | 88.9 | 4 | 22.4 | 7 |
| 3/4'' | 140 | 50.8 | 31.8 | 28.2 | 42.9 | 3 | 95.3 | 4 | 22.4 | 8 |
| 1'' | 159 | 57.2 | 35.1 | 35.1 | 47.8 | 3 | 108 | 4 | 25.4 | 12 |
| 1.1/4'' | 184 | 73.2 | 38.1 | 43.7 | 52.3 | 4.8 | 130.3 | 4 | 28.4 | 17 |
| 1.1/2'' | 203 | 79.2 | 44.5 | 50 | 60.5 | 6.4 | 146.1 | 4 | 31.8 | 24 |
| 2'' | 235 | 95.3 | 50.8 | 62.5 | 69.9 | 7.9 | 165.1 | 8 | 28.4 | 37 |
| 2.1/2'' | 267 | 114.3 | 57.2 | 75.4 | 79.2 | 7.9 | 196.9 | 8 | 31.8 | 53 |
| 3'' | 305 | 133.4 | 66.5 | 91.4 | 92 | 9.7 | 228.6 | 8 | 35.1 | 80 |
| 4'' | 356 | 165.1 | 76.2 | 116.8 | 108 | 11.2 | 273.1 | 8 | 41.4 | 122 |
| 5'' | 419 | 203.2 | 91.9 | 144.5 | 130.1 | 11.2 | 323.9 | 8 | 47.8 | 204 |
| 6'' | 483 | 235 | 108 | 171.5 | 152.4 | 12.7 | 368.3 | 8 | 53.8 | 314 |
| 8'' | 552 | 304.8 | 127 | 222.3 | 177.8 | 12.7 | 438.2 | 12 | 53.8 | 471 |
| 10'' | 673 | 374.7 | 165.1 | 277.4 | 228.6 | 12.7 | 539.8 | 12 | 66.8 | 897 |
| 12'' | 762 | 441.5 | 184.2 | 328.2 | 254 | 12.7 | 619.3 | 12 | 73.2 | 1262 |
1.Dimensions are in millimeters(mm).
2.Dimensios can be specified by different purchasers.
Features of Carbon Steel Lap Joint Flanges in the Applications:
Two-piece design: Lap Joint Flanges consist of two separate pieces, a Stub End and a backing flange. The two-piece design allows for easier alignment of bolt holes during installation and removal.
Rotatable flange: The backing flange of Lap Joint Flanges is not welded to the pipe, making it rotatable. This feature facilitates alignment of bolt holes, simplifying installation and removal processes.
Cost-effective: Lap Joint Flanges are a cost-effective solution that allows the usage of an expensive corrosion-resistant material for only the Stub End, while the backing flange can be made from more affordable materials like carbon steel.
Easy dismantling: The two-piece design of Lap Joint Flanges makes them easy to dismantle, facilitating inspection, maintenance, and repair operations.
Corrosion resistance: Lap Joint Flanges are available in a range of materials that offer excellent corrosion resistance, making them ideal for use in corrosive environments.
Low-pressure applications: Lap Joint Flanges are typically recommended for low-pressure applications, where the loads applied to the flange connection by the pipe are relatively low.
Limited sealing capability: Lap Joint Flanges rely on the gaskets placed between the Stub End and the backing flange to provide a seal. As a result, their sealing capability is limited.
Applications of ASME B16.5 Carbon Steel Lap Joint Flanges:
ASME B16.5 carbon steel lap joint flanges have a wide range of applications in various industries due to their specific design and capabilities. Some common applications include:
Petrochemical Industry: Carbon steel lap joint flanges are often used in the petrochemical industry for sealing off the ends of pipelines, tanks, and pressure vessels. They provide a secure and leak-proof termination point, which is essential for containing hazardous materials and maintaining system integrity.
Oil and Gas Industry: These lap joint flanges are utilized in oil and gas facilities for closing off pipe ends during maintenance, repair, or decommissioning activities. They are also employed in pipeline systems to create terminations that can be easily modified or reopened for future expansions.
Power Generation: In power plants, ASME B16.5 carbon steel lap joint flanges are employed in steam, water, and gas piping systems. They serve as closure devices for pipe terminations and provide a means to isolate sections of the piping network during maintenance and repairs.
Chemical Processing: Carbon steel lap joint flanges are used in chemical processing facilities to seal openings and provide a secure termination point for pipelines, reactors, and storage vessels. They help prevent leaks and maintain the integrity of the system when handling corrosive or hazardous chemicals.
Water Treatment and Distribution: These flanges find application in water treatment facilities and distribution systems for capping off unused pipe ends, creating blockages, or providing access points for future expansion or modification of the infrastructure.
Overall, ASME B16.5 carbon steel lap joint flanges are versatile components that play a crucial role in creating secure terminations, facilitating maintenance, and ensuring the integrity of piping systems across a wide range of industrial applications.
