EN1092-01 TYPE 01 Stainless Steel SS304 SS316L Flat Face Plate Flange PN 63 PLFF in Higher Pressure Applications

EN1092-01 TYPE 01 Stainless Steel Plate Flanges PN 63 PLFF for Industrial Applications

Introduction:

Shaanxi Peter International Trade Co., Ltd. is a reputable and highly regarded supplier in the market, specializing in EN1092-01 Stainless Steel Plate Flanges. With over 20 years of industry experience, we have built a solid reputation for providing high-quality products and exceptional service.

Our company provides a trusted and reliable source for EN1092-01 Stainless Steel Plate Flanges. We understand the importance of meeting our customers' requirements and strive to exceed their expectations. Whether it's for industrial or commercial applications, we have the expertise and resources to deliver the right flanges to meet your specific needs.

One of the key factors that sets us apart is our strong network of trusted manufacturers. We work closely with these manufacturers who share our commitment to quality and precision. Our EN1092-01 Stainless Steel Plate Flanges undergo strict quality control measures and thorough inspection to ensure they meet the highest standards of durability and performance.

Description of EN1092-01 Stainless Steel Plate Flanges:

EN1092-01 Stainless Steel Plate Flanges are a specific type of flange designed for connecting pipes, valves, and other equipment in various industrial applications. These flanges are manufactured according to the EN1092-01 standard, which specifies the dimensions, materials, and technical requirements for flanges.

Here are some key features and characteristics of EN1092-01 Stainless Steel Plate Flanges:

Material: These flanges are made from stainless steel, which offers excellent corrosion resistance and durability. Stainless steel alloys commonly used include 304, 316, and 316L, among others.

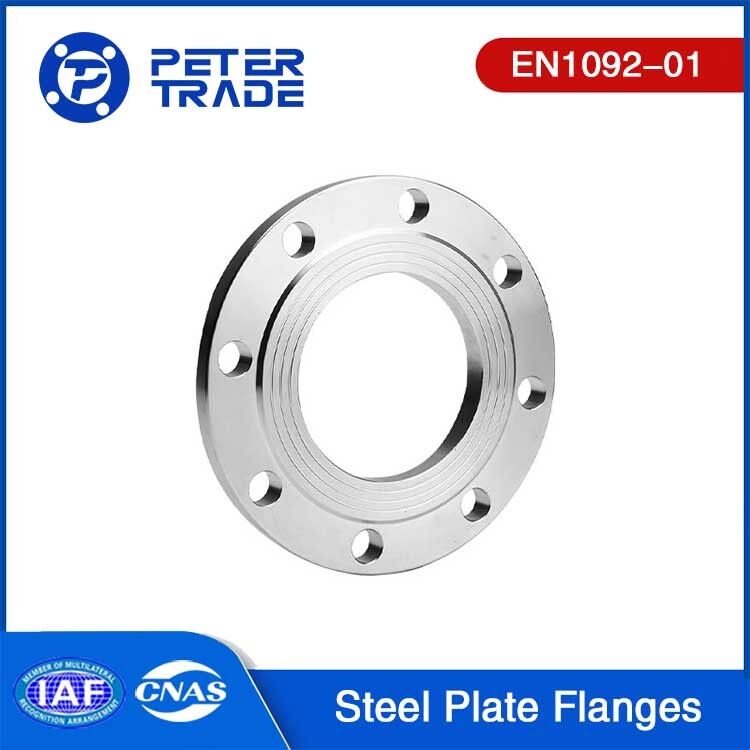

Design: EN1092-01 Stainless Steel Plate Flanges have a flat circular plate with bolt holes around the perimeter. They are typically used for connecting pipes or equipment that require easy access for cleaning, inspection, or maintenance.

Pressure Ratings: These flanges are available in different pressure ratings ranging from PN2.5 to PN100, indicating their ability to withstand specific pressure levels. The pressure rating determines the thickness of the flange plate and the number of bolts required.

Size Range: EN1092-01 Stainless Steel Plate Flanges come in a wide range of sizes, accommodating different pipe diameters and applications. Common sizes range from DN10 (10mm) to DN2000 (2000mm).

Compatibility: These flanges are designed to be compatible with various pipe materials, including stainless steel, carbon steel, and other alloys.

Standard Compliance: EN1092-01 Stainless Steel Plate Flanges are manufactured in accordance with the EN1092-01 standard, ensuring dimensional accuracy and adherence to quality requirements.

Applications: These flanges are commonly used in industries such as oil and gas, chemical processing, water treatment, pharmaceuticals, food and beverage, and many others where corrosion resistance and durability are essential.

EN1092-01 Stainless Steel Plate Flange Dimensions:

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.

Grades of Stainless Steel Flanges:

The material grade of stainless steel flanges is classified and specified based on the chemical composition, mechanical properties, and corrosion resistance of stainless steel materials. Here is an introduction to common material grades of stainless steel flanges:

1.ASTM A182 F304/304L: This is a common material grade for stainless steel flanges, suitable for general industrial applications. It primarily consists of 18% chromium and 8% nickel, providing good corrosion resistance and oxidation resistance. F304L is the low carbon version, suitable for use in welding conditions.

2.ASTM A182 F316/316L: This is a material grade with better corrosion resistance, commonly used in corrosive environments such as chemical, petroleum, and marine industries. It contains 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, which enables resistance against strong corrosive media like sulfuric acid and hydrochloric acid. F316L is the low carbon version, helping to reduce intergranular corrosion during welding.

3.ASTM A182 F321: This is a titanium-stabilized material grade for stainless steel flanges, suitable for high-temperature environments. It contains 18-20% chromium, 9-12% nickel, and also includes 0.15-0.30% titanium, enhancing corrosion resistance and high-temperature performance.

In addition to the above-mentioned common material grades of stainless steel flanges, there are other material grades such as ASTM A182 F347, ASTM A182 F904L, etc., which have different chemical compositions and characteristics, suitable for different working conditions and media.

When selecting the material grade of stainless steel flanges, it is necessary to evaluate specific factors such as the working environment, corrosive nature of the media, temperature, and pressure requirements to ensure the appropriate material grade is chosen to meet the engineering needs.

The Importance of EN1092-01 Stainless Steel Plate:

EN1092-01 Stainless Steel Plate Flanges play a crucial role in various industrial applications. Here are some key reasons why they are important:

Connection and Integration: EN1092-01 Stainless Steel Plate Flanges provide a reliable and secure connection between pipes, valves, and other equipment. They allow for easy integration of different components, facilitating the efficient operation of industrial systems.

Leak Prevention: The raised face of EN1092-01 Stainless Steel Plate Flanges creates a sealing surface when compressed against a matching flange. This helps prevent leaks and ensures the integrity of fluid or gas flow within the system. Proper installation and maintenance of flanges are essential to maintain a leak-free operation.

Corrosion Resistance: Stainless steel is highly resistant to corrosion, making EN1092-01 Stainless Steel Plate Flanges suitable for use in corrosive environments. They can withstand exposure to chemicals, saltwater, and other harsh substances, ensuring long-term durability and minimizing maintenance costs.

Temperature and Pressure Tolerance: EN1092-01 Stainless Steel Plate Flanges are designed to withstand high temperatures and pressures commonly found in industrial processes. Their strength and stability enable them to handle demanding operating conditions without compromising performance.

Versatility: EN1092-01 Stainless Steel Plate Flanges are available in a wide range of sizes, pressure ratings, and material grades. This versatility allows them to be used in diverse industries and applications, accommodating specific requirements and standards.

Hygienic Properties: In industries such as food and beverage or pharmaceuticals, maintaining cleanliness and hygiene is crucial. EN1092-01 Stainless Steel Plate Flanges, being made of stainless steel, possess excellent hygienic properties. They are easy to clean, resist bacterial growth, and comply with stringent sanitary standards.

Longevity and Cost-effectiveness: Due to their robust construction and corrosion resistance, EN1092-01 Stainless Steel Plate Flanges have a long service life. Choosing high-quality flanges reduces the need for frequent replacements, minimizing downtime and overall costs.

Applications of EN1092-01 Stainless Steel Plate Flanges:

En1092-01 Stainless Steel Plate flanges serve a variety of purposes in connecting and sealing off different parts of a system. They are commonly used to join pipes together, but can also be employed in other applications, such as connecting various components of a system or sealing off specific sections when required. For instance, plate flanges may be utilized for joining metal pipes or connecting two sections of a pipe. Additionally, they can be deployed for creating a barrier between two pieces of metal that need to remain separated. Moreover, they can be utilized for joining plastic pipes or even for connecting different parts of an air conditioning or heating unit.

Oil and gas industry: Plate flanges are commonly used in oil and gas pipeline systems, including transportation, processing, and storage equipment. They can withstand the working requirements of high pressure and high temperature, while providing reliable sealing performance.

Chemical industry: In chemical plants and chemical processing industries, plate flanges are widely used in various fluid handling equipment, such as reactors, distillation towers, heat exchangers, etc. They have corrosion resistance and are suitable for handling various corrosive media.

Power industry: In power plants and power transmission and distribution systems, plate flanges are usually used to connect pipelines, valves, and equipment. They can withstand the requirements of high pressure, high temperature, and high flow rate, ensuring the safety and reliable operation of the power system.

Wastewater treatment and environmental protection industry: In wastewater treatment facilities and environmental engineering, plate flanges are used to connect sewage pipelines, exhaust systems, and treatment equipment. They have good sealing performance and corrosion resistance, suitable for handling wastewater and pollutants.

Pharmaceutical and food industry: In the pharmaceutical and food processing fields, plate flanges are widely used in various production equipment and pipeline systems. They meet hygiene standards and can meet the special requirements for product purity and hygiene.

It is necessary to select the appropriate European standard flanges based on specific projects and requirements, ensuring compliance with relevant standards and specifications, and meeting the requirements of specific industries.
