Product Details
Place of Origin: Xi'an, Shaanxi Province, China
Brand Name: PeterTrade(PT)
Payment & Shipping Terms
Minimum Order Quantity: 1-10 Pieces
Price: negotiable
Packaging Details: Wooden Case,plywood Case,pallet Etc.
Delivery Time: about 15-45 days, accordingly
Payment Terms: D/A, T/T, L/C,D/P
Supply Ability: 100-200 Ton/Tons Per Month
Product Type: |
Steel Hub Flanges |
Standard: |
AWWA C207 |
Material: |
Carbon Steel Flanges/Stainless Steel Flanges |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Manufacturing Methods: |
Casting, Forging, Casting And Forging, Medium Plate Cutting, Casting |
Size: |
NPS 4 To NPS 96 |
Pressure: |
Class E(275 PSI) |
Application: |
Waterwork Services |
Product Type: |
Steel Hub Flanges |
Standard: |
AWWA C207 |
Material: |
Carbon Steel Flanges/Stainless Steel Flanges |
Surface Treatment: |
Black Painting / Anti Rust Oil / Hot Dip Galvanized |
Manufacturing Methods: |
Casting, Forging, Casting And Forging, Medium Plate Cutting, Casting |
Size: |
NPS 4 To NPS 96 |
Pressure: |
Class E(275 PSI) |
Application: |
Waterwork Services |

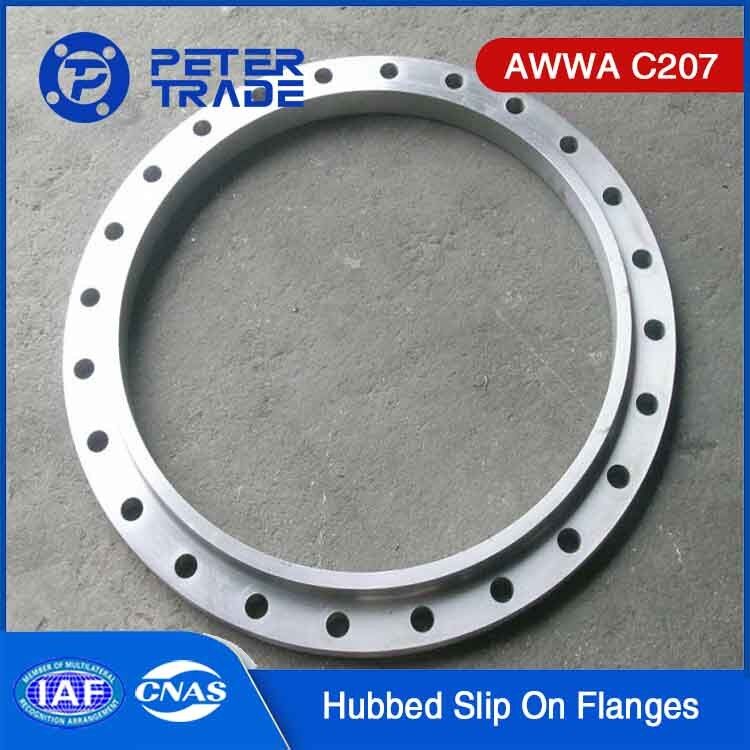

AWWA C207 Standard Steel Hub Flanges Class E(275 PSI) for Waterwork Services
Introduction:
We are delighted to introduce our company, Shaanxi Peter International Trade Co., Ltd, as a leading manufacturer and supplier of AWWA C207 Steel Hub Flanges. With a rich experience of over 20 years in the industry, we have built a strong reputation for delivering flanges of exceptional quality that comply with the highest standards set by the AWWA C207 standard.
Our range of AWWA C207 Steel Hub Flanges includes different classes to meet various pressure requirements. Whether you need Class D or Class E flanges, we have you covered. Our flanges are available in a wide range of sizes, starting from 4" and extending to larger dimensions, ensuring compatibility with different pipe sizes and applications.
As a customer-centric company, we strive to exceed expectations by providing excellent service, timely delivery, and competitive pricing. Our dedicated team of experts is always ready to assist you in selecting the right flanges for your specific requirements.
When you choose Shaanxi Peter International Trade Co., Ltd as your supplier of AWWA C207 Steel Hub Flanges, you can be confident in receiving products of the highest quality, backed by exceptional customer support. Contact us today to discuss your flange needs and experience the excellence we deliver in every aspect of our business.
Description of AWWA C207 Steel Hub Flanges:
AWWA C207 is a standard in the United States of America that defines the requirements for steel pipe flanges used in waterworks service. AWWA stands for "American Water Works Association".
AWWA C207 provides specifications for steel hub flanges, which are available in Class D and Class E. Unlike steel ring flanges, steel hub flanges have an extended hub that reinforces the flange and facilitates welding. For AWWA C207 Class D steel hub flanges, the working pressure limit at water service temperature is 175 psi for sizes ranging from 4″ to 12″ and 150 psi for sizes larger than 12″. The maximum allowable pressure, whether it be a test or transient pressure, can be as high as 260 psi for Class D steel hub flanges in sizes from 4″ to 12″ and up to 225 psi for Class D steel hub flanges larger than 12″. The outside diameter and drilling pattern of these flanges are consistent with those of Class 125 cast-iron flanges (ASME B16.1), and for sizes 24″ and smaller, they also match the steel flange standard of ASME B16.5 Class 150.
According to the AWWA C207 standard, the working pressure limit for Class E steel hub flanges at water service temperature is 275 psi, and the maximum pressure (test or transient) allowed can be up to 412.5 psi. These steel hub flanges are typical slip-on flanges. If requested by the purchaser, welding neck flanges can be designed and manufactured based on this standard. AWWA C207 Class E flanges have the same diameter and drilling pattern as ASME B16.1 Class 125 cast-iron flanges. In sizes 24" and smaller, they also conform to the ASME B16.5 Class 150 standard for steel flanges.
AWWA C207 Steel Hub Flanges Dimensions:
| AWWA C207 Steel Hub Flanges Class E | |||||||||
| Nominal Pipe size | Outside Diameter | Diameter at base of Hub | Thickness | Bore | Length | Drilling |
Weight (lb) |
||
| A | E | T | B | L | Bolt Circle Dia | Number of holes | Dia of holes | ||
| 4 | 228.6 | 134.9 | 23.8 | 116.1 | 33.3 | 190.5 | 8 | 19.1 | 13 |
| 5 | 254.0 | 163.5 | 23.8 | 143.8 | 36.5 | 215.9 | 8 | 22.2 | 14 |
| 6 | 279.4 | 192.1 | 25.4 | 170.7 | 39.7 | 241.3 | 8 | 22.2 | 17 |
| 8 | 342.9 | 246.1 | 28.6 | 221.5 | 44.5 | 298.5 | 8 | 22.2 | 28 |
| 10 | 406.4 | 304.8 | 30.2 | 276.4 | 49.2 | 362.0 | 12 | 25.4 | 37 |
| 12 | 482.6 | 365.1 | 31.8 | 327.2 | 55.6 | 431.8 | 12 | 25.4 | 59 |
| 14 | 533.4 | 400.1 | 34.9 | 360.4 | 57.2 | 476.3 | 12 | 28.6 | 78 |
| 16 | 596.9 | 457.2 | 36.5 | 411.2 | 63.5 | 539.8 | 16 | 28.6 | 101 |
| 18 | 635.0 | 504.8 | 39.7 | 462.0 | 68.3 | 577.9 | 16 | 31.8 | 110 |
| 20 | 698.5 | 558.8 | 42.9 | 512.8 | 73.0 | 635.0 | 20 | 31.8 | 139 |
| 22 | 749.3 | 609.6 | 46.0 | 563.6 | 79.4 | 692.2 | 20 | 34.9 | 162 |
| 24 | 812.8 | 663.6 | 48.2 | 614.4 | 82.6 | 749.3 | 20 | 34.9 | 197 |
| 26 | 870.0 | 723.9 | 50.8 | 665.2 | 85.7 | 806.5 | 24 | 34.9 | 235 |
| 28 | 927.1 | 781.1 | 52.4 | 716.0 | 87.3 | 863.6 | 28 | 34.9 | 269 |
| 30 | 984.3 | 831.9 | 54.0 | 766.8 | 88.9 | 914.4 | 28 | 34.9 | 303 |
| 32 | 1060.5 | 889.0 | 57.2 | 817.6 | 92.1 | 977.9 | 28 | 41.3 | 375 |
| 34 | 1111.3 | 939.8 | 58.7 | 868.4 | 93.7 | 1028.7 | 32 | 41.3 | 401 |
| 36 | 1168.4 | 997.0 | 60.3 | 919.2 | 95.3 | 1085.9 | 32 | 41.3 | 452 |
| 38 | 1238.3 | 1060.5 | 60.3 | 970.0 | 95.3 | 1149.4 | 32 | 41.3 | 528 |
| 40 | 1289.1 | 1111.3 | 63.5 | 1020.8 | 98.4 | 1200.2 | 36 | 41.3 | 573 |
| 42 | 1346.2 | 1168.4 | 66.7 | 1071.6 | 101.6 | 1257.3 | 36 | 41.3 | 648 |
| 44 | 1403.4 | 1219.2 | 66.7 | 1122.4 | 101.6 | 1314.5 | 40 | 41.3 | 688 |
| 46 | 1454.2 | 1270.0 | 68.3 | 1173.2 | 103.2 | 1365.3 | 40 | 41.3 | 733 |
| 48 | 1511.3 | 1327.2 | 69.9 | 1224.0 | 104.8 | 1422.4 | 44 | 41.3 | 799 |
| 50 | 1568.5 | 1378.0 | 69.9 | 1274.8 | 104.8 | 1479.6 | 44 | 47.6 | 827 |
| 52 | 1625.6 | 1435.1 | 73.0 | 1325.6 | 108.0 | 1536.7 | 44 | 47.6 | 922 |
| 54 | 1682.8 | 1492.3 | 76.2 | 1376.4 | 111.1 | 1593.9 | 44 | 47.6 | 1024 |
| 60 | 1854.2 | 1657.4 | 79.4 | 1528.8 | 114.3 | 1759.0 | 52 | 47.6 | 1253 |
| 66 | 2032.0 | 1816.1 | 85.7 | 1681.2 | 123.8 | 1930.4 | 52 | 47.6 | 1623 |
| 72 | 2197.1 | 1993.9 | 88.9 | 1833.6 | 127.0 | 2095.5 | 60 | 47.6 | 1922 |
| 78 | 2362.2 | 2146.3 | 98.4 | 1986.0 | 136.5 | 2260.6 | 64 | 54.0 | 2279 |
| 84 | 2533.7 | 2298.7 | 98.4 | 2138.4 | 136.5 | 2425.7 | 64 | 54.0 | 2586 |
| 90 | 2705.1 | 2457.5 | 108.0 | 2290.8 | 146.1 | 2590.8 | 68 | 61.9 | 3061 |
| 96 | 2876.6 | 2609.9 | 108.0 | 2443.2 | 146.1 | 2755.9 | 68 | 61.9 | 3432 |
The Material Requirement of AWWA C207 Steel Hub Flanges:
According to AWWA C207 standard, the material used for manufacturing steel hub flanges must meet specific requirements. The flanges shall be made of carbon steel or low-alloy steel forgings, castings, or plates.
The chemical composition of the steel material used for manufacturing AWWA C207 steel hub flanges shall conform to the requirements specified in ASTM A105, ASTM A181, ASTM A350, or ASTM A694. The mechanical properties of the steel material shall also conform to the requirements specified in the respective ASTM standards.
Additionally, the steel material must be free from defects and have a smooth surface finish. The flanges should be free from cracks and other defects that could impair their serviceability.
It is important to note that the material requirements may vary depending on the specific class and size of the hub flange. Therefore, it is crucial to refer to the AWWA C207 standard for detailed information on the material requirements for the particular hub flange being manufactured.
Features of AWWA C207 Steel Hub Flanges:
AWWA C207 Steel Hub Flanges have several features that make them suitable for a variety of water utility applications:
Extended Hub Design: AWWA C207 Steel Hub Flanges feature an extended hub design that provides additional strength and reinforcement to the connection. This design helps distribute the load evenly and improves the overall stability and integrity of the joint.
Slip-On Installation: These flanges are designed for slip-on installation, which simplifies the assembly process. The slip-on feature allows for easy alignment of the flange with the pipe, reducing installation time and effort.
Pressure Ratings: AWWA C207 Steel Hub Flanges are available in different pressure classes, ranging from Class B to Class F. These classes have specific pressure rating limits, ensuring compatibility with different working conditions.
Standard Dimensions: These flanges have standard dimensions and drilling patterns that conform to ASME B16.5 and ASME B16.47 standards. This standardization allows for interchangeability and compatibility with other components and systems.
Materials: AWWA C207 Steel Hub Flanges are typically made from carbon steel or stainless steel, depending on the specific application requirements. These materials offer excellent strength, corrosion resistance, and durability, ensuring long-term performance in water utility environments.
Quality Assurance: These flanges undergo rigorous quality control measures during the manufacturing process. This includes material testing, dimensional inspection, and pressure testing to ensure compliance with the highest standards and specifications.
Compatibility: AWWA C207 Steel Hub Flanges are compatible with a wide range of pipes, fittings, valves, and equipment used in water utility systems. Their standardized dimensions and drilling patterns allow for easy integration and connection with other components.
Longevity: With their robust construction and high-quality materials, AWWA C207 Steel Hub Flanges are designed to withstand the demanding conditions of water utility applications. They offer long-lasting performance and resistance to corrosion, ensuring reliable operation over an extended service life.
In summary, the features of AWWA C207 Steel Hub Flanges, such as their extended hub design, slip-on installation, pressure ratings, standard dimensions, materials, quality assurance, compatibility, and longevity, make them a reliable and suitable choice for a variety of water utility applications.
Applicatons of AWWA C207 Steel Hub Flanges:
AWWA C207 Steel Hub Flanges are specifically designed for use in waterworks service applications. These flanges are commonly used in water treatment plants, pumping stations, and pipeline systems that transport water for domestic, commercial, and industrial uses. They are suitable for use in both above-ground and below-ground installations.
Some of the specific applications of AWWA C207 Steel Hub Flanges include connecting steel pipes in water distribution systems, joining water mains to pump stations or reservoirs, and connecting water treatment equipment such as filters and clarifiers to the piping system. Additionally, these flanges can be used in fire protection systems, irrigation systems, and wastewater treatment plants.
The high-quality materials and construction of these flanges ensure their durability and reliability in harsh operating conditions. As such, they are an ideal choice for critical water supply systems where safety and reliability are paramount concerns.
AWWA C207 Steel Hub Flanges are ideal for use in applications that require a durable and reliable connection method. They offer excellent resistance to corrosion, high temperatures, and pressure, making them suitable for a wide range of waterworks and industrial applications.
