ASME B16.5 Class 150 A105 Carbon Steel Blind Flange BLRF Raised Face 1/2'' To 24'' For Pharmaceutical and Food Industry

ANSI/ASME B16.5 Carbon Steel Blind Flanges Class 150LB BLRF for Industrial Applications

Introduction:

As a well-established and respected firm with extensive industry experience, Shaanxi Peter International Trade Co., Ltd. is proud to introduce our comprehensive range of ANSI B16.5 Class 150 Blind Flanges. With a strong track record of delivering superior products and services, we are committed to providing top-notch flanges that meet the highest standards of quality and reliability.

Our ANSI B16.5 Class 150 Blind Flanges are designed to excel in various industrial applications, offering exceptional performance and durability. Crafted from premium materials such as carbon steel, stainless steel, and alloy steel, these flanges are built to withstand demanding operating conditions and ensure long-term integrity in piping systems.

We understand the importance of versatility, which is why our ANSI B16.5 Class 150 Blind Flanges are available in a wide range of sizes, from 1/2" to 24" (DN15-DN600), catering to diverse piping requirements across different industries. Additionally, they adhere to the Class 150 pressure rating, making them suitable for applications with a maximum pressure of 150 pounds per square inch.

Description of Carbon Steel Blind Flanges:

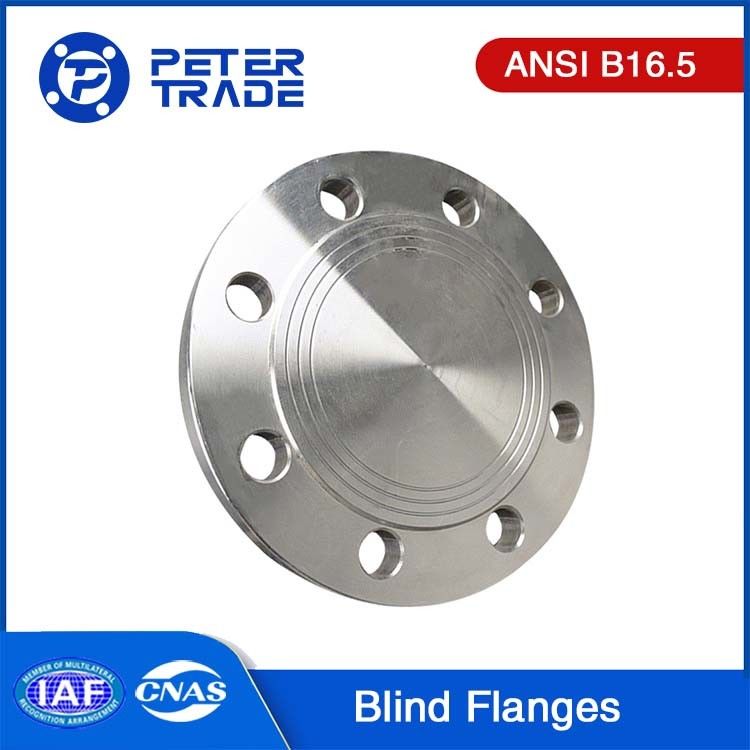

A carbon steel blind flange is a type of pipe flange that is solid and does not have a bore or an interior opening. It is primarily used to cap off the end of a pipeline or to close off a connection point. Carbon Steel Blind flanges are typically installed at the end of a line or at a point where future modifications may be required, such as the addition of valves or fittings. They provide a solid and secure termination point for the pipeline, preventing any flow or leakage. Carbon Steel Blind flanges are commonly made of steel and are available in various sizes and pressure ratings to suit different application requirements.

ANSI/ASME B16.5 Blind Flange Dimensions:

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.

Features of ANSI/ASME Class 150 Blind Flanges:

Blind flanges, also known as blanking flanges, are solid disks used to block off a pipeline or to create a stop. They are commonly used for pressure testing the flow of liquid or gas through a pipe or vessel. Here are some key characteristics and applications of blind flanges:

Design: Blind flanges are typically round plates with bolt holes around the perimeter for easy installation and removal. The bolt holes allow the flange to be securely attached to the mating flange or nozzle using bolts.

Sealing: Blind flanges are designed to provide a seal at the end of a piping system. They effectively block the flow of fluid or gas and prevent leakage from the open end of the pipe.

Pressure Testing: Blind flanges are often used during hydrostatic or pneumatic pressure testing of pipelines and vessels. By installing a blind flange at the end of the pipe, pressure can be safely applied to test the integrity of the system.

Maintenance and Inspection: During maintenance or inspection of a piping system, blind flanges can be used to seal off sections of the pipeline, allowing work to be carried out on specific segments without interrupting the overall flow.

Customization: Blind flanges can be manufactured in various sizes, pressure ratings, and materials to suit specific application requirements. They are available in different standards such as ASME/ANSI, API, DIN, and others.

Material Options: Blind flanges are made from a variety of materials including carbon steel, stainless steel, alloy steel, and other alloys, depending on the application and the properties required for the specific operating conditions.

Advantages of ANSI/ASME B16.5 Class 150 Carbon Steel Blind Flanges:

The ANSI/ASME B16.5 Class 150 Carbon Steel Blind Flanges offer several advantages for use in various industrial applications. Some of the key advantages include:

Cost-Effectiveness: Carbon steel blind flanges are generally more affordable compared to flanges made from other materials, such as stainless steel or alloy steel. This cost-effectiveness makes them a practical and economical choice for many applications without compromising on quality and performance.

Corrosion Resistance: Carbon steel blind flanges are often coated or treated to enhance their corrosion resistance. This helps protect the flanges from the effects of moisture, chemicals, and other corrosive substances, ensuring their longevity and reliability in challenging environments.

Strength and Durability: Carbon steel is known for its high strength and durability, making it an excellent choice for blind flanges. These flanges can withstand high pressures and provide long-lasting performance in demanding conditions, ensuring reliable operation over time.

Versatility: Carbon steel blind flanges are suitable for use in various industries and applications, including oil and gas pipelines, petrochemical plants, power generation facilities, water treatment systems, and more. Their versatility makes them a popular choice for a wide range of projects with different requirements.

Ease of Installation: Blind flanges are easy to install and provide a secure closure for the end of a pipe or valve. They can be welded or bolted into place, offering flexibility and ease of installation in different piping systems.

Availability and Standardization: ANSI/ASME B16.5 Class 150 Carbon Steel Blind Flanges are widely available in various sizes and dimensions, manufactured in accordance with industry standards. This availability and standardization ensure compatibility, ease of procurement, and simplified inventory management.

These advantages collectively make ANSI/ASME B16.5 Class 150 Carbon Steel Blind Flanges a reliable and practical choice for sealing off pipes or valves in low-pressure applications, providing cost-effective, corrosion-resistant, and versatile solutions for a wide range of industrial needs.

Grades of Carbon Steel Flanges:

American standard carbon steel flanges are flanges made of carbon steel and are widely used in industries such as petroleum, chemical, natural gas, shipbuilding, construction, and water conservancy. Its carbon steel grades are usually divided into the following parts:

1.Q235: Q235 is a commonly used carbon structural steel grade specified in the Chinese national standard GB/T 700. It is often used in general engineering structures and manufacturing industries. In carbon steel flanges, Q235 material is commonly used for pipeline systems operating at low pressure, low temperature, and non-critical stress environments.

2.A105: A105 is a carbon steel material specified in the American ASTM standard, complying with ASTM A105/A105M requirements. A105 material has good weldability and mechanical properties, making it suitable for use in a wide temperature range from low to high temperatures. It is commonly used for pipeline systems and valve connections under high temperature and high-pressure conditions.

3.A350 LF2: A350 LF2 is also a carbon steel material specified in the ASTM standard, complying with ASTM A350/A350M requirements. LF2 indicates low-temperature service, and this material has good low-temperature toughness and crack resistance. It is commonly used for pipeline systems and valve connections under low-temperature conditions.

4.A694 F42/F52/F60/F65/F70: These material grades are specified in the ASTM A694 standard for carbon steel materials used in high-strength, low-temperature, or normal temperature high-pressure pipeline systems and valve connections. Different grades of materials have different strengths and corrosion resistance properties, suitable for various working conditions.

5.ASTM A181 Gr.1/Gr.2: These carbon steel flange material grades are suitable for pressure vessels, valves, and pipeline fittings under low pressure and low temperature conditions. They have good machinability and mechanical performance.

6.ASTM A516 Gr.70: Gr.70 is a commonly used medium carbon steel grade, known for its good weldability and machinability, suitable for manufacturing flanges and pipe fittings, among others.

7.A216 WCB: A216 WCB is a carbon steel casting material specified in the American ASTM standard, complying with ASTM A216/A216M requirements. WCB stands for cast carbon steel, and it is commonly used for carbon steel flanges that require casting in general engineering structures and manufacturing industries.

These material grades mentioned above are only a part of the commonly used ones, and there are other material grades in practical applications. When selecting the material grade for carbon steel flanges, it is necessary to consider engineering requirements, temperature, pressure, medium, and the requirements of relevant standards to ensure that the flange material meets the corresponding performance and safety requirements.

Applications of ASME B16.5 Class 150 Carbon Steel Blind Flanges:

ASME B16.5 Class 150 carbon steel blind flanges have a wide range of applications in various industries due to their specific design and capabilities. Some common applications include:

Petrochemical Industry: Carbon steel blind flanges are often used in the petrochemical industry for sealing off the ends of pipelines, tanks, and pressure vessels. They provide a secure and leak-proof termination point, which is essential for containing hazardous materials and maintaining system integrity.

Oil and Gas Industry: These blind flanges are utilized in oil and gas facilities for closing off pipe ends during maintenance, repair, or decommissioning activities. They are also employed in pipeline systems to create terminations that can be easily modified or reopened for future expansions.

Power Generation: In power plants, ASME B16.5 Class 150 carbon steel blind flanges are employed in steam, water, and gas piping systems. They serve as closure devices for pipe terminations and provide a means to isolate sections of the piping network during maintenance and repairs.

Chemical Processing: Carbon steel blind flanges are used in chemical processing facilities to seal openings and provide a secure termination point for pipelines, reactors, and storage vessels. They help prevent leaks and maintain the integrity of the system when handling corrosive or hazardous chemicals.

Water Treatment and Distribution: These flanges find application in water treatment facilities and distribution systems for capping off unused pipe ends, creating blockages, or providing access points for future expansion or modification of the infrastructure.

Overall, ASME B16.5 Class 150 carbon steel blind flanges are versatile components that play a crucial role in creating secure terminations, facilitating maintenance, and ensuring the integrity of piping systems across a wide range of industrial applications.
