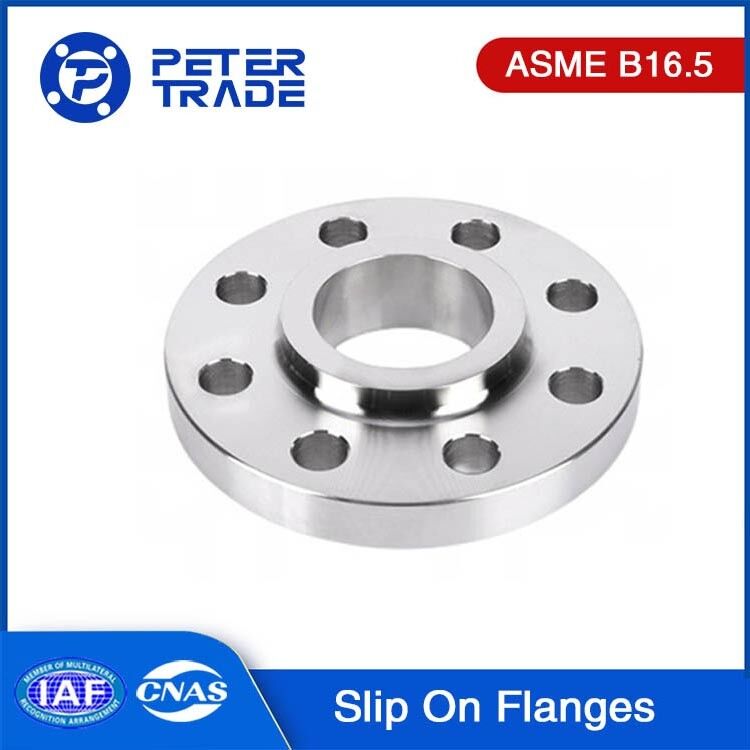

Slip On Pipe Flanges ASME B16.5 Class 600LB Carbon Steel A105 SORF For Chemical and Petrochemical Industry

ANSI/ASME B16.5 Carbon Steel Slip On Flanges Class 600LB SORF

Introduction:

Our company, Shaanxi Peter International Trade Co., Ltd, has a strong business background for over 20 years. With extensive experience in manufacturing ASME B16.5 Class 600 carbon steel slip on flanges, we have established ourselves as a reliable and trustworthy supplier in the industry.

ASME B16.5 Class 600 carbon steel slip on flanges are designed to meet the specifications and standards set by the American Society of Mechanical Engineers (ASME). These flanges are known for their high quality and superior performance in demanding applications.

We take pride in our advanced production facilities and skilled workforce, which enable us to produce ASME B16.5 Class 600 carbon steel slip on flanges that adhere to the highest industry standards. Our rigorous quality control processes ensure that each flange meets the required specifications, providing customers with exceptional reliability and durability.

Furthermore, our commitment to customer satisfaction drives us to offer customized solutions to meet specific project requirements. Whether it's for petrochemical, oil and gas, or other industrial applications, our ASME B16.5 Class 600 carbon steel slip on flanges deliver reliable sealing and excellent performance.

ANSI/ASME B16.5 Class 600 Carbon Steel Slip On Flanges:

ASME B16.5 Class 600 carbon steel slip on flanges are flange products that comply with the standards of the American Society of Mechanical Engineers (ASME). They are typically used for pipe connections in high-pressure and high-temperature environments, making them particularly suitable for demanding industrial applications. This type of flange features a slip-on design, which facilitates the installation and disassembly of pipeline systems, effectively reducing maintenance and repair time costs. The design of ASME B16.5 Class 600 carbon steel slip on flanges meets rigorous engineering requirements, ensuring reliable and sealed pipe connections while withstanding the challenges of high pressure and high temperature environments. These flanges are commonly used in industries such as petroleum and chemical processing, power generation, paper production, and other industrial sectors that require high-standard pipe connections.

The American Standard Slip on Flange is a commonly used pipe connection flange that conforms to US standards. It is typically made of carbon steel material and manufactured according to relevant standards set by ANSI (American National Standards Institute).

Slip on flange is typically made of carbon steel. Carbon steel can be divided into three categories based on its carbon content: low carbon steel, medium carbon steel, and high carbon steel.

In practical applications, low carbon steel is often used to manufacture structural components and mechanical parts. It has good weldability and machinability, but relatively lower strength and hardness.

Medium carbon steel has higher strength and hardness compared to low carbon steel. It is suitable for manufacturing parts that bear larger torque and loads.

High carbon steel has even higher hardness and strength, but its plasticity and toughness are reduced. It is used for manufacturing parts with high wear resistance requirements.

For slip on flanges, an appropriate carbon steel material is usually chosen based on the specific working environment and requirements. For example, slip on flanges operating in high temperature and high pressure environments may be made of heat-resistant and corrosion-resistant high-temperature alloy materials.

ANSI/ASME B16.5 Slip On Flange Dimensions:

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.

3.For sizes 1/2’’-3.1/2’’, Dimensions of ASME B16.5 Class 600 Slip On Flanges are the same as ASME B16.5 Class 400 Slip On Flanges.

Grades of Carbon Steel Flanges:

American standard carbon steel flanges are flanges made of carbon steel and are widely used in industries such as petroleum, chemical, natural gas, shipbuilding, construction, and water conservancy. Its carbon steel grades are usually divided into the following parts:

1.Q235: Q235 is a commonly used carbon structural steel grade specified in the Chinese national standard GB/T 700. It is often used in general engineering structures and manufacturing industries. In carbon steel flanges, Q235 material is commonly used for pipeline systems operating at low pressure, low temperature, and non-critical stress environments.

2.A105: A105 is a carbon steel material specified in the American ASTM standard, complying with ASTM A105/A105M requirements. A105 material has good weldability and mechanical properties, making it suitable for use in a wide temperature range from low to high temperatures. It is commonly used for pipeline systems and valve connections under high temperature and high-pressure conditions.

3.A350 LF2: A350 LF2 is also a carbon steel material specified in the ASTM standard, complying with ASTM A350/A350M requirements. LF2 indicates low-temperature service, and this material has good low-temperature toughness and crack resistance. It is commonly used for pipeline systems and valve connections under low-temperature conditions.

4.A694 F42/F52/F60/F65/F70: These material grades are specified in the ASTM A694 standard for carbon steel materials used in high-strength, low-temperature, or normal temperature high-pressure pipeline systems and valve connections. Different grades of materials have different strengths and corrosion resistance properties, suitable for various working conditions.

5.ASTM A181 Gr.1/Gr.2: These carbon steel flange material grades are suitable for pressure vessels, valves, and pipeline fittings under low pressure and low temperature conditions. They have good machinability and mechanical performance.

6.ASTM A516 Gr.70: Gr.70 is a commonly used medium carbon steel grade, known for its good weldability and machinability, suitable for manufacturing flanges and pipe fittings, among others.

7.A216 WCB: A216 WCB is a carbon steel casting material specified in the American ASTM standard, complying with ASTM A216/A216M requirements. WCB stands for cast carbon steel, and it is commonly used for carbon steel flanges that require casting in general engineering structures and manufacturing industries.

These material grades mentioned above are only a part of the commonly used ones, and there are other material grades in practical applications. When selecting the material grade for carbon steel flanges, it is necessary to consider engineering requirements, temperature, pressure, medium, and the requirements of relevant standards to ensure that the flange material meets the corresponding performance and safety requirements.

Competitive Advantages of Carbon Steel Slip On Flanges:

The American Standard Slip on Flange has several features and advantages:

Easy installation: The design of the slip on flange makes it easy to install and dismantle, making it suitable for situations that require frequent maintenance.

Low cost: Compared to other types of flanges, the slip on flange's cost is relatively low, making it an affordable choice.

Wide applicability: The American Standard Slip on Flange is suitable for many different piping systems, including those operating at low pressure and normal temperature conditions.

High reliability: With strict design and manufacturing standards, the American Standard Slip on Flange exhibits good sealing and connection reliability when in use.

High standardization: The slip on flange conforms to ANSI standards, ensuring a high degree of standardization and allowing for perfect matching with other piping and fittings that conform to the same standard.

Applications of ASME B16.5 Class 600 Carbon Steel Slip On Flanges:

Carbon steel slip on flanges are a common type of pipeline connection component made from carbon steel. They have many advantages, such as high strength, good corrosion resistance, and relatively low price. Carbon steel slip-on flanges are widely used in many different application areas, including the following:

Petroleum and gas industry: Carbon steel slip on flanges are commonly used in pipeline systems for transporting oil and gas. These pipelines typically transport liquids or gases at high pressures and temperatures, so they require good pressure resistance and sealing performance. Carbon steel slip-on flanges can meet these requirements and are suitable for various oil and gas exploration, processing, and transportation environments.

Chemical industry: In the chemical industry, carbon steel slip on flanges are widely used to connect pipelines in various chemical production and processing processes. These processes may involve corrosive media, high temperature, or high pressure conditions, so materials need to have good corrosion resistance and pressure resistance. The corrosion resistance of carbon steel slip on flanges and their compatibility with other pipeline materials make them a common choice in the chemical industry.

Power plants: Carbon steel slip on flanges are used in power plants to connect key equipment such as boilers, steam pipes, and cooling water systems. These systems typically face high temperature and pressure conditions and require reliable pipeline connections to ensure safe and efficient operation. Carbon steel slip on flanges can meet these requirements and are widely used in thermal power plants, nuclear power plants, and other types of power plants.

Manufacturing industry: In the manufacturing industry, carbon steel slip on flanges are commonly used to connect pipelines in various industrial equipment and machinery. These devices may include chemical equipment, food processing equipment, papermaking machinery, etc. Carbon steel slip on flanges provide a reliable connection method, can withstand high pressures and temperatures, and meet the needs of the manufacturing process.

Carbon steel slip on flanges are pipeline connection components widely used in various industries. They play important roles in the petroleum and gas industry, chemical industry, power plants, and manufacturing industry, providing reliable pipeline connection solutions.
